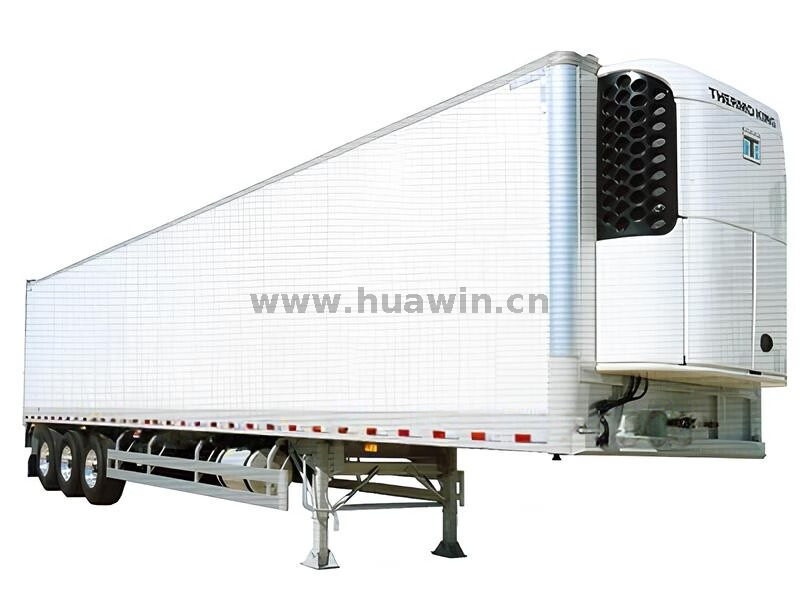

Refrigerated semi trailer is a kind of semi-trailer cargo vehicle used for the transportation of goods with strict temperature requirements (e.g. fresh food, pharmaceuticals, chemicals, etc.). It is equipped with an independent refrigeration system and a good heat-insulating structure,capable of maintaining the low-temperature environment required by the cargo during transportation.
Produce showcases:
● China's best rear loader truck factory
● 30 years of experience on Fecal Suction Truck
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 24 months long guarantee time assurance
| |
| |
Applications:
The Refrigerated semi-trailer is commonly used for fresh food transportation: fruits, vegetables, meat, poultry, dairy products, eggs, etc. The Refrigerated semi-trailer is also used for the transportation of foodstuffs. Transportation of pharmaceuticals: vaccines, plasma, insulin, biological products, etc.; Transportation of chemical and industrial raw materials: some temperature-sensitive chemicals, resins, inks, glues, etc.
| Configuration | Deadweight | 8,800 (+/- 5%) |
| Front wall | 101.6mm | |
| Roof | 100mm | |
| Floor | 63.5 mm | |
| Longitudinal beams | Submerged arc welding beam reinforcement, sub beam reinforcement | |
| Box insulation | BASF polyurethane foam | |
| Side panels | 76.2 mm | |
| Tires | type: 385/65R22.5 | |
| Aluminum Rims | Type: 11.75-22.5 | |
| Axles | 12T*3 sets | |
| Suspension | Triple Axis BPW Air Suspension | |
| Outriggers | jost e100 jost e100 | |
| Traction Pins | 2 JOST ,exchangeable JOST | |
| Brake System | Pneumatic Brake, Dual Chambers, Wilburco Brake Valve | |
| Cold engine | carrier Vector 1550 with power backup | |
| Operating temperature | Temperatures down to -18°C | |
| Electrical system | 24V, LED lamps | |
| Paint | Frame, primer + top coat, polyurethane paint | |
| Spare tire carrier | 2 sets per vehicle | |
| Toolboxes | 1 piece | |
| Others | No warranty for cold engine,Heavy Duty Truck logo on the tail,without phone,without any CIMC logo,LED light with metal anti-theft lampshade,rear door hinge and bolt mounting reinforcement,cold engine fuel tank mounting bracket reinforcement,fuel tank cover with lock | |
