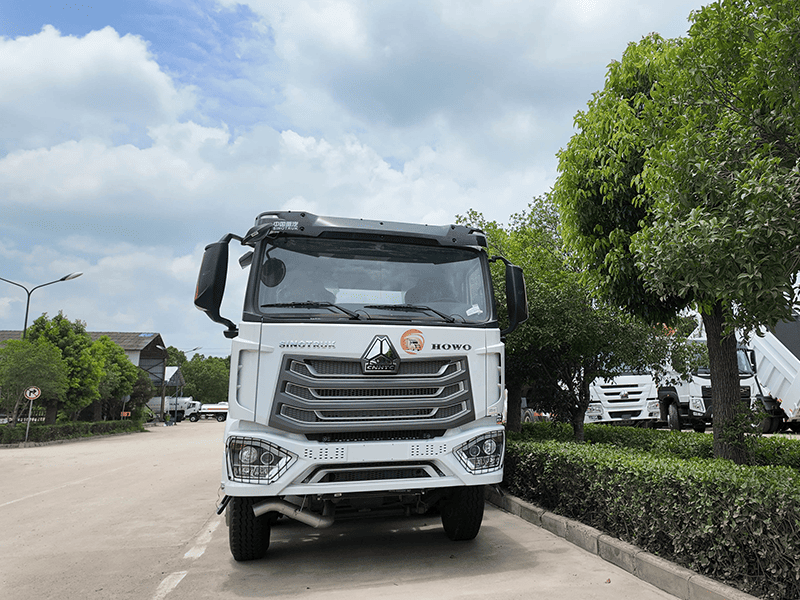

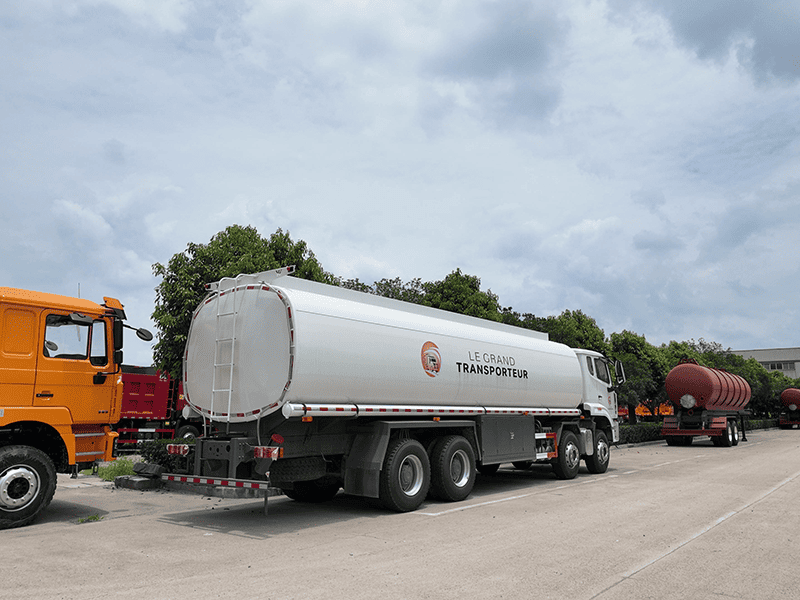

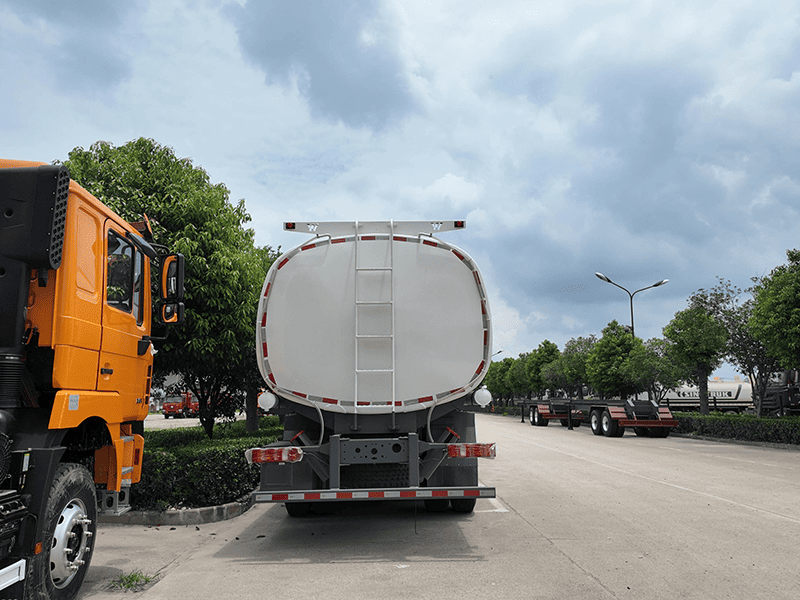

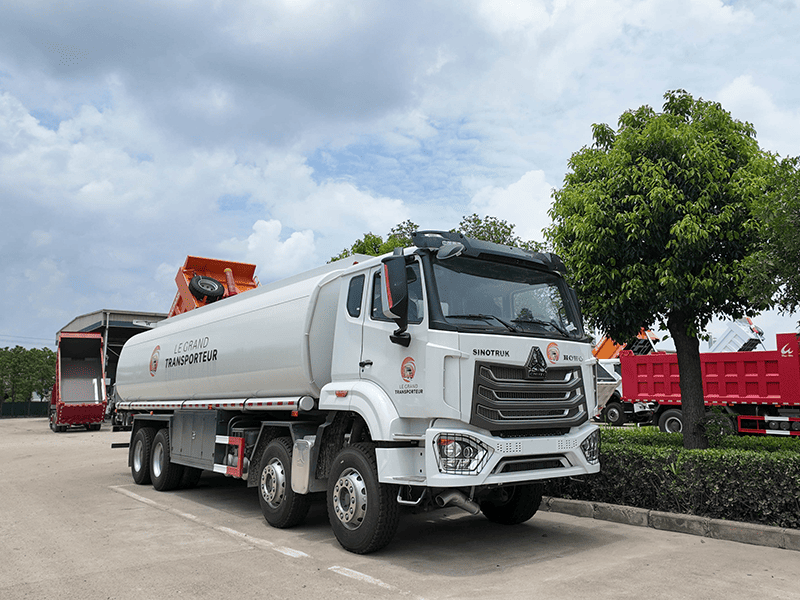

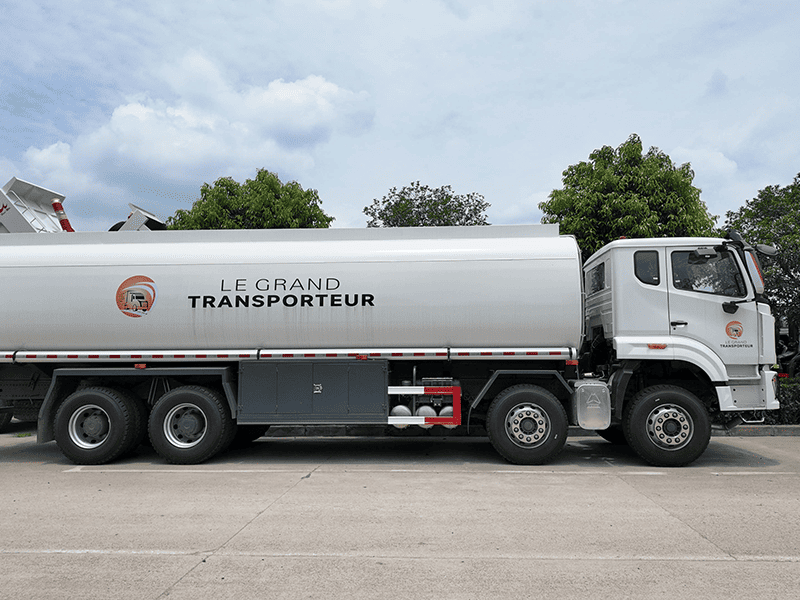

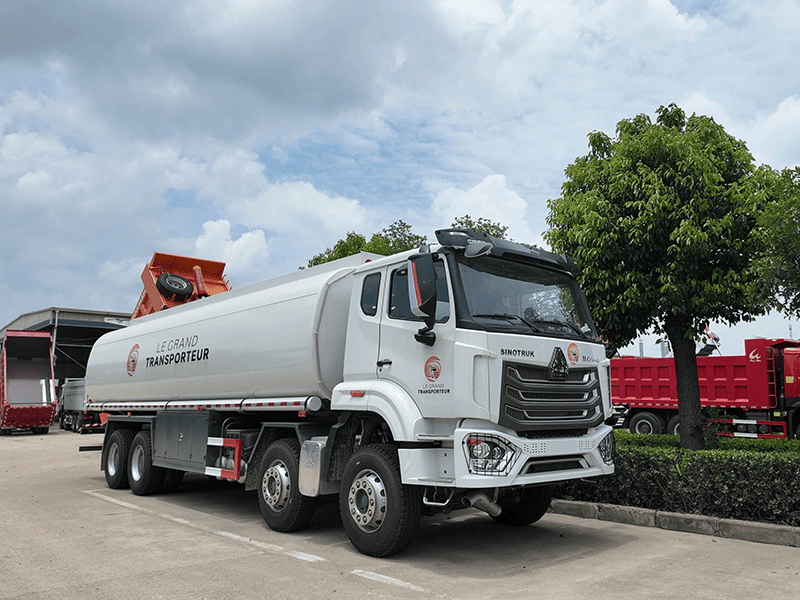

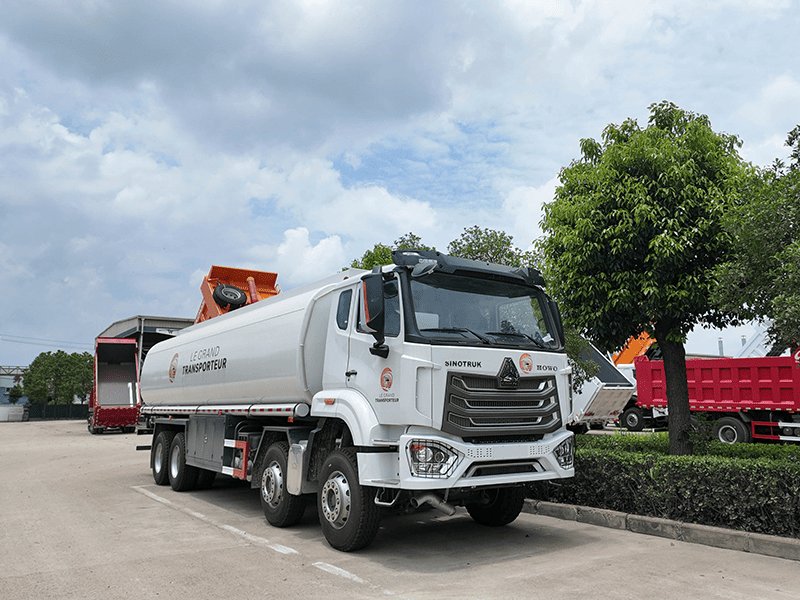

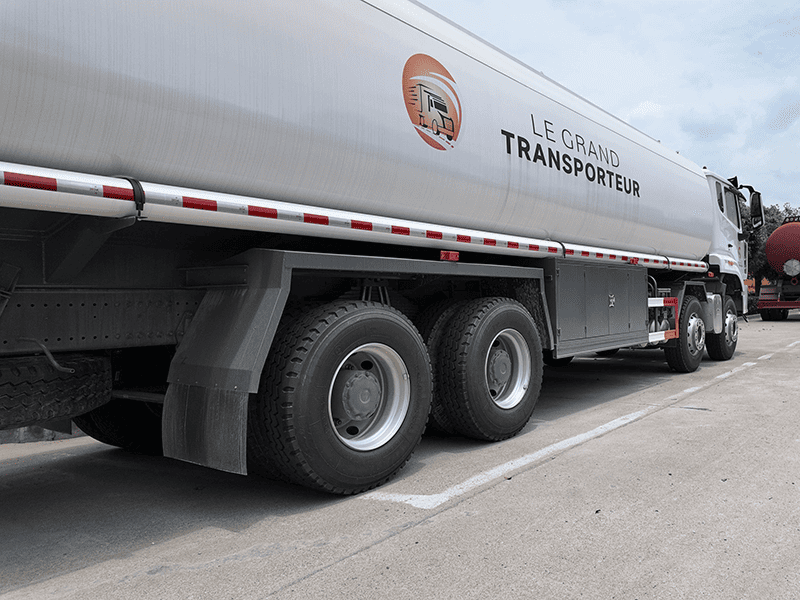

Sinotruk Howo NX 8X4 fuel tanker truck

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

Howo Fuel Tanker Truck-NX-8×4 adopts 6×4 Driving form: three-axle, six-wheel design, double rear drive axles, suitable for medium and long-distance and complex road condition transportation. Strong chassis: HOWO series heavy-duty truck chassis is adopted, with strong carrying capacity, stable structure and high reliability.

Power system of Howo Fuel Tanker Truck-NX-8×4: It is mostly equipped with China National Heavy Duty Truck's own brand, such as MC series diesel engine (e.g. MC11 or MC13), with strong power and optimized fuel consumption. Transmission: Equipped with manual gearbox of Heavy Duty Truck (e.g. HW19710 or HW19712), with smooth shifting and high efficiency.

Applications:

HOWO Fuel Tanker Truck-NX-8×4 has a wide range of uses and is commonly used for transporting gasoline, diesel, kerosene and other refined oil products from refineries to gas stations or transit depots. Equipped with anti-static device, emergency shut-off valve, safety breathing valve, etc., in line with the standard of dangerous goods transportation.

Ceb:

The HOWO Fuel Tanker Truck-NX-8×4 features a high-roof double-berth design, offering spacious interiors that facilitate driver rest and rotation during long-haul transportation. It is ideal for medium to heavy-duty fuel transportation over long distances. The exterior incorporates aerodynamic optimization, not only enhancing aesthetics but also effectively reducing wind resistance and improving fuel efficiency.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

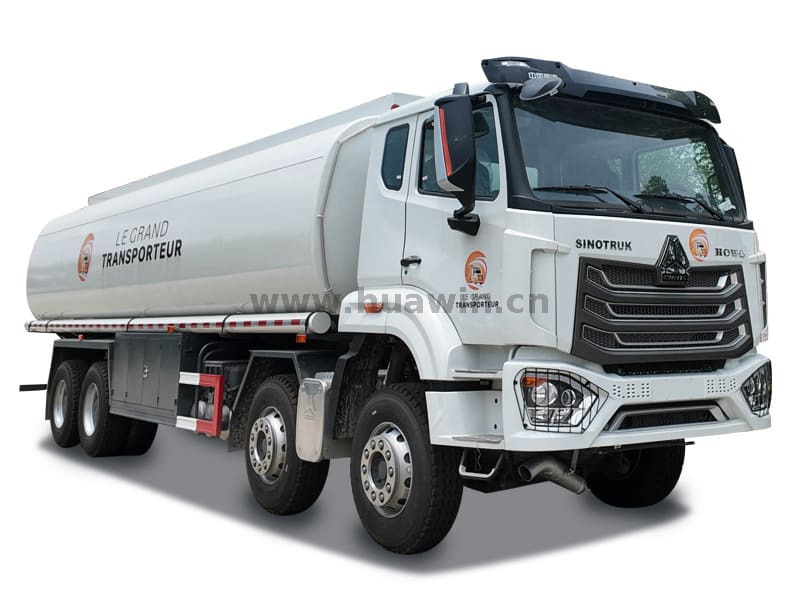

Sinotruk Howo NX 8X4 fuel tanker truck
Core Configuration	Drive Axles	MCX16ZG Dual Rear Axle(Drum)
	Frame	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(10/12)
	Transmission	HW19710 gearbox + HW70 flange pickup
	Engine	WD615.47 Engine
	Cab	HOWO H77L-R cab
Compulsory	Tires	315/80R22.5 tires(mixed tread/18PR)
	Ratios	4.803
	Bumper	High Bumper(Full Metal)
	ABS	Without ABS
	Front Axle	VGD95 front axle(drum)
	Steering	Right-hand Bosch steering wheel
Selectable	Intake system	Engineered air intake system
	(Oil filter) Intercooler protection device	Intercooler protection
	Electric cab lift	Manual cab lift
	Addition of one stage of Parker Fuel Coarse Filter	Yes
	Tail light guards	No
	Center control panel	MP3
	Window curtains	No
	Glass Lifter	Electric glass lifter
	Rearview mirrors	Manual
	Driver's seat	Main Airbag + Secondary Easy Seat
	Air conditioning unit	Air conditioning
	Cabin overhead light fixtures	Overhead single warning light in cab
	Engine	EVB and 71 degree thermostat
	NANO Electric System	NANO electrical system
	Reversing buzzer	Optional reverse buzzer
	Front and rear stabilizer bars	Front and rear stabilizer bars
	Exhaust System	Standard exhaust system
	Rear Tail Lights	Seven-function halogen taillights
	Cab	Classic Edition
	Wheel Option	Regular wheels
	Fuel tank	400L Fuel Tank
Upper Garment	20-square-foot fuel truck top loaded, three bins (7000+7000+6000)L, with Zhengxing fuel dispenser, European standard filling port with dipstick, European standard unloading valve, pneumatic submarine valve, tank thickness: 5.0; tank structure: square and round; tank material: Q235; hydraulic pumps: Velcro 60-25, with top walkway and handrail, with tail climbing ladder, the whole vehicle wax spraying; the rest of the standard equipment

Fuel tank structure and functional characteristics

Large capacity design, high transportation efficiency

The tank volume is typically 20,000 to 35,000 liters (customizable) and can be divided into multiple independent compartments to transport multiple types of oil simultaneously, improving operational efficiency.

High-quality tank material, safe and reliable

High-quality carbon steel Q235B is commonly used, offering high strength and moderate cost. Alternatively, aluminum alloy or stainless steel materials can be selected, which are lightweight and highly corrosion resistant, making them suitable for high-end transportation or coastal/high-temperature regions.
