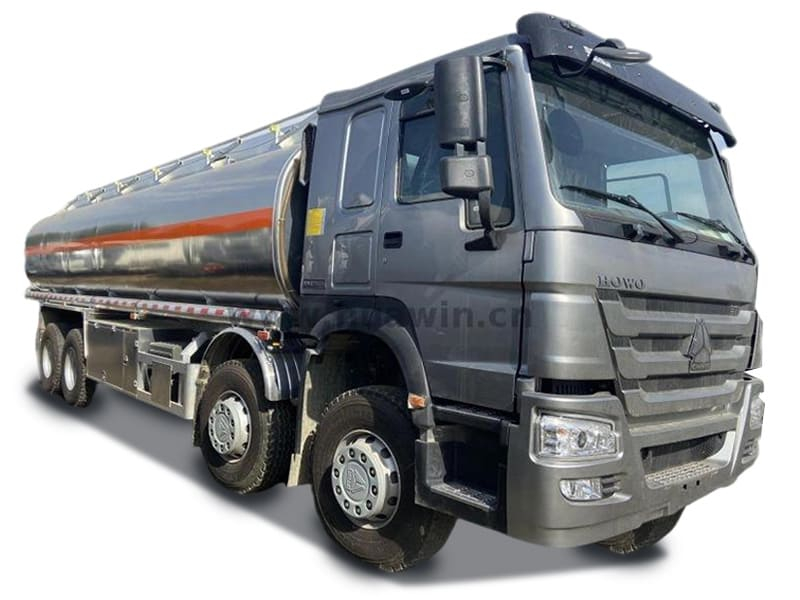

SINOTRUK HOWO 8X4 12 Wheeler Fuel Tanker Truck 30 KL Aluminum Material

Factory Price Diesel Petrol Refueling Oil Transport Tank Truck Load 25000L Sinotruk HOWO 8X4 Gasoline Fuel Tanker Truck with Dispenser
Availability:
Quantity:
  • ZZ1317N5847
  • SINOTRUK HOWO

SINOTRUK HOWO 8X4 Fuel Tanker Truck


微信图片_20220105171529(1)

Specifications


SINOTRUK HOWO 8x4 Fuel Tank 30 CBM

Driving  Type

Left Hand Driving (Right  Hand Driving is optional)

Cabin

HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 380HP, 420HP is optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

ZF power steering, hydraulic steering with power assitance

Front  Axle

HF9, 2x9000  KGS

Steering with doubleT-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing,  central single reduction with hub reduction and with differential locks between  wheels and axles.

Ratio: 4.42

Propeller  Shaft

Double universal joint  propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile  parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all  cold riveted cross members

Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual  circuit compressed air brake

Parking brake (emergency  brake): spring energy, compressed air operating on front shaft and rear  wheels

Auxiliary brake: engine  exhaust brake

Electrics

Operating voltage: 24 V,  negative grounded

Starter: 24 V, 5.4  Kw

Alternator: 3-phase, 28  V, 1500 W

Batteries: 2 x 12 V, 165  Ah

Cigar-lighter, horn,  headlamps, fog lights, brake lights, indicators and reverse  light

Tires

315/80R22.5,  tubeless tires with one spare tire.

Optional: 12.00R20, radial tires.

Tank capacity

25,000L, compartments optional

Body steel Material

Q235. End plate thickness:6mm, tanker body thickness:5mm

Aluminum material optional
