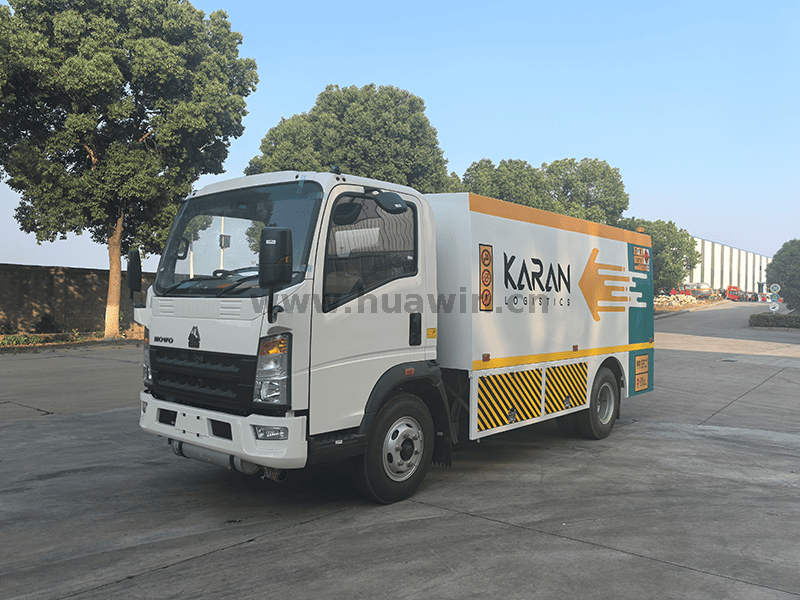

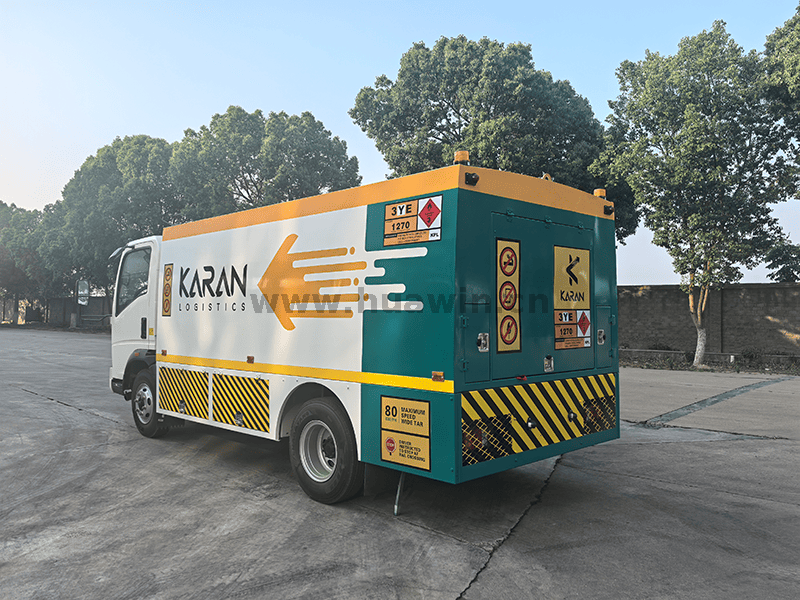

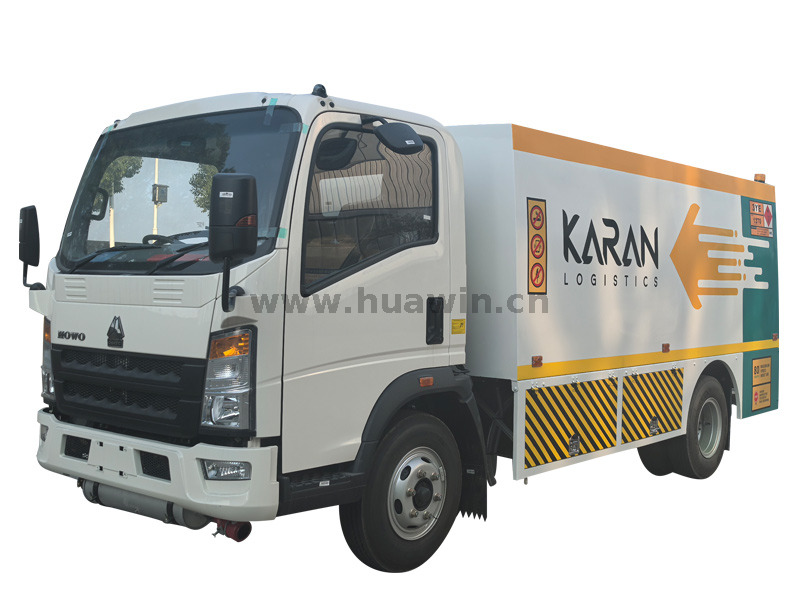

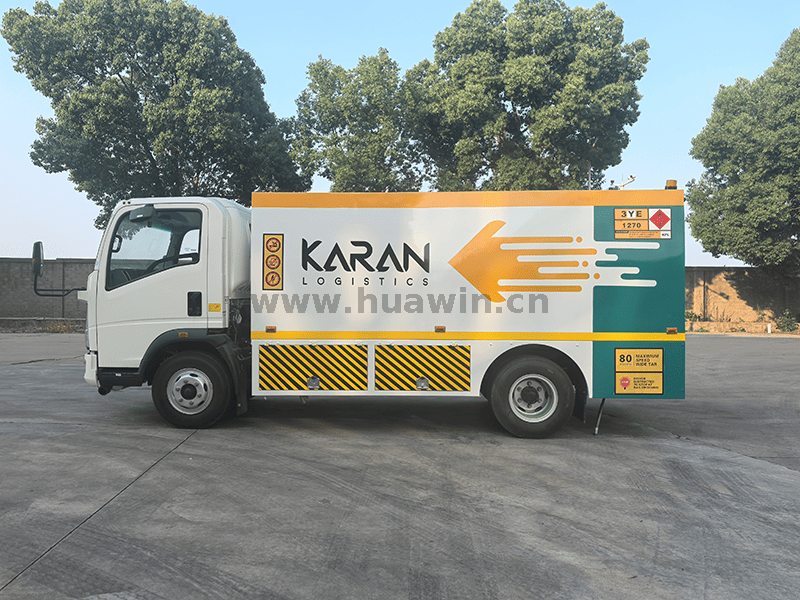

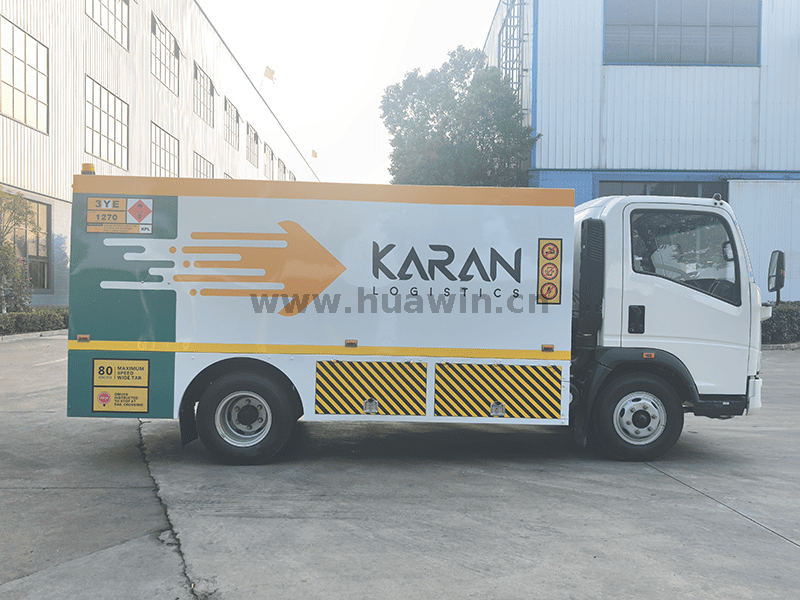

Sinotruk Howo Fuel Truck—Light Truck

● China's best  rear loader truck factor

● 30 years of experience on Fecal Suction Truck

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

Applications:

Sinotruk Howo Fuel Truck-Light Truck is mainly used for the transportation and filling operation of refined oil (e.g. diesel, gasoline) or other liquids, and is suitable for urban distribution, rural transportation and other scenarios.

Vehicle Information	1: Vehicle model	5-party fuel truck			3: Sales locations				Exits
	2: Vehicle size	Technical design with the smallest possible external dimensions			4: Tank dimensions				Technical Design

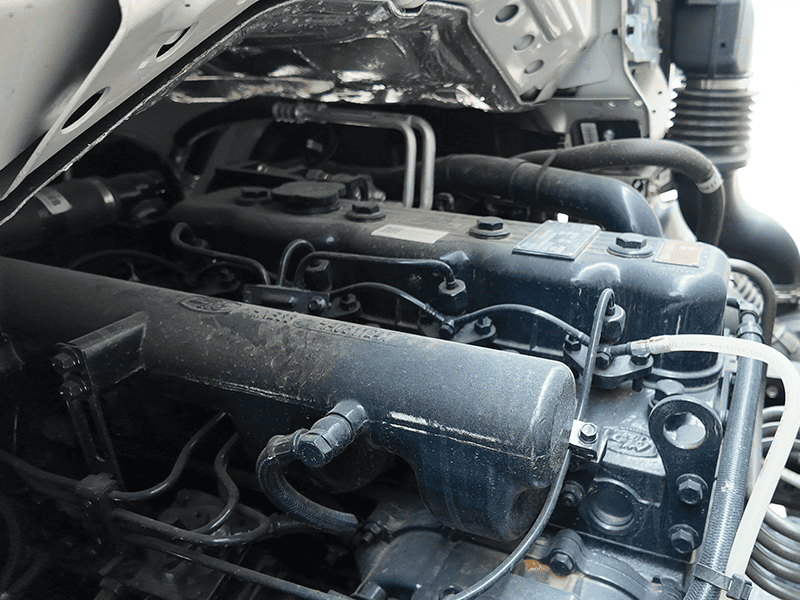

Chassis configuration	5: Chassis Model	ZZ1047D3414C1R45, right-hand drive			7: Engine Model				Yunnei 4102 series 85kW
	6: Frame width	800mm			8: Axis distance				3360
Loading and unloading system requirements	9: Volume binning	Total volume 5 square meters + 3%, through warehouse			10: Tank cross-section				Square Orbicular
	11: Tank opening type	Aluminum alloy European standard manhole			12: Number of tank opening positions				1 in the center of each bin
	13: Special requirements for tank opening	Manhole with protection box with drop pipe.
	14: Tank material	Q235B	15: Tank thickness		National Standard 4mm
	16: Breakwave plate thickness	according to factory standard
	17: Upper perimeter plate	/	18 enclosure type		/		19: Lifting guardrail			/
	20: Pump Type Model Manufacturer	1. One set of 60/30 aluminum alloy gear pump with relief valve.
		2. The oil pump is driven by the vehicle extractor.
	21: Pump Outlet Requirements	1、Pump system piping, valves, outlet, are 2 inches; import and export with plug cover.
		2、Pump inlet and outlet are installed in the middle of the right side, with pump in, pump out and self-flow function.
		3, 1 aluminum alloy pneumatic submarine valve at the front of the tank bottom, the submarine valve switch is installed in the pump box.
	22: European Standard Export Requirements	/
	23: Self-venting port requirements	/
	24: Pipe type material	DN50/Q235B		25: Valve Model Material				DN50/Aluminum Alloy
Annex requirements	26: Cannon form material	built-in		27: Number of tubing lengths				Two 2" with aluminum quick connectors
	28: Walkway type material	/		29: Number of climbing positions				/
	30: Toolboxes	1 toolbox in the right place		31: Rear protection				by program map
Appearance requirements	32: Paint colors	Buyer specified, GB single color		33: Hazard symbols				/
	34: External Marking	TBD (painted to customer's specifications)

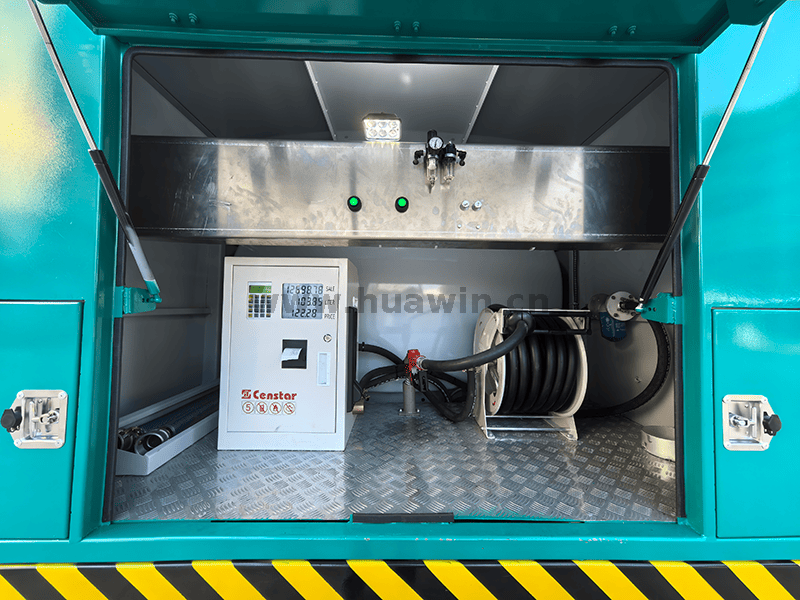

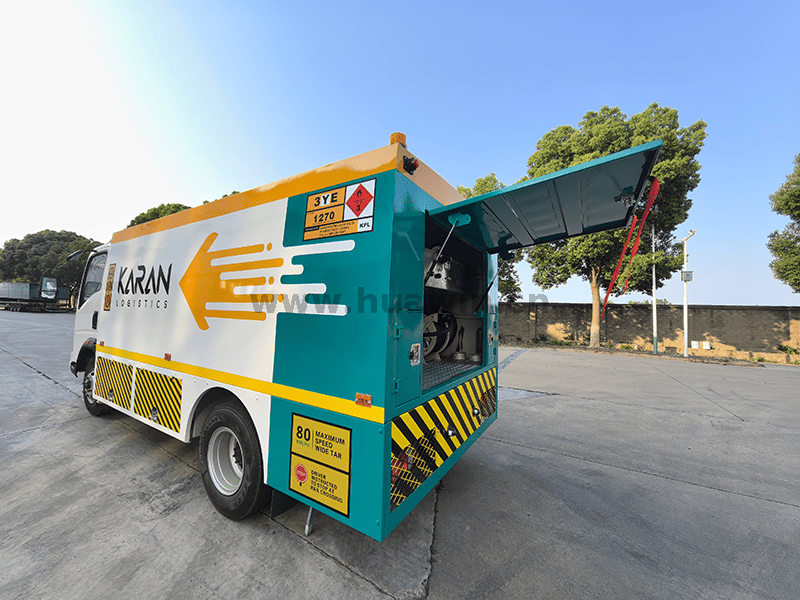

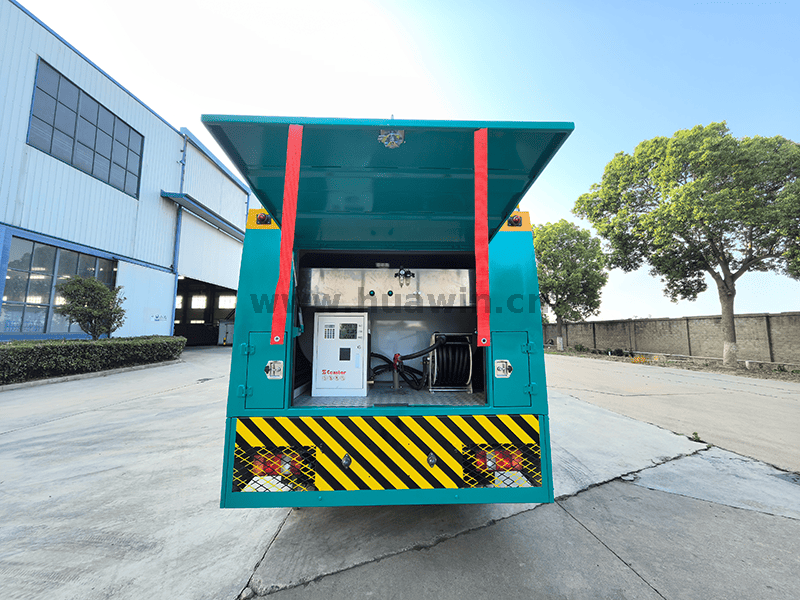

Other special requirements	1、The tank is made of carbon steel with square box structure, and the manhole cover of the tank at the top of the square box has a shutter with a flap, which is convenient for overhauling. 2. The rear part of the square box is equipped with an operation warehouse, and the door of the warehouse is an aluminum alloy shutter door. 3、Inside the silo, there is a set of Zhengxing high-flow gasoline dispenser with 15 meters reel and 1 inch gasoline gun installed by the buyer. 4、Installation of explosion-proof lighting, submarine valve emergency switch, and operation flow chart in English and Chinese in the warehouse. 5、Installed in the warehouse 4KG fire extinguisher 2. 6, 1 yellow warning light at the top of the back of the box; 1 contour light at the top of the back of the box, and 1 lighting in the middle of the box. 7、1 electrostatic conductive tape. 8、Exhaust pipe change front with fireproof cover.

Specificities:

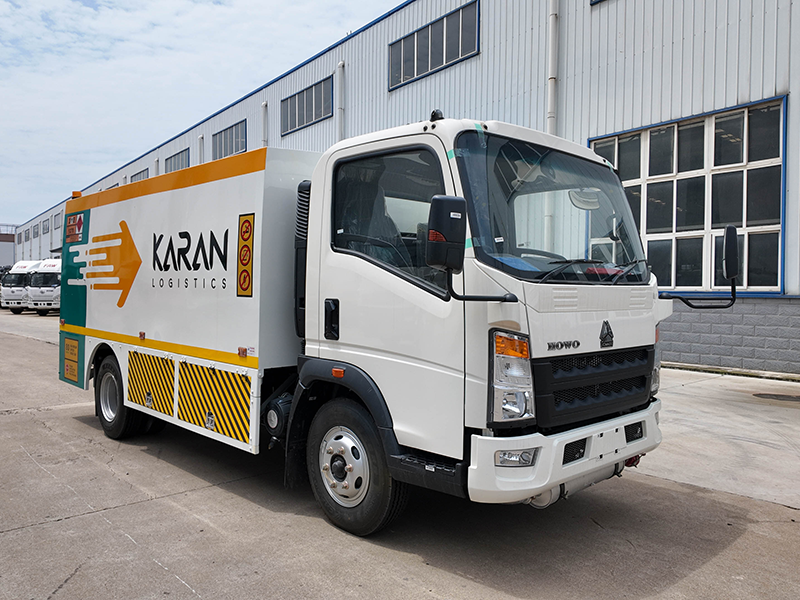

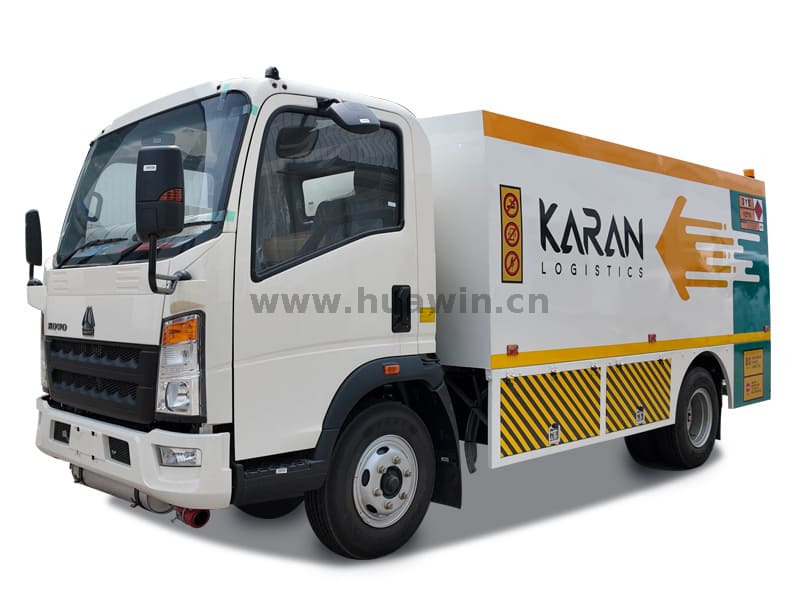

Sinotruk Howo Fuel Truck-Light Truck is a HOWO light truck chassis with a compact body for easy access in the city. It is suitable for short- and medium-distance transportation tasks, with high flexibility and strong maneuverability. The tanks are mostly made of carbon steel or stainless steel, and can be customized according to customers' needs, with a volume of 3 to 8 cubic meters, suitable for small-scale distribution tasks.

Sinotruk Howo Fuel Truck-Light Truck is equipped with reliable engine brands such as Yunnei, Weichai, etc., which meets the national emission standards. Strong power, low fuel consumption, suitable for long time operation, and in terms of safety, it is equipped with emergency cut-off device, anti-overflow valve, electrostatic grounding line and other safety measures to ensure the safety of the transportation process. The tank is treated with explosion-proof and corrosion-proof, and has a long service life.
