Tri-Axle Skeletal Container Semi Trailer

Basic Info:
Color:Optional Logo:Can be customized as your request
Origin:China Package:Nude
Availability:
Quantity:
  • ZZ
  • Huawin

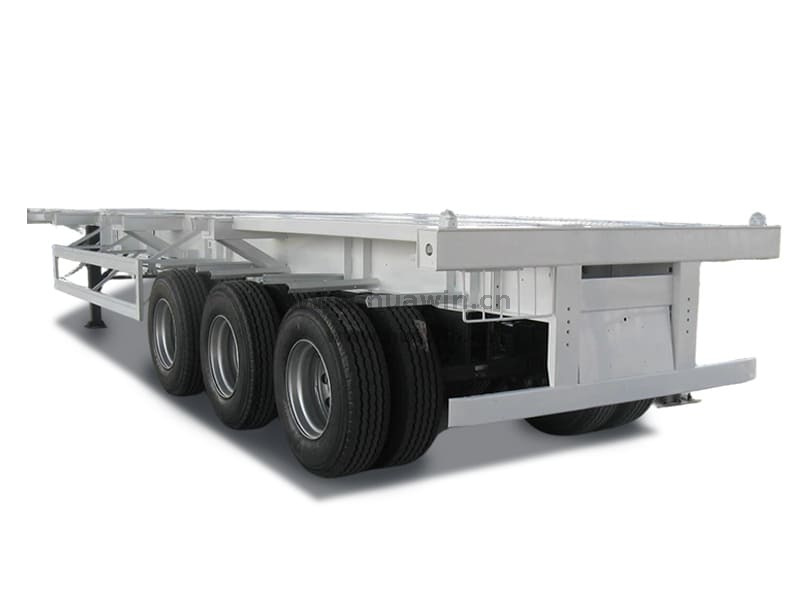

Tri-Axle Skeletal Container Semi Trailer

3 axle skeletal semi trailer


Specifications:

(1) skeletal semi trailer
(2) 3 Axles

(3) Loading Capacity: 45000KG
(4) Optional twist locks Can be loaded one 20'' container 40'' container
(5) King Pin: JOST
(6) Certification: ISO9001 CCC,SGS


Technical Parameters:


DIMENSIONS
Tare  Weight 5800kg



Overall  Length 12400mm
Overall  Width 2480mm
Payload 45000kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam& Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle 3 axles
BPW/ FUWA/HJ/L1 Brand 12 ton
Suspension Heavy duty mechanical suspension
Leaf Spring 13 piece Leaf spring for heavy loading
King Pin JOST brand 2" Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.0-22.5 wheel rim ,13 pieces including one spare
Tire 12R22.5 tire with one spare tire, 9 pieces including one spare
Twist Lock 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
