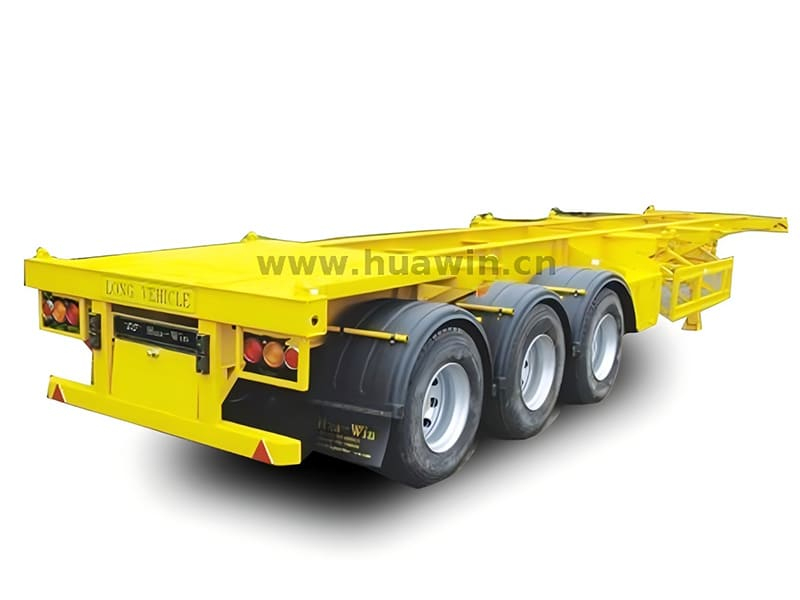

3 Axle 40 FT/20 FT Container 45 Tons Skeletal Semi Trailer
Specifications:
| DIMENSIONS | |||
| Tare Weight | 5800kg | ||
| Overall Length | 12400mm | ||
| Overall Width | 2480mm | ||
| Payload | 45000kg | ||
| Photo for reference. Final products can be made according to exact requirements | |||
| SPECIFICATIONS | |||
| I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
| Axle | 3 axles | ||
| BPW/ FUWA/HJ/L1 Brand 12 ton | |||
| Suspension | Heavy duty mechanical suspension | ||
| Leaf Spring | 13 piece Leaf spring for heavy loading | ||
| King Pin | JOST brand 2" Bolt-in King Pin | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 9.0-22.5 wheel rim ,13 pieces including one spare | ||
| Tire | 12R22.5 tire with one spare tire, 9 pieces including one spare | ||
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
