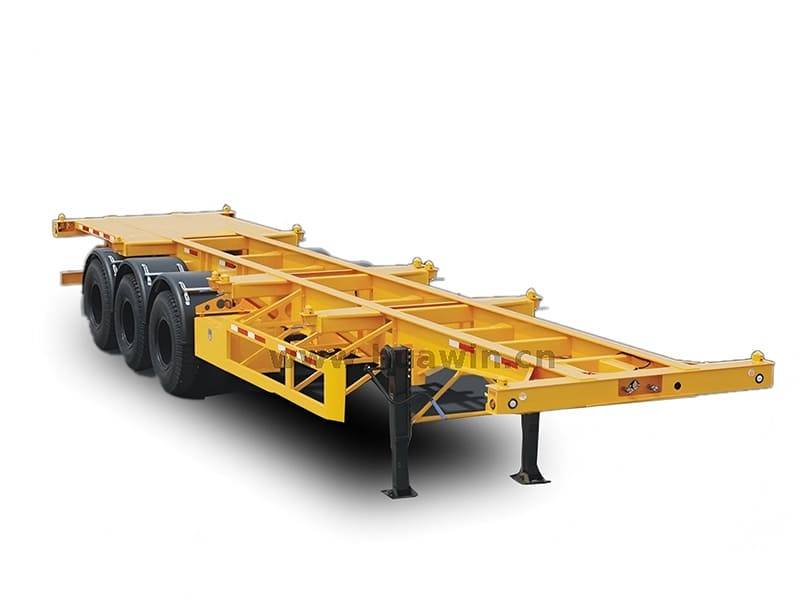

40FT 3 Axle Skeletal Container Semi Trailer

Basic Info:
Color:Optional Logo:Can be customized as your request
Origin:China Package:Nude
Availability:
Quantity:
  • ZZ
  • Huawin

40FT 3 Axle Skeletal Container Semi Trailer

40-feet-container-trailer



Specifications:

Gross Weight  40000KG
Kerb Weight 5500KG
Loading Capacity 45000KG
Dimensions 12450x2490x1557mm  40FT
Wheel Base 6300 mm
Axle 2-axle,13 Ton axles,Fuwa axle(Option 16 Ton axle)
Tyres 12.00R20 radial tyre (Option:11.00-20 diagonal tyre;11.00R20 radial tyre;12.00-20 diagonal tyre)
Floor 2.5mm Steel thickness of diamond plate or 3mm Steel thickness of flat plate
Rim 8.5-20, 8.0-20, 9.0-22.5
Suspension Mechanical suspension or Air suspension
Spring Leaf Width 90 mm, Thinckness 13/16mm, 10 Layer
King Pin JOST brand 2.0 or 3.5 inch bolts type or welding type
Landing Gear Jost brand, manual operation
Wristlock 12 sets of container wristlock,Can be loaded one 40'' container or two 20'' containers
Painting Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
