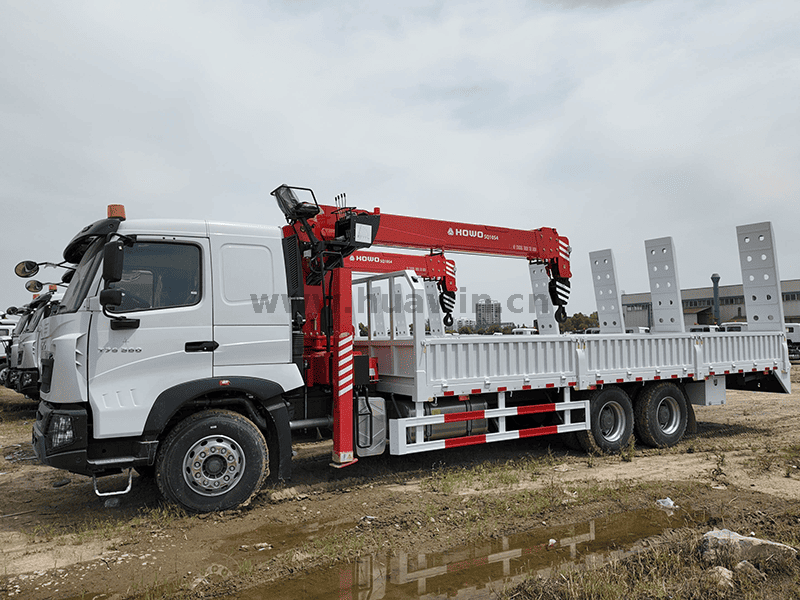

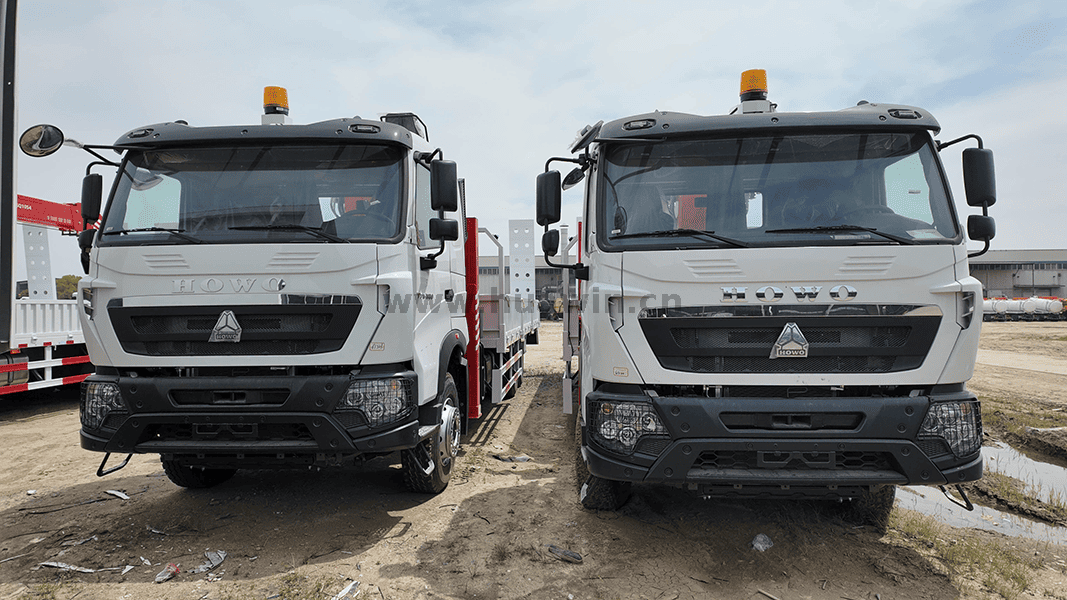

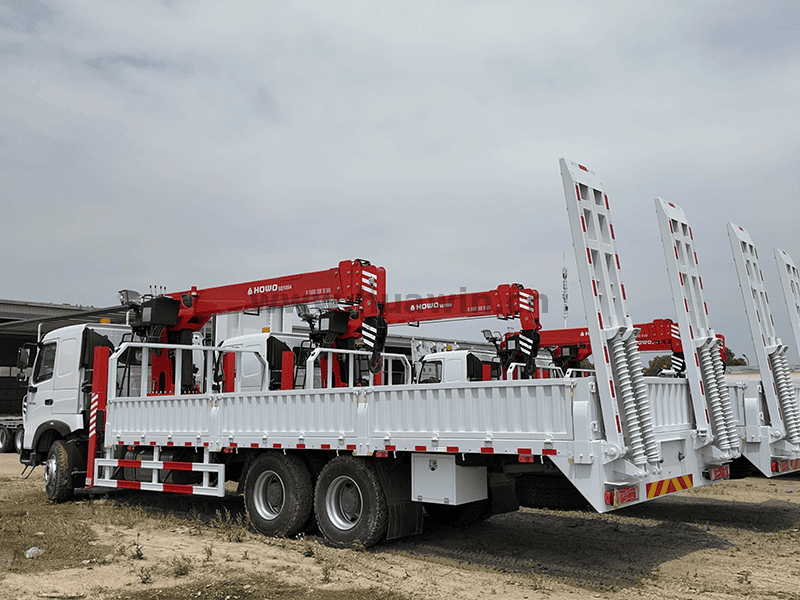

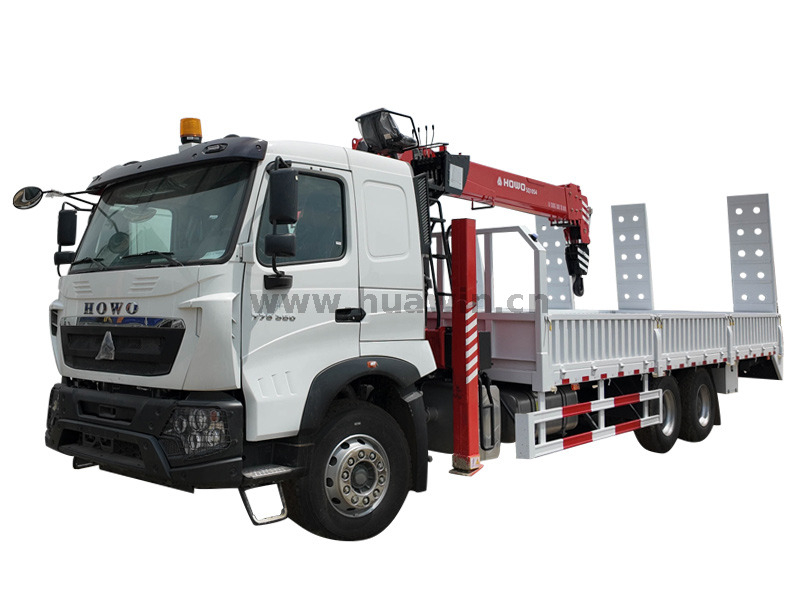

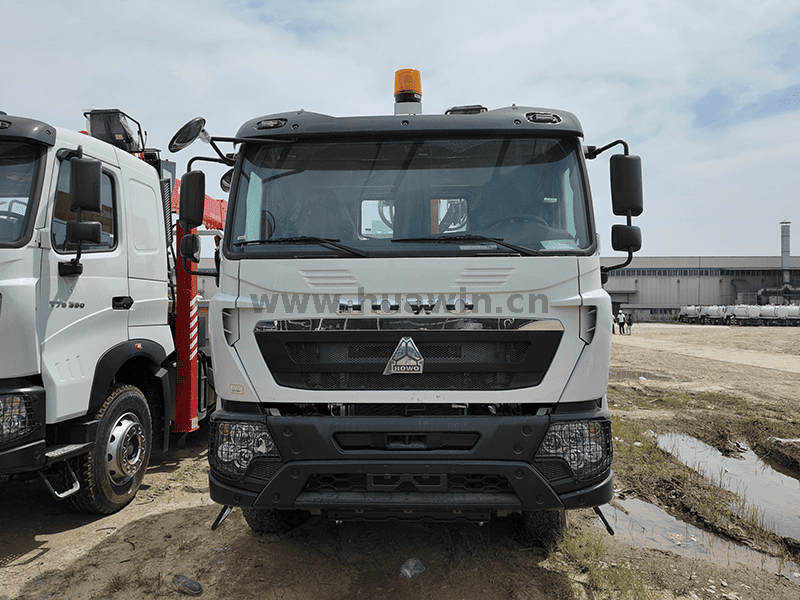

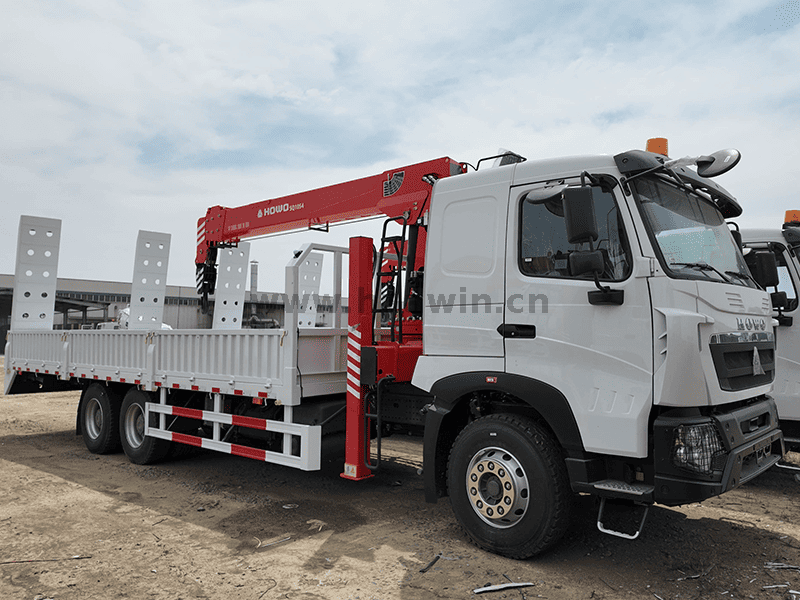

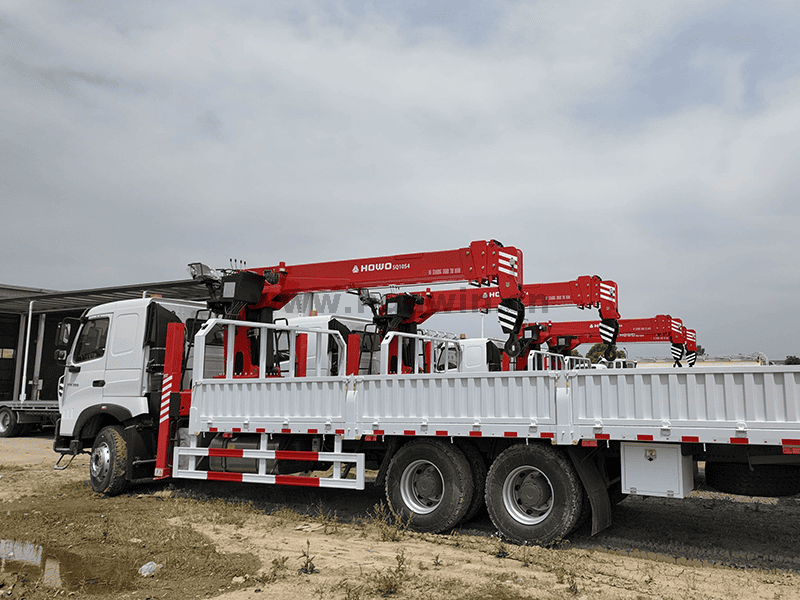

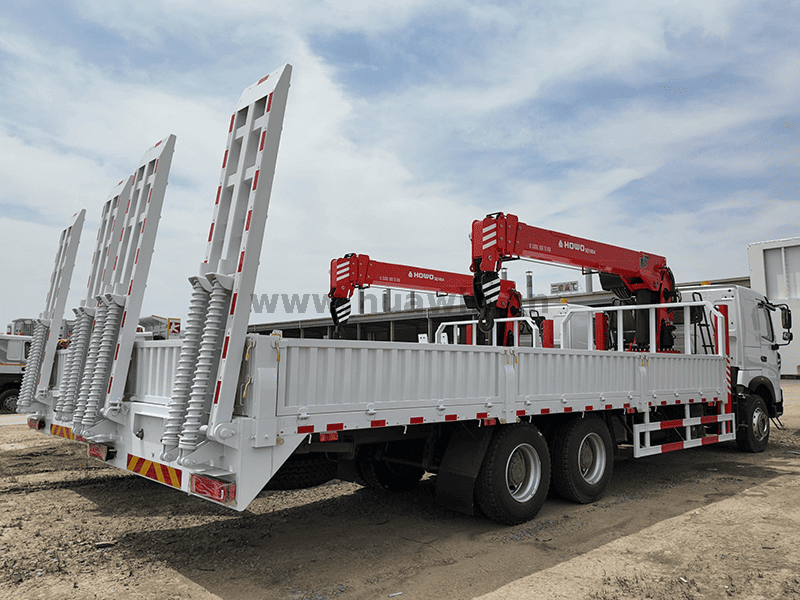

Sinotruk Howo Truck Mounted Crane-6x4

Produce Showcases:

● China's best  rear loader truck factor

● 30 years of experience on Fecal Suction Truck

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

Applications:

Howo Truck Mounted Crane has a wide range of uses, such as lifting rebar, formwork, steel components, scaffolding, cement and other building materials; Advantage: one truck can be used for multiple purposes, and can be transported to the construction site after lifting; it can enter into the narrow area of the construction site, and adapt to the urban construction environment.

Core Configuration	Drive Axles	MCX16ZG Dual Rear Axle(Drum)
	chassis	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(10/12)
	Transmission	HW19710 gearbox + HW70 flange pickup
	Engine	WP10.340E22 Engine
	Cab	HW76 new front cab
Compulsory	Tires	12.00R20 tires(mixed tread/18PR)
	Ratios	Speed ratio 3.7
	Saddle Option	50#JOST saddle
	ABS	Without ABS
	Bumper	High mounted bumper (all metal)
	Steering	Bosch steering wheel
	Front axle	VGD95 front axle (drum)
Selectable	Cab Seats	Primary mechanical + secondary lightweight seat
	Air intake system	Road version air intake system
	Air Conditioning Unit	Heating and cooling air conditioning
	Headlamp guards	Metal bumpers (with front and rear light protectors)
	Intercooler Protection Device	Intercooler protection
	China Heavy Duty Truck Intelligent Pass	None
	Rear Traction Hook	Optional rear towing hitch
	Exhaust System	Standard exhaust system
	Reversing buzzer	Reversing buzzer
	Driver's cab overhead lamps and lanterns	None
	Fuel Tank	400L Fuel Tank
	Fire extinguisher	Yes
	Underbody start/stop switch	Yes
	Wheel Option	Front and rear reinforced wheels
Upper Garment	10 tons XCMG folding jib crane, model GSQZ200.4, four-section telescopic, full rotary,2.Internal dimension of cargo box 6400x2400x550mm, bottom 3 sides 1.5, through-beam riveted, electrophoresis cargo box,3. Fixed auxiliary rear outriggers are added.

Specificities:

Howo Truck Mounted Crane 6x4 Strong Power, Stable Chassis is equipped with WD615 or WP10 series engine, with stable power output, and the common horsepower is 336HP, 371HP or 400HP; the 6×4 drive form (double rear axle drive) provides stronger load-carrying and cross-country performance, which is adaptable to complex environments such as urban and rural areas, construction sites, and unpaved roads;

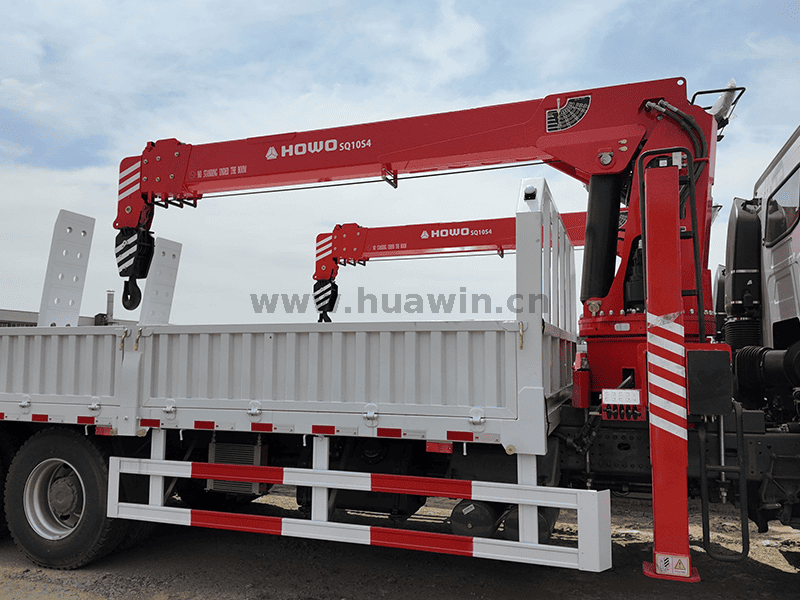

Howo Truck Mounted Crane 6x4 has a diversified lifting system, flexible functions can be configured with straight boom or folding jib crane, lifting tonnage from 5 tons to 15 tons optional; support full hydraulic control, remote control operation, slewing 360 ° operation, suitable for narrow site operation; lifting arm material using high-strength manganese steel, the structure of the stable, with a high lifting height and large working radius.
