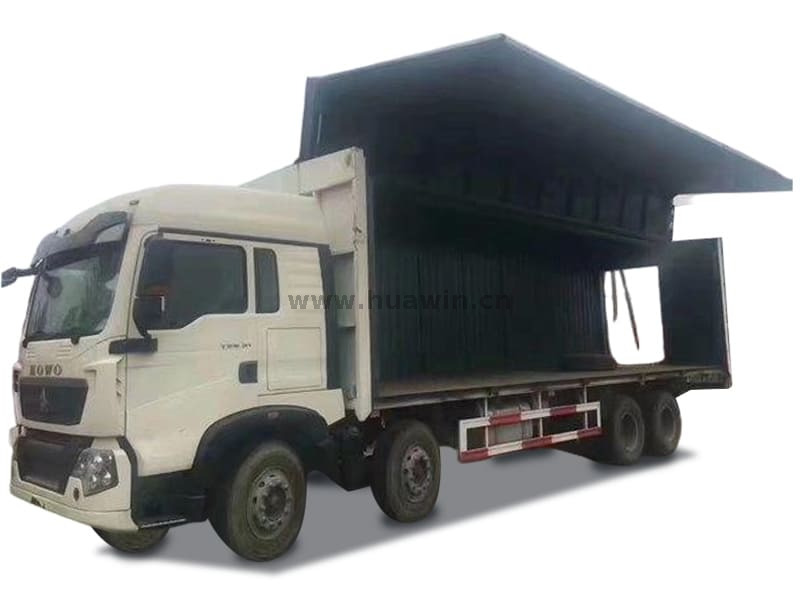

SINOTRUK T5G 8X4 Aluminum Wing Open Van Truck

Wing open van. Faster loading and unloading. Good quality and factory-direct price
Availability:
Quantity:
  • ZZ5317XXYN466GE
  • SINOTRUK T5G

名称SINOTRUK T5G 8x4 Wing Open Van Truck


详情


Specifications

SINOTRUK T5G 8x4 Wing Open Van Truck

Chassis  Model

ZZ5317XXYN466GE1

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

T5G-W cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, air bag driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 3 (Euro 4-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 340HP (430HP is optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

ZF power steering, hydraulic steering with power assistance

Front  Axle

H153, 2x6500  KGS

Steering with double T-cross section beam

Rear  Axle

153, 2x17500  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Wing Open Van box

Inner Dimensions: 9520x2400x2400mm Material: Aluminium With one rear door

Overall  Dimension

12000x2550x3980mm
