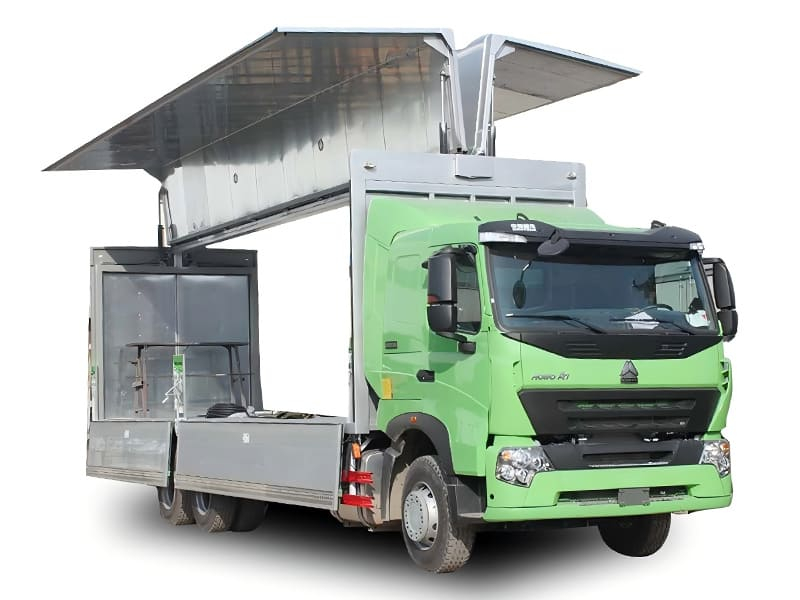

SINOTRUK A7 6X4 Aluminum Wing Open Van Truck

Wing open van. Faster loading and unloading. Good quality and factory-direct price
Availability:
Quantity:
  • ZZ1257N5847N1
  • SINOTRUK A7

名称SINOTRUK A7 6x4 Wing Open Van Truck



详情

Specifications

SINOTRUK A7 6x4 Wing Open Van Truck

Chassis  Model

ZZ1257N5847N1

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

A7-P cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, air bag driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 420HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

ZF power steering, hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Wing Open Van box

Inner Dimensions: 9600x2400x2400mm Material: Aluminium With one rear door

Overall  Dimension

12300x2500x3930mm
