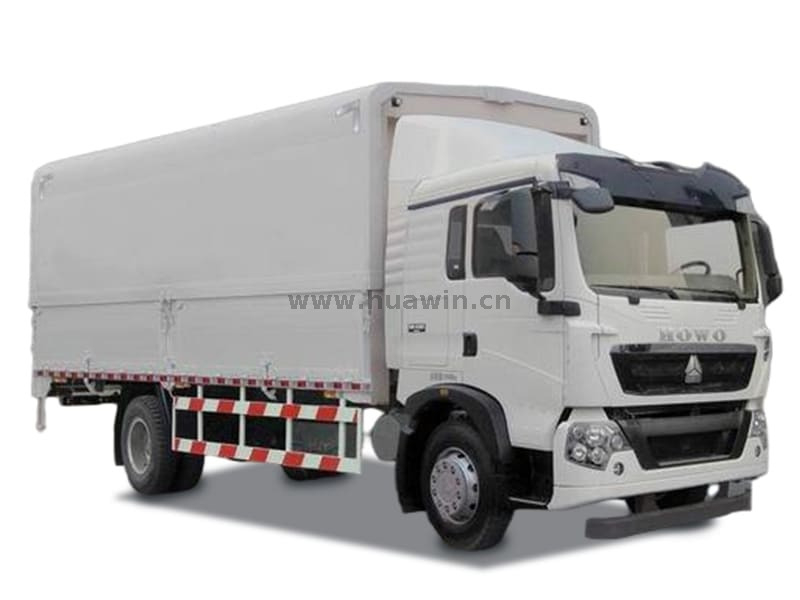

SINOTRUK T7H 4X2 Aluminum Wing Open Van Truck

Wing open van. Faster loading and unloading. Good quality and factory-direct price
Availability:
Quantity:
  • ZZ5187CCYK501GE1
  • SINOTRUK T7H

名称SINOTRUK T7H 4x2 Wing Open Van Truck



详情

Specifications

SINOTRUK T7H 4x2 Wing Open Van Truck

Chassis  Model

ZZ5187CCYK501GE1

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

T7H cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK MAN engine

Diesel injection diesel engine

Emission Standard: Euro 3 (Euro 4-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 290HP (340HP, 380HP, 430HP are optional)

Transmission

ZF, 16 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF7, 1x7000  KGS

Steering with double T-cross section beam

Rear  Axle

ST16, 1x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between  wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Wing Open Van box

Inner Dimensions: 7300x2400x2500mm Material: Aluminium With one rear door

Overall  Dimension

10000x2500x3860mm
