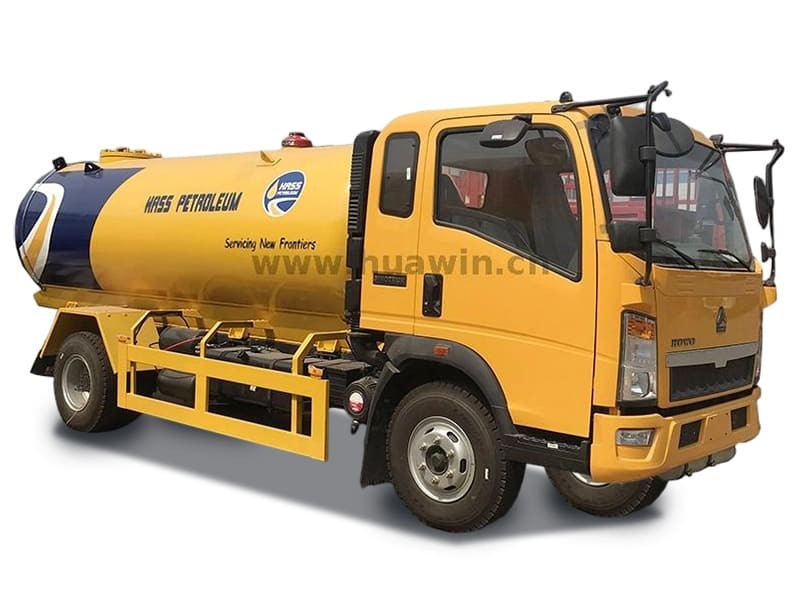

SINOTRUK HOWO 4x2 LPG Truck

Basic Info:
Color:Optional     Logo:Can be customized as your request
Origin:China        Package:Nude
Factory price with trusted quality
Availability:
Quantity:
  • ZZ1107G451CD
  • SINOTRUK HOWO

SINOTRUK HOWO 4X2 10m3 5ton LPG Gas Tank Bobtail Truck

3(4)

Specifications:



Item No. Parameters
Overall Dimension 7600x2300x2980 mm
Driving Model Left hand drive or right hand drive
Gross Vehicle Weight 11460 kg
Curb Weight 6460 kg
Payload 5000 kg
F/R Axle Loading 3200/8000 kg
Wheel Base 4200 mm
Front/rear Tread 1886/1845 mm
Approach/Departure Angle 27/20 degree
Engine Yuchai 4110,YC4E160-33
Engine horsepower 160 HP EUROIII
Displacement 4260mL (Diesel)
Max Driving Speed 95 km/h
Gear Box DC6J65TC,6 forward& 1 reverse
Cabin 2~3 Passenger allowed,with A/C
Tire 8.25R20  (6 pc with 1 spare)
LPG tank
Volume: 8~10cbm
Tank material: Q345R
Tank diameter: 1800mm
Tank thickness: 10mm
End plate 10mm
Tank length: As designed
Gas phase DN50
Liquid Phase DN50 or DN80 for option
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
Level Gauge Manual rotation type,at the rear of tank
Safety Valve 1,DN80
Tool and Valve Box 1
LPG pump 1
LPG Volume Flow Meter 1
Filling Hose 15 meters
Filling Nozzle 1pc,Standard for 12.5kg cylinder
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher holder 2
Exhaust shaft At the front of truck for safety
