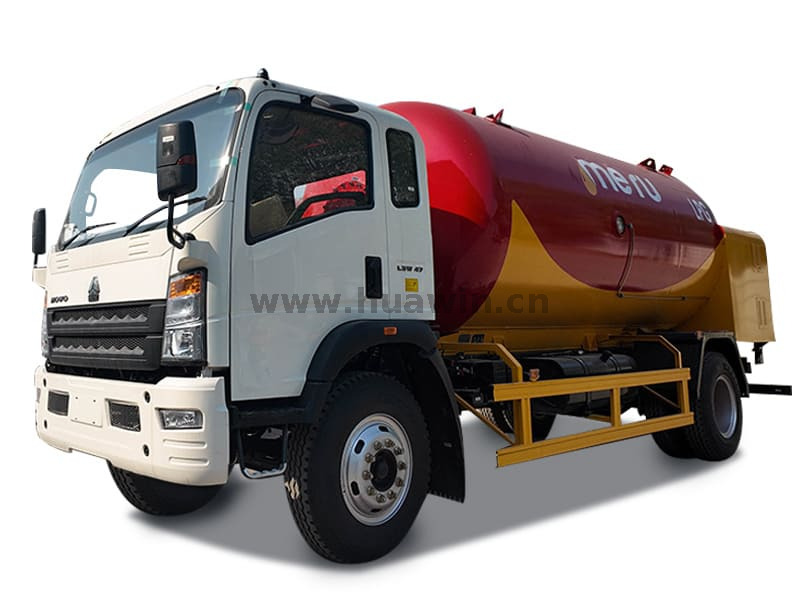

Sinotruk HOWO 4X2 LPG Gas Tank Bobtail Truck 8-15m3

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

Efficient transportation capacity:

Capacity optimization: The vehicle's LPG tanks are specially designed to maximize transport efficiency and ensure that more demand can be met in one transport.Long range: The 4X2 drive mode enables the vehicle to provide a high range over longer distances, reducing the frequency of refueling in the middle of the journey.Transportation capacity: The design of the special vehicle allows it to transport not only LPG but also other types of specialized transport, providing greater flexibility in transportation.

High safety:

Strong tank design: LPG tanks are made of high-strength materials with high compression and impact resistance, ensuring that leakage or other safety hazards can be effectively prevented during transportation.Explosion-proof system: The vehicle is equipped with a specialized explosion-proof design to prevent explosions and other serious safety accidents in case of gas leakage.Gas Leakage Detection System: Equipped with an automatic leakage detection system, the vehicle can detect potential gas leakage in time and sound alarms, further improving safety.

Applications:

HOWO Light Truck LPG Filling Truck, also known as HOWO Natural Gas Tanker Truck, HOWO RHD LPG Tanker Truck) It is used to transport oil, diesel fuel, gasoline, kerosene, etc.

Interior:

Sinotruk Howo LPG Gas is generally equipped with a single row or sleeper cab, the interior is spacious with good visibility. All control buttons and gauges are easy to operate, allowing drivers to quickly grasp the vehicle's status while working.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk HOWO 4X2  LPG Gas Tank Bobtail Truck 8-15m3
Cabin	Driving type 4x2 RHD
	2080 semi-cab, with air conditioning
Vehicle Main Dimensions	Overall dimensions (L xWxH)mm	7600x2300x2980 mm
	Wheelbase (mm)	4700
Weight in KGS	Tare weight(kg)	6460
	Payload(kg)	5000
	Front axles loading capacity(T)	3.6
	Rear axles loading capacity(T)	10.5
Engine	Brand	YC4E160-33
	Model	YN4102QBZL
	Type	4 cylinder in line, Turbocharged and inter-cooled
	Horsepower (HP)	160HP
	Emission standard	Euro 2
Gearbox	HW90510C gearbox
Steering	Power steering
Oil tank	120 iron liters
Tire	9.00R20
Tanks	Volume:	8~15cbm
	Tank material:	Q345R
	Tank diameter:	1800mm
	Tank thickness:	10mm
	End plate	10mm
	Tank length:	As designed

Features of the suction function：

High-efficiency vacuum pump system

Equipped with a powerful vacuum pump, it has high suction efficiency and stable operation capabilities, and can quickly suck up liquid waste, oil stains, sludge, and other substances.

Strong suction power and wide range

With powerful vacuum suction and a suction range of up to 8 meters, it is suitable for cleaning various underground sewage wells, septic tanks, industrial waste liquid tanks, and other facilities.

Easy to operate

Equipped with a hydraulic or pneumatic control system, the sewage suction and discharge process can be controlled with a single button. It is equipped with a liquid level gauge, a sewage viewing window, and a safety valve, making operation intuitive and safe.
