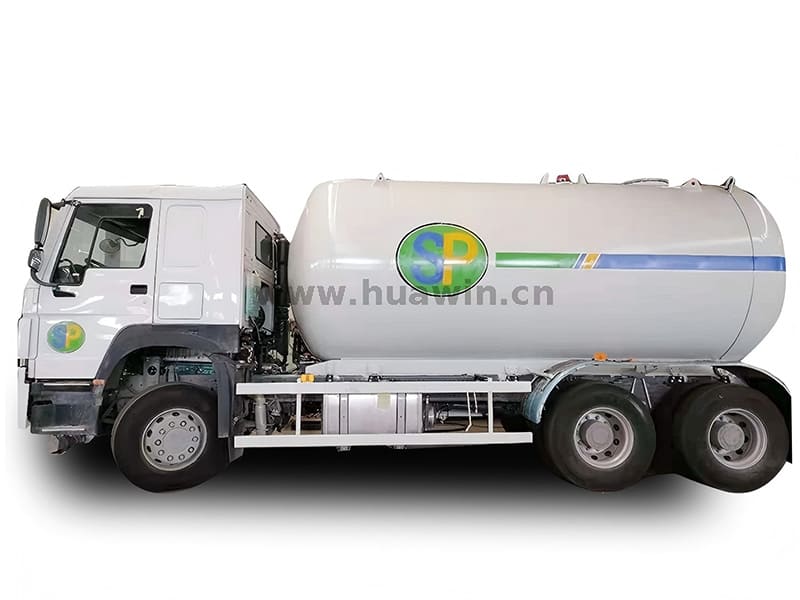

SINOTRUK HOWO LPG Gas Refueling Tank Truck 20~25 CBM
Specifications:
| Item | Unit | Description | ||||||||
| Model | LPG Truck | |||||||||
| Dimension | mm | 10200*2500*3450 | ||||||||
| Tank Dimension | mm | 7534×2124 / 24.81 cubic meter | ||||||||
| Curb Weight | kg | 14385 | ||||||||
| Wheel Base | mm | 4350+1300 | ||||||||
| F/R track base | mm | 1940/1860 | ||||||||
| F/R Axle-Load | Kg | 7000/13000/13000 | ||||||||
| Approach/Departure angle | . | 25/11 | ||||||||
| Traction system | 4x2 | Tire Specification/Number | 12.00R20 / 10+1 Units | |||||||
| Max speed | 90 km/h | Number of axles | 3 | |||||||
| Engine model | WD615.97E | Emission/kw | 9726ml / 216 KW, 290 Hp | |||||||
| Diesel , 6 Cylinders, Diesel, Direct-line, Turbocharge and aftercooling | ||||||||||
| Engine Manufacturer | Weichai Engine Power Co.,Ltd | |||||||||
| Steering | Power | Transmission | HW15710, 10F&2R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Dirve system | Left hand or Right hand driven | |||||||||
| Air Condition | Yes | CD , Radio, Mp3 | ||||||||
| LPG Tank Design | ||||||||||
| Load Substance: | Oil Gas (propane) | Designed Pressure: | 1.77Mpa | Designed TEMP: | 50°C | |||||
| Load parameter: | 0.42T/m3 | Material: | Q345R,16MnIII, Q370R | |||||||
| Remark: | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, Valve box,Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards,Tire well-secured,fenders and mudguards. One side liquid output port, Option~ Two side output port. Option~ installing recharge and discharge device, Pump,and others | |||||||||
