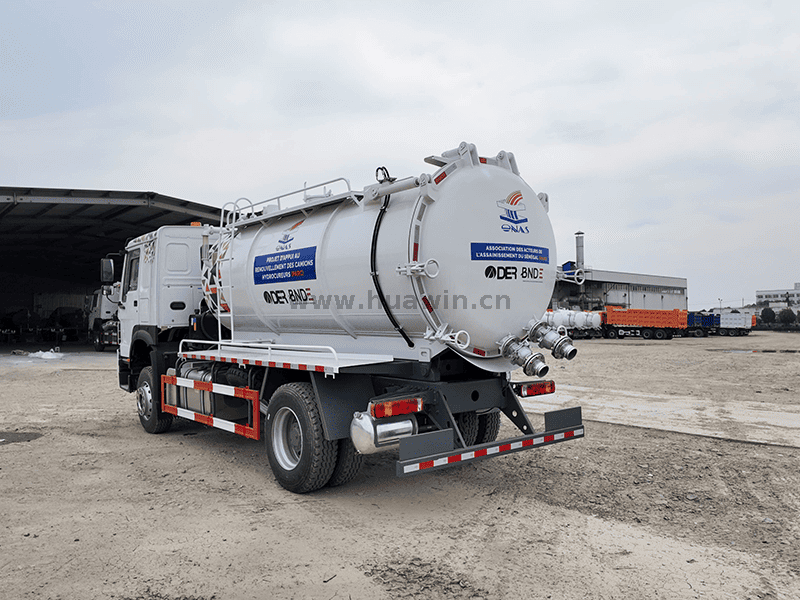

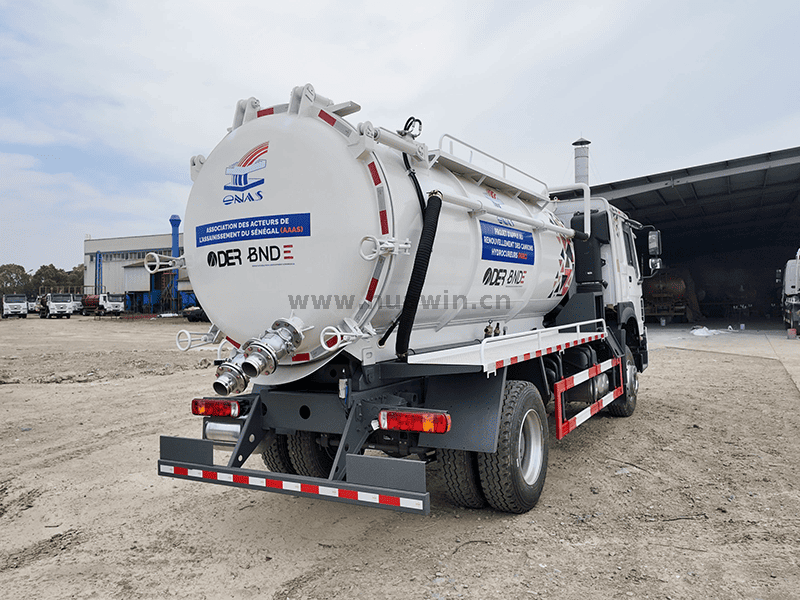

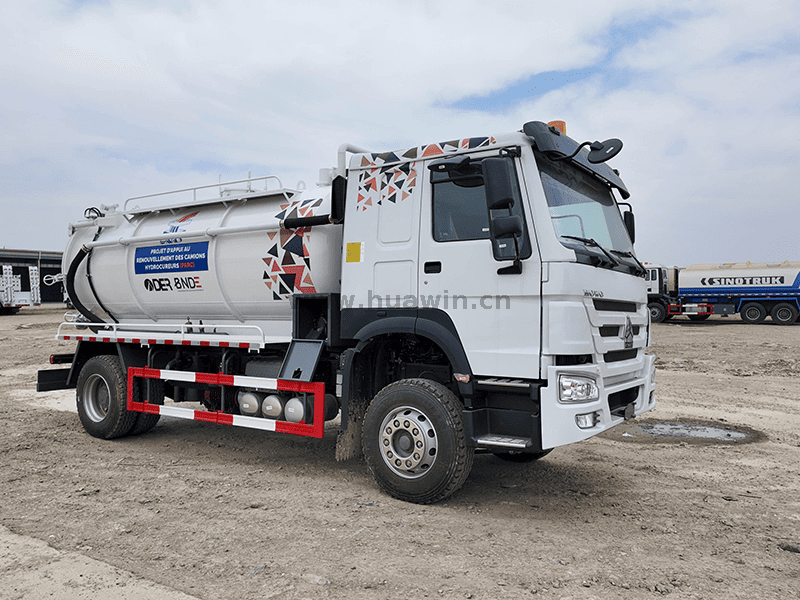

Sinotruk HOWO 4×2 sewage truck is a new type of sanitation vehicle designed to collect,transfer,clean and transport sludge and sewage. With self-priming and self-discharging function, this unit is suitable for collecting and transporting liquids such as feces, mud and crude oil. Equipped with state-of-the-art vacuum pump with high suction power and long suction range, making it particularly suitable for sucking, loading, and unloading sediment from sewers, especially larger objects such as mud, silt, gravel, and bricks.
(L × W × H)mm: 8700×2550×3200
Products Showcases:
● One of the biggest and best truck and trailer manufacturer in China
● 30 years of experience in Special Vehicle
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 12-24 months long guarantee time assurance
Features:
1. Equipped with Italy JUROP vacuum pump, vacuum rate up to 92%. It features strong suction power and high efficiency, enabling rapid extraction of wastewater, slurry, sewage.

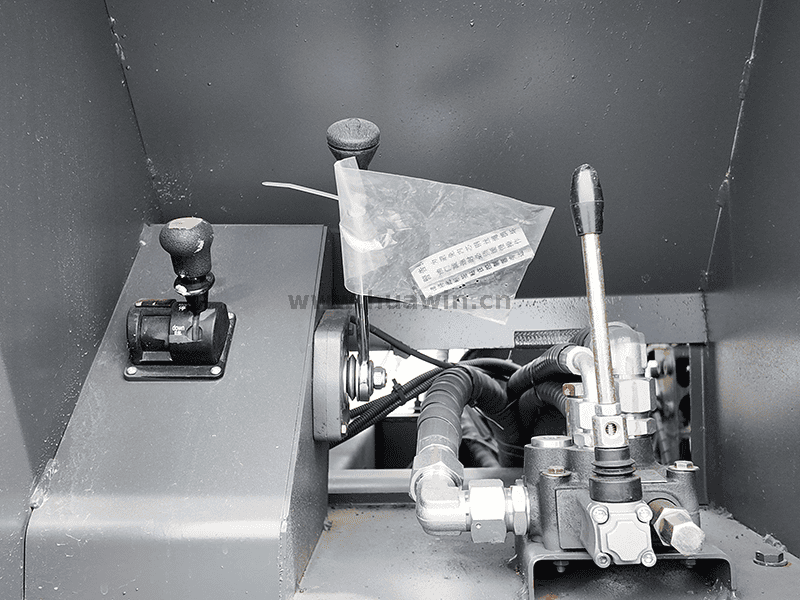

2. Hydraulic system for offloading, easy operating. All control systems are integrated into the operating box for quick operation. Equipped with hydraulic system and manual/automatic control modes, it improves operational safety.
Applications:
SINOTRUK HOWO 4×2 Sewage Truck 10 Cubic Meters is primarily a specialized vehicle designed for the collection and transportation of municipal and industrial wastewater. It boasts extensive application scenarios, including municipal sanitation, industrial wastewater treatment, and septic tank cleaning.
| |
Specification:
We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

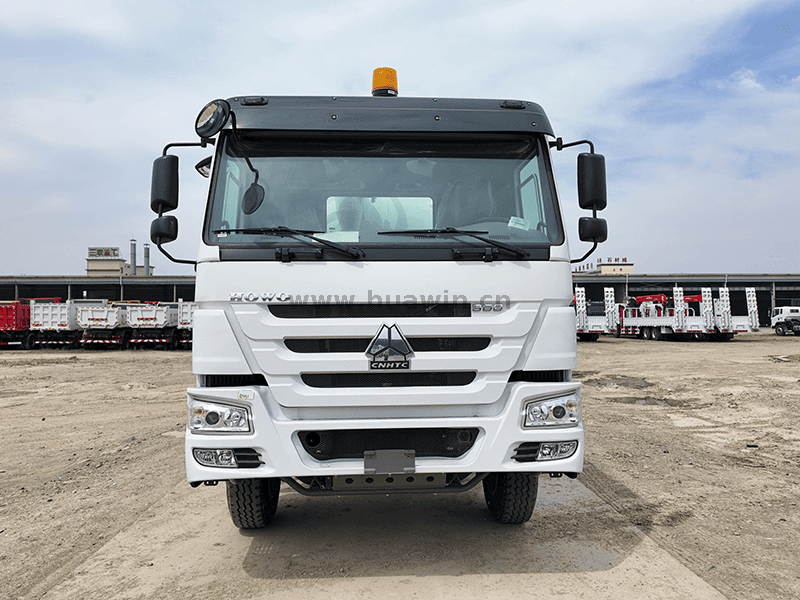

| Cabin | Driving type 4×2 LHD | |
| HW76 cabin with two seats, one sleeper and A/C, 70° hydraulically tiltable to the front, attached photo for reference only. | ||
| Vehicle Main Dimensions | Overall dimensions (L × W × H)mm | 8700×2550×3200 |
| Wheelbase (mm) | 4600+1400 | |
| Wheel Track (front/rear) (mm) | 2030/1830 | |
| Approach/Departure angle (°) | 26/23 | |
| Weight in KGS | Tare Weight | 11000 |
| Payload | 12000 | |
| Front axles loading capacity | 1×7000 | |
| Rear axles loading capacity | 1×16000 | |
| Max. driving speed（km/h） | 102 | |
| Engine | Brand | WEICHAI |
| Model | WP10.300E22 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power（HP) | 300 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 forwards gear & 2 reverse gear, with PTO | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | BOSCH 8118 | |
| Fuel tank (L) | 400 | |
| Tire | 295/80R22.5 tubeless tire, 7 pcs in total including one spare tire | |
| Sewage Tank Specifications | Tank Capacity | 10,000 Liters |
| Tank Material | High strength carbon steel (Tank inner with anti-corrosion treatment to pro-long tank service life). | |
| Hydraulic System | Hydraulic control valve to lift/descend the tank, and open/close the rear cover | |

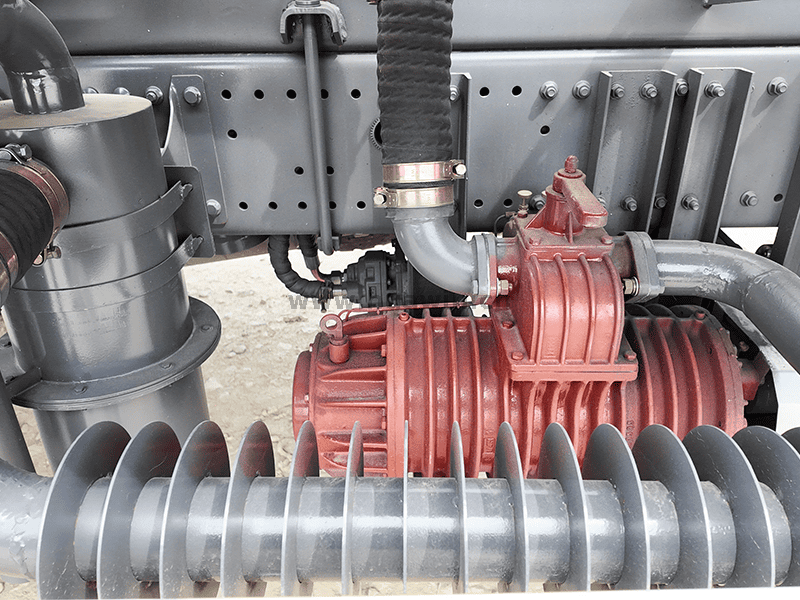

| Vacuum Pump | Italy JUROP brand vacuum pump PN106 model | |
| Sewange Hose | Reinforced sewage hose with quick couplings, 6 meters long, 4-inch diameter. | |
| Accessories | Anti-overflow valve, vacuum pressure gauge, level indicator, sight glass, inlet, discharge, hand washing box etc. | |
Operating Showcase:
