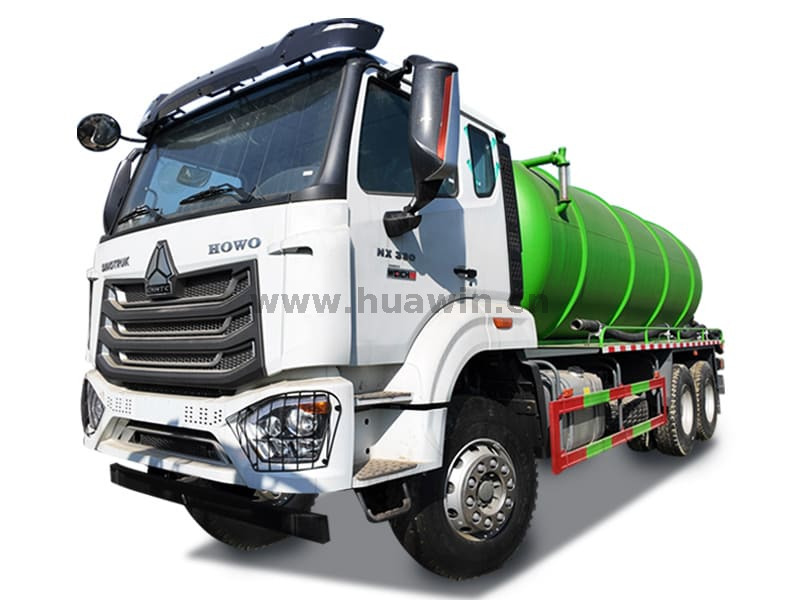

HOWO NX 6×4 Suction Truck is a heavy-duty special vehicle in Sinotruk HOWO NX series designed for urban sewage treatment and pipeline dredging. This model combines powerful chassis carrying capacity and efficient sewage treatment system, and is suitable for municipal sanitation, industrial parks, construction sites and other scenarios.
Availability: | |
---|---|
Products Showcases:
● One of the biggest and best truck and trailer manufacturer in China
● 30 years of experience in Special Vehicle
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 12-24 months long guarantee time assurance
Features:
HOWO Sewage Truck-NX-6×4 has a strong chassis platform, such as the drive form: 6×4 (dual rear axle drive), suitable for all kinds of complex road conditions, strong stability. Strong chassis carrying capacity: based on HOWO-NX heavy truck chassis, it has high-strength frame and suspension system, adapting to heavy-load sewage suction operation. Power system: equipped with MC series engine of China National Heavy Duty Truck (e.g. MC11), with strong power output and high fuel efficiency.
HOWO Sewage Truck-NX-6×4 has professional suction device vacuum suction system: equipped with high negative pressure vacuum pump (such as SK series, Roots pump or imported type pump), strong suction, suitable for high concentration, high viscous dirt. Optional with anti-overflow valve and liquid level alarm to prevent sewage overflow. Large-capacity tank: the general volume is 12-20 cubic meters, adapting to the needs of medium and large-scale sewage suction operations.
Applications:
HOWO Sewage Truck-NX-6×4 is commonly used in municipal sanitation systems such as pumping sludge and sewage from sewers, rainwater wells, sewage wells, septic tanks. Cleaning of sewage pipes, used with high-pressure cleaning function (some models are combined dredging trucks).
![]() | ![]() |
Ceb:
The Sinotruk Howo Sewage NX 6X4 Truck features a high-roof wide-body cab with a rugged, modern exterior design, full lines, and strong visual impact. The wide-body design provides a more spacious interior, making it convenient for long-term operations or two-person driving.
![]() |
Specification:
We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.
Sinotruk Howo Sewage NX 6X4 Truck | ||
Core Configuration | Drive Axles | MCX16ZG Dual Rear Axle(Drum) |
Chassis | Double-layer frame(8+8/300) | |
Suspension | Front and rear reinforced multi-leaf springs(10/12) | |
Transmission | HW19710 gearbox + HW50 direct coupled pickup | |
Engine | WD615.47 engine | |
Cab | HOWO H77L-R | |
Compulsory | Tires | 315/80R22.5 Tires(Mixed Tread/18PR) |
Ratios | 4.803 | |
Bumper | High Bumper(Full Metal) | |
ABS | Without ABS | |
Front Axle | VGD95 front axle(drum) | |
Steering | Right-hand Bosch steering wheel | |
Selectable | Intake system | Engineered air intake system |
Oil filter)Intercooler protection device | Intercooler protection | |
Electric cab lift | Cab Manual Lift | |
Center control panel | MP3 | |
Glass Lifter | Electric Glass Lifter | |
Fuel tank | 400L Fuel Tank | |
Rearview mirror | Manual | |
Driver's seat | Main airbag+Sub easy seat | |
Air conditioning unit | Heating and cooling air conditioning | |
Cabin overhead light fixtures | Cab overhead single warning light | |
Engine | EVB and 71 degree thermostat | |
NANO electrical system | NANO electrical system | |
Exhaust system | Standard exhaust system | |
Rear tail light | Seven-function halogen taillights | |
Cab | Classic Edition | |
Wheel Option | Regular wheels | |
Upper Garment | Tank volume of about 20 cubic meters, head thickness of the national standard 8mm, tank material Q345 manganese plate, cylinder 3 channel steel clamps to strengthen the original imported Italian MORO brand PM110W vacuum pump with original accessories (accessories include: in and out of the air elbow, primary overflow prevention valve, secondary overflow prevention valve, safety cartridge (air filter)) |
Suction performance characteristics:
Powerful suction system
Equipped with a high-power vacuum pump, it features strong suction power and high efficiency, enabling rapid extraction of wastewater, slurry, sewage, and other media.
High vacuum degree, fast working efficiency
The vacuum level can reach -0.09 MPa, enabling rapid suction and reducing operation time. It is particularly suitable for complex working conditions such as urban sewers, septic tanks, and sewage wells.
Easy to operate, safe and reliable
All control systems are concentrated on one side of the vehicle body for quick operator familiarization. Equipped with a hydraulic system and manual/automatic control modes, it improves operational safety.
![]() | ![]() | ![]() |
