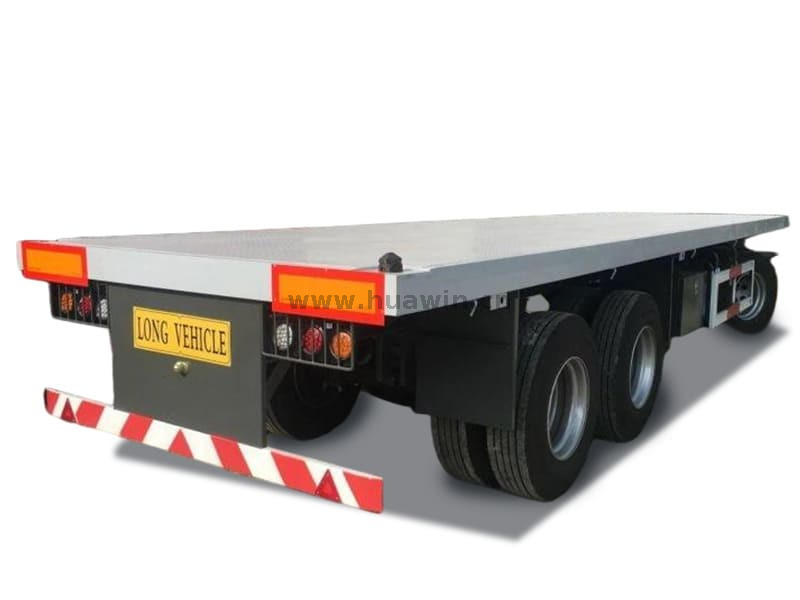

Three Alxes Container Transportation Full Trailer

Availability:
Quantity:
  • HWPT-2
  • SINOTRUK HOWO

Three Alxes Container Transportation Full Trailer

pulling trailer9

Specifications

DIMENSIONS
Tare  Weight 8000kg
Overall  Length 9125mm
Overall  Width 2500mm
Payload 30000kg
SPECIFICATIONS
I Beam & Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle 3 axles
BPW Germany Brand, 13 ton
Suspension Heavy duty mechanical suspension
Floor 3mm checker plate
Leaf Spring 13 piece Leaf spring
Towing ring 2”
Wheel Rim 9.0-22.5 wheel rim 13 pieces
Tire 12R22.5 tire with one spare tire. 13 pieces
Twist Lock 4 nos. of ISO twist lock for 30ft container
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
