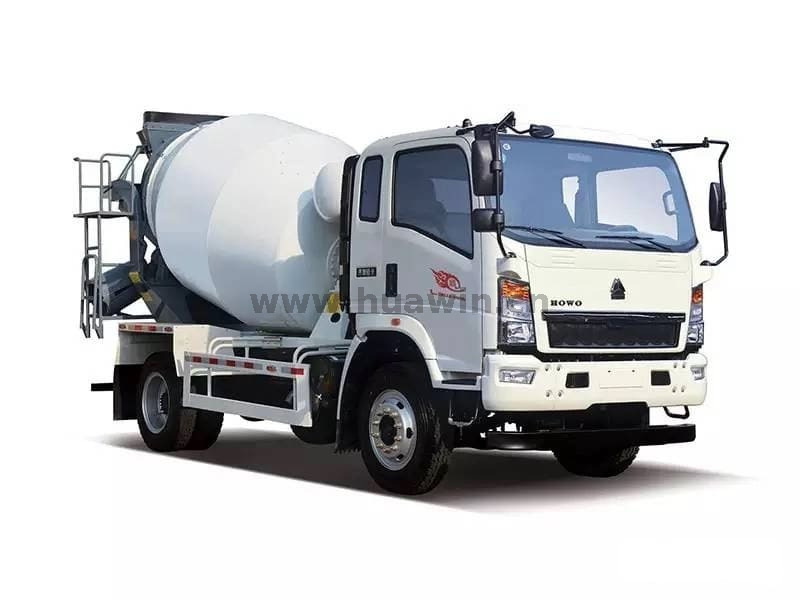

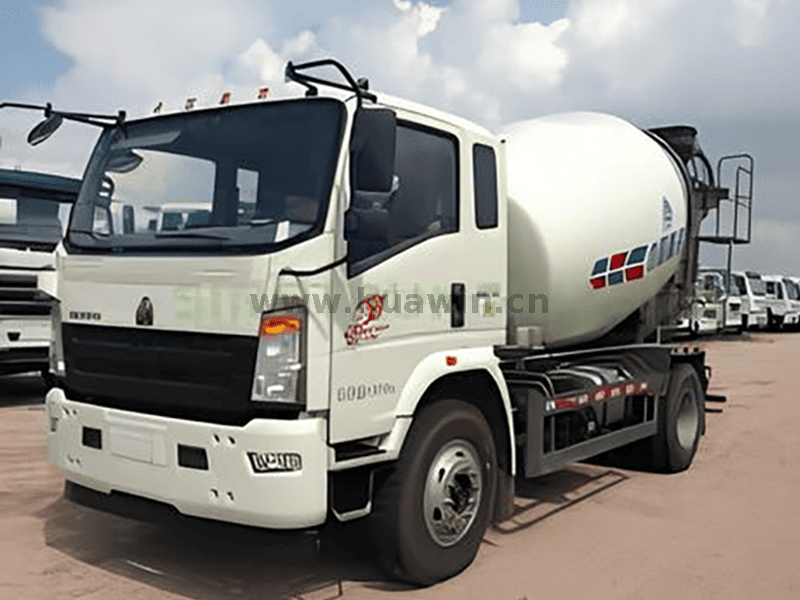

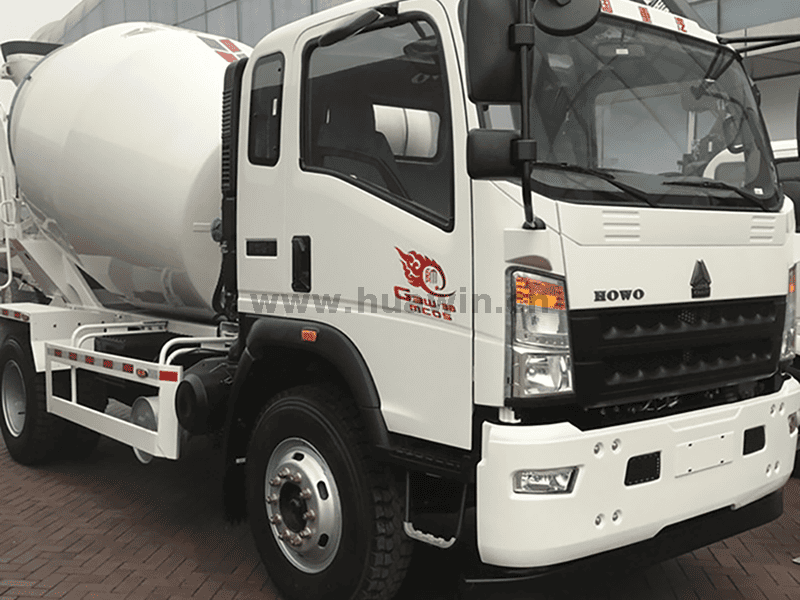

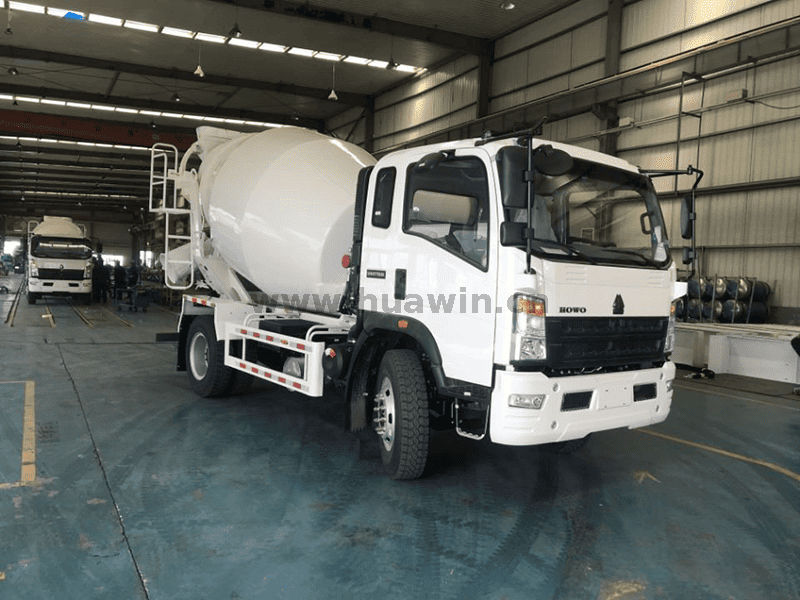

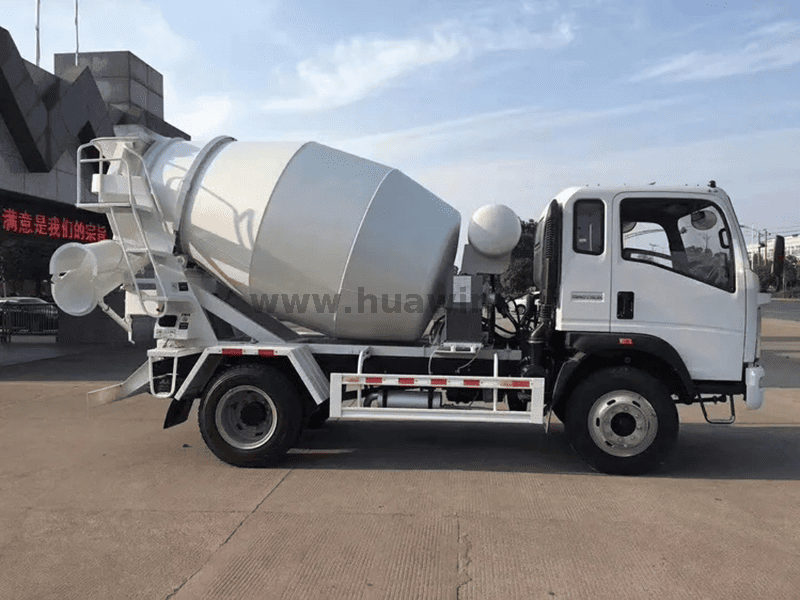

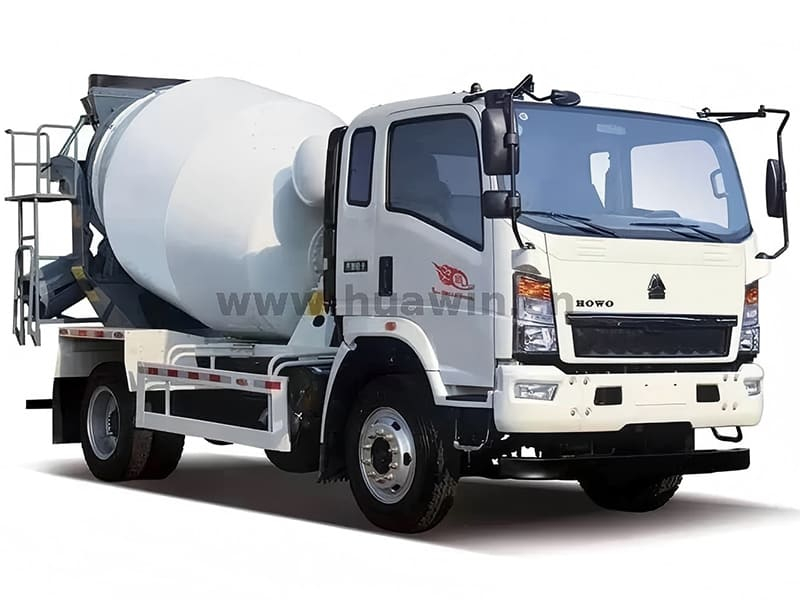

Sinotruk howo 4X2 Mixer truck

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The Sinotruk HOWO 4×2 Mixer Truck features a 4×2 drive configuration, offering a small turning radius and making it ideal for use on narrow construction sites and urban roads. Its compact body and excellent maneuverability make it suitable for medium- to short-distance concrete transportation tasks.

Applications:

The Sinotruk HOWO 4×2 Mixer Truck is suitable for national infrastructure projects such as expressways, high-speed rail lines, and urban overpasses. It is equipped with an engineering dispatch system for centralized dispatching and scheduled batch supply. The tank mixes evenly and discharges quickly, which is conducive to pouring quality control.

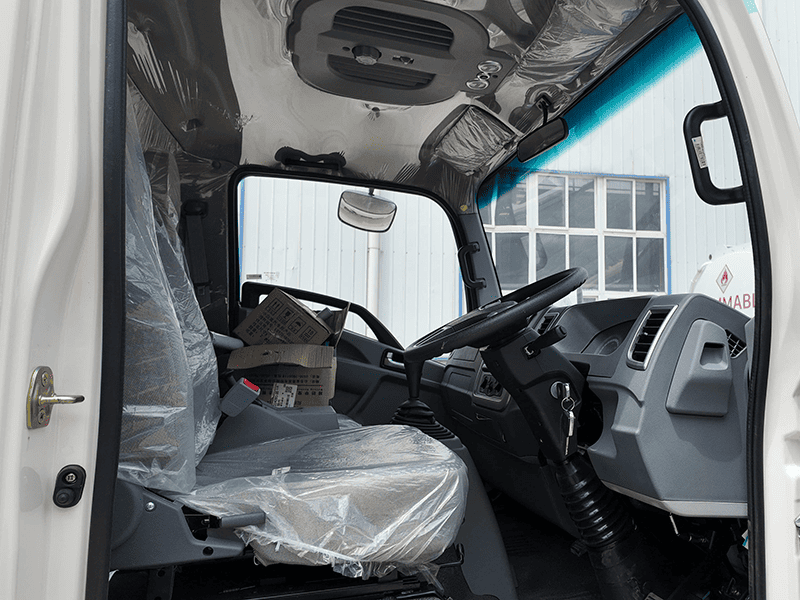

Interior:

The Sinotruk HOWO 4×2 Mixer Truck features a multifunctional steering wheel and clear instrument cluster for convenient operation and intuitive control. The extra-large windshield and wide-view layout provide excellent visibility, helping to improve safety. In terms of sound insulation and comfort, the vehicle is based on Sino-European technical cooperation, with excellent sound insulation systems for the entire vehicle and cab, and well-controlled driving noise.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk HOWO 4×2 Mixer Truck
Engine	WD615.62, 6-cylinder turbocharged direct injection, displacement 9.726 L, Euro 2 emissions, output 266 HP machinery-trucks.com+11howogroup.com+11sinotrukinternation.com+11
Transmission	HW15710, 10 front + 2 reverse gears with extractor (PTO)
Front/Rear Axle	Front HF9 with 9 t load, rear HC16 with 16 t load, with differential lock, speed ratio approx. 5.73
Suspension	Front 10-leaf, rear 12-leaf semi-trailer leaf springs with hydraulic shock absorbers and stabilizer bar
Steering System	ZF hydraulic power-assisted, type ZF8118
Braking System	Air brake (dual circuit) with spring-loaded parking brake and engine brake assist brake
Electrical System	24 V, dual 12 V 165 Ah batteries, 1500 W generator w/fog lights, reverse lights, etc.
Tire Size/Fuel Tank	315/80R22.5 with spare tire; fuel tank capacity approx. 300 L

Features of the mixing system：

Large-capacity mixing tank design:

The tank body is made of high-strength wear-resistant steel plates (such as Q345 or customized manganese steel), which are durable and impact-resistant.

The cylinder body has a reasonable design with a low center of gravity and smooth rotation, ensuring driving stability.

High-efficiency mixing blade structure:

Double-helix agitator blade design for more uniform concrete mixing and better fluidity.

Optimized blade angle and streamlined design improve feeding, mixing, and discharge efficiency.

Special wear-resistant material covers the blades, effectively extending service life and reducing maintenance costs.
