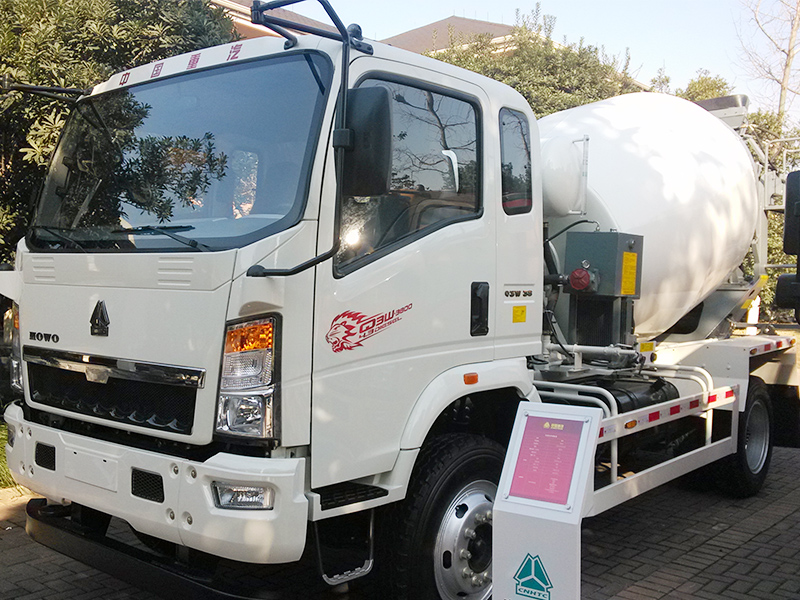

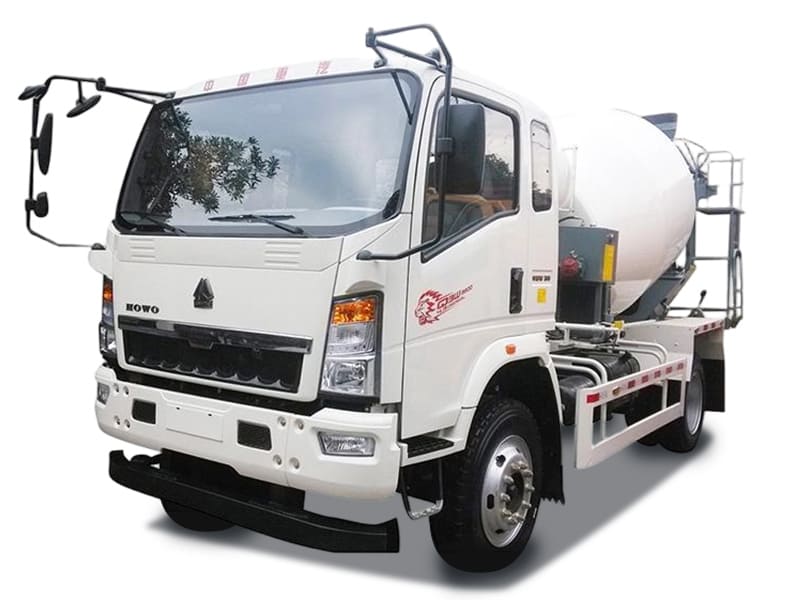

HOWO 4X2 4CBM Concrete Mixer Truck

Availability:
Quantity:

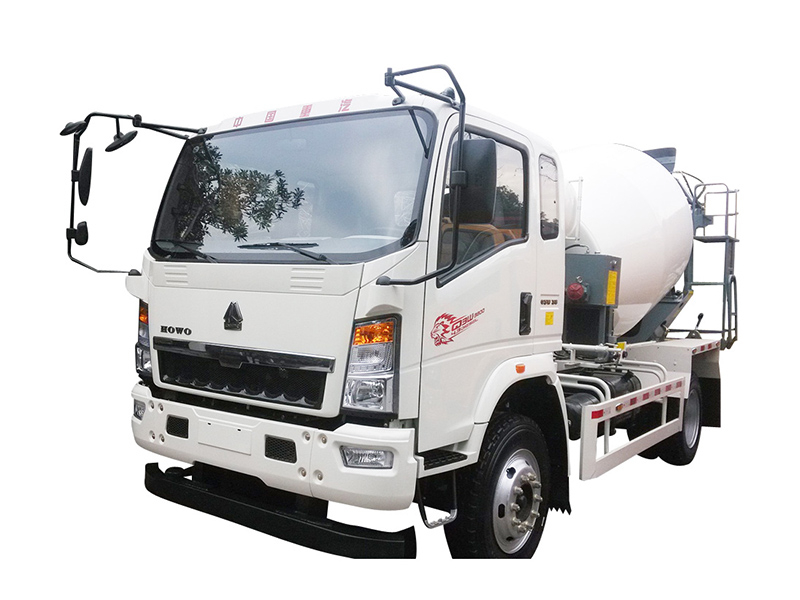

_0003_HOWO 4X2 Concrete mixer truck-1


Cabin

Driving type 4x2      LHD

2080 cabin with two seats, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

6850×2350×2850

Wheel base  (mm)

3800

Weight in KGS

Tare Weight

5800

payload

10000

Front axles loading capacity

5000

Rear axles loading capacity

10000

Max. driving speed(km/h)

87

Engine

Brand

YUCHAI

Model

YC4D130-45

Type

4-stroke direct injection , in-line, water cooling, turbo charged

Horse Power(HP)

130HP

Emission standard

EUROⅡ

Gearbox

WLY653H, 6 Forwards gear & 1 reverse gear

Tire

8.25R20 All Steel Meridian Tyre 7 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake

Mixer volume

4CBM
