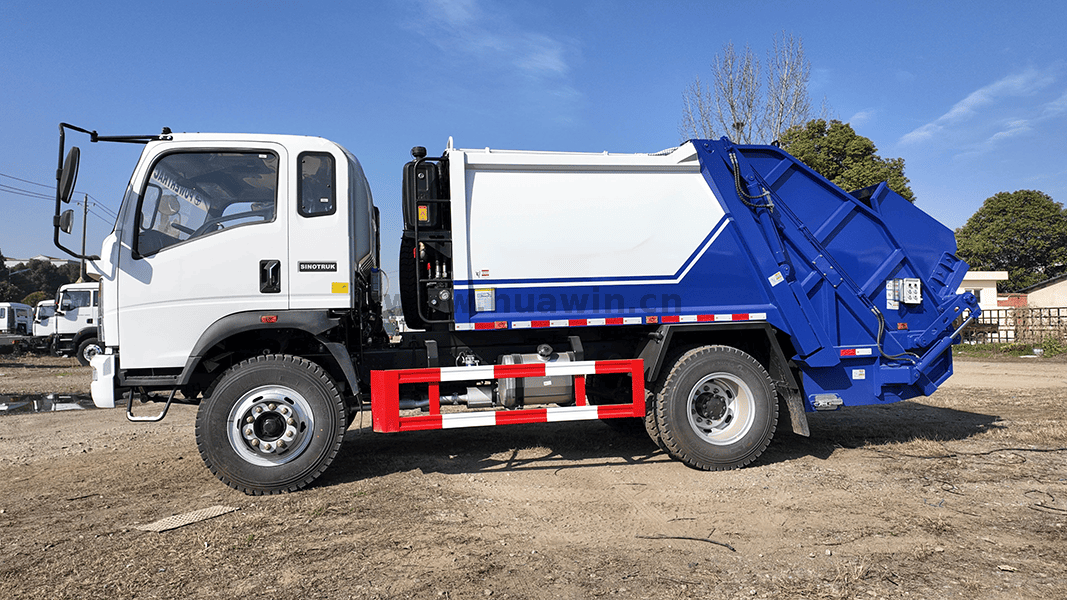

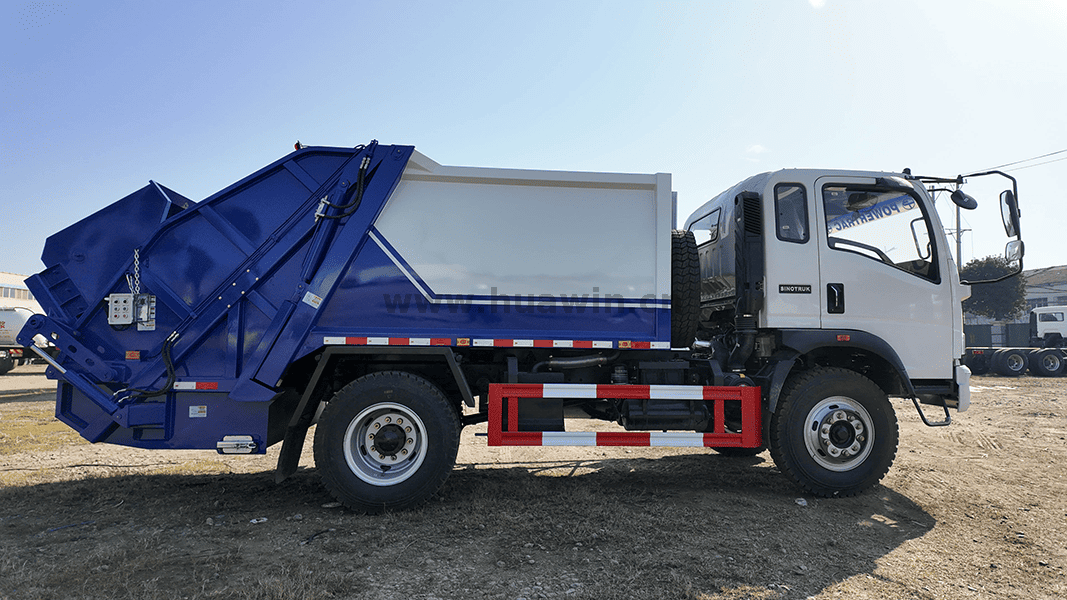

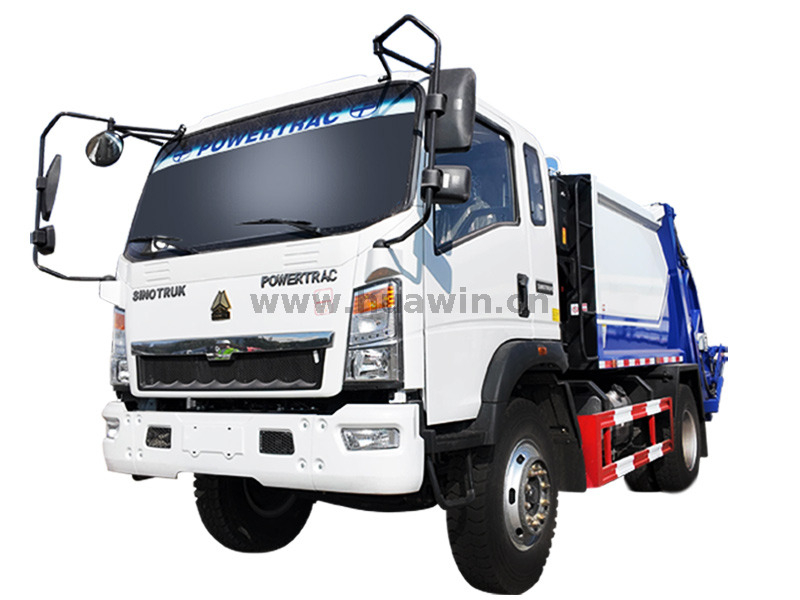

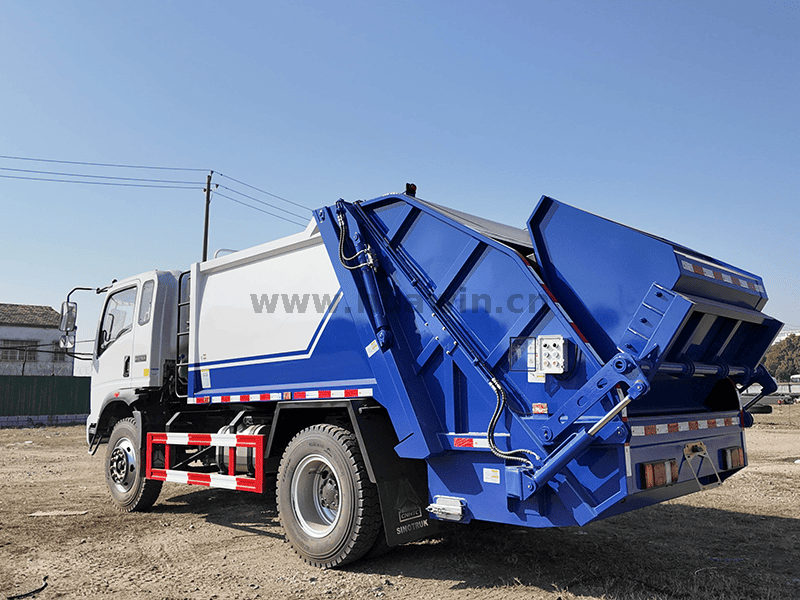

Sinotruk garbage compactor truck is a kind of rear-mounted compressed garbage truck modified by Sinotruk based on HOWO series two-axle (single axle) chassis. The vehicle is mainly used for the collection and compression of urban garbage, with automatic loading, compression, sealed transportation, automatic unloading and other functions, with high efficiency, environmental protection, strong sealing, easy to operate and so on.
Availability: | |
---|---|
Products Showcases:
● One of the biggest and best truck and trailer manufacturer in China
● 30 years of experience in Special Vehicle
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 12-24 months long guarantee time assurance
Features:
Sinotruk garbage compactor truck-4x2 has a reasonable wheelbase and small turning radius, making it suitable for complex working conditions such as city streets, residential areas, and narrow roads. It is also suitable for small and medium-sized garbage collection tasks, especially performing well in daily urban sanitation operations.It also features excellent environmental design with a well-sealed cabin that prevents leakage and odors, meeting urban environmental management requirements. An optional sewage collection tank is available to prevent sewage leakage and reduce secondary pollution.
The Sinotruk garbage compactor truck-4x2 is equipped with a high-performance diesel engine (such as Weichai or Yunnei), which is powerful and fuel-efficient. The chassis has good passability and is suitable for various urban and rural road conditions. Therefore, the chassis is reliable and powerful. At the same time, the compression box is made of high-strength steel plate welding, which is structurally sound and has a long service life. The hydraulic system is reasonably laid out, which is convenient for later maintenance and repair.
Applications:
Sinotruk garbage compactor truck-4x2 is widely used in the collection and transportation of household garbage in main urban areas, commercial streets and residential areas. It is also suitable for short-distance or mid-distance transportation with garbage transfer station or incineration plant, as well as for urban and rural areas and townships, especially for townships or urban villages with narrow roads and many turns. It can effectively solve the problems of untimely garbage collection and insufficient transportation capacity.
![]() | ![]() |
Cab:

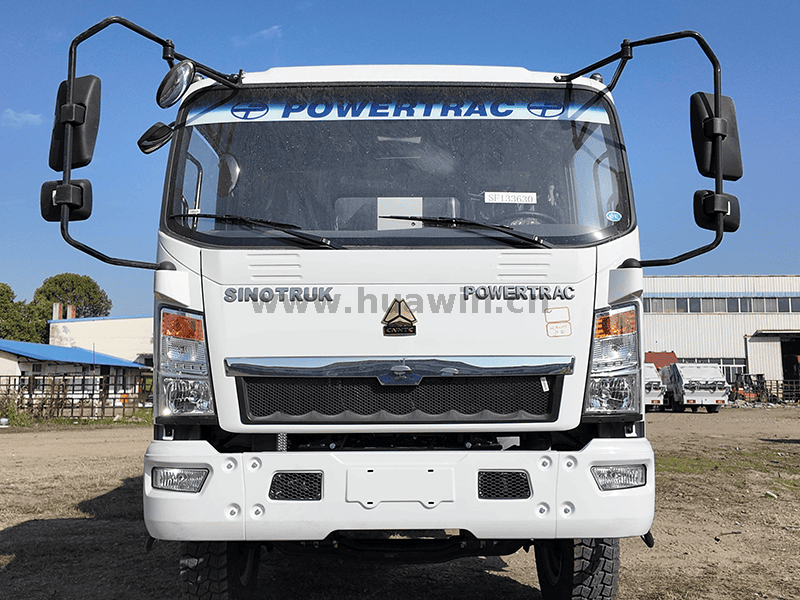

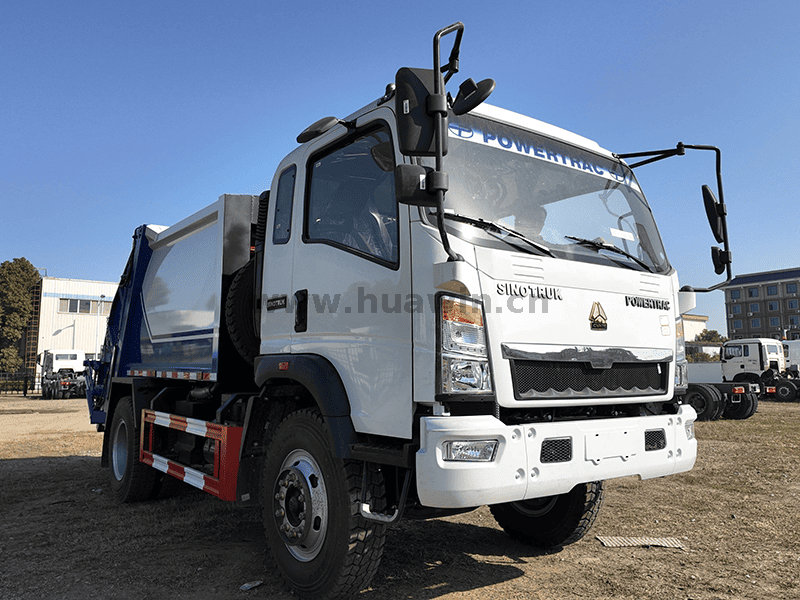

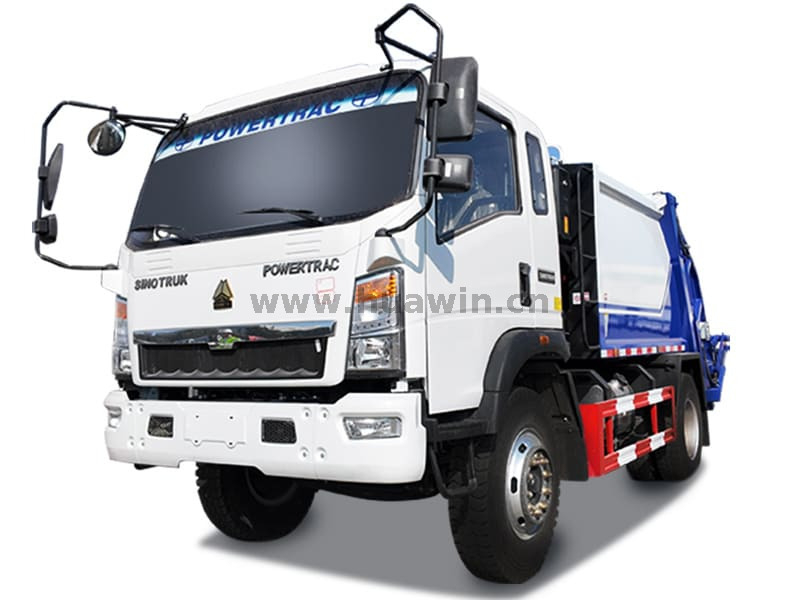

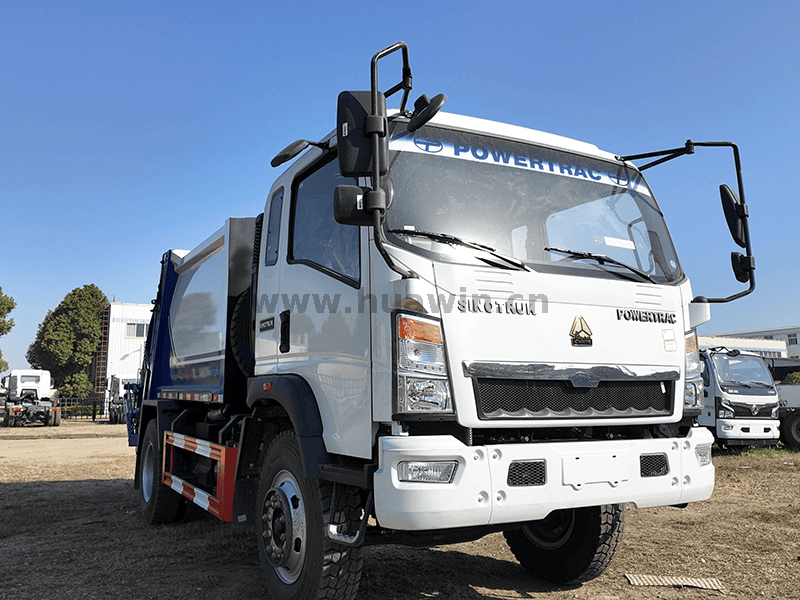

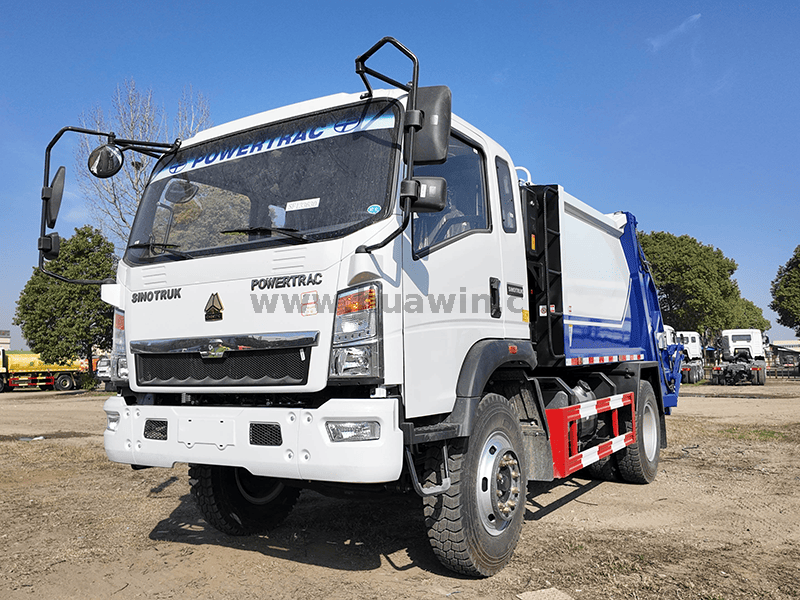

The Sinotruk Garbage Compactor Truck 4×2 features a sleek and elegant design with smooth lines, aligning with modern commercial vehicle aesthetics. It is equipped with a large front windshield for enhanced visibility and improved driving safety. Standard features include halogen headlights or LED daytime running lights to enhance visibility during nighttime driving. The exterior rearview mirrors are heated and electrically adjustable (on certain models), reducing blind spots in rainy or foggy weather.
![]() | ![]() |
Specification:
We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.
Sinotruk garbage compactor truck-4x2 | ||
Core Configuration | Engines | Yuchai YC4E140-33 |
Transmission | WLY6TS55 | |
Suspensions | 9/12+9B | |
Wheelbases | 4700 | |
Chassis | 23D | |
Clutch Assist | YES | |
Spring-Loaded Brake | YES | |
Tapper | Without WLY6TS55 Extractor | |
Maebashi | 3.2t (drum) | |
Rear Axle | 8.0t(drum)/5.286 | |
Rotate | Enhanced Dynamic Rotation | |
Cabs | Cabs | Classic Dream Right Cab/2080/Flat Top Semi-Cab |
Cab Interior | Cab All-Inclusive | |
Seating | Cloth Seat | |
Mirrors | Left/Right L Type New National Standard Rearview Mirror | |
Paintwork | Common paint for cabs | |
Refrigeration | With air conditioning | |
Exhaust Brake | YES | |
Other Standard Equipment | Standard rear lower guard, VIN stamped on right rear of frame, steel air reservoir, premium position near driver (exit), air dryer, sleeper berth, no front underride guards | |
Optional | Import And Export Orders | English nameplate required; English logo; old certificate of conformity; |
Upper Garment | Compression mode | Bi-directional compression |
Compartment volume | Approx. 6.5 cubic meters | |
Filler volume | Approx. 0.9 cubic meters | |
Filler lifting time | 8 to 10 seconds | |
Filling operation cycle time | ≤25 seconds | |
Discharge time | ≤45 sec | |
Rated pressure of hydraulic system | 20 MPa | |
Hydraulic system control mode | Manual Electricity Integration | |
Cylinder type | Double acting piston type | |
Oil pump | Double gear pump | |
Directional valve | Multi-way reversing valve | |
Manipulator configuration | Standard double side barrel manipulator |

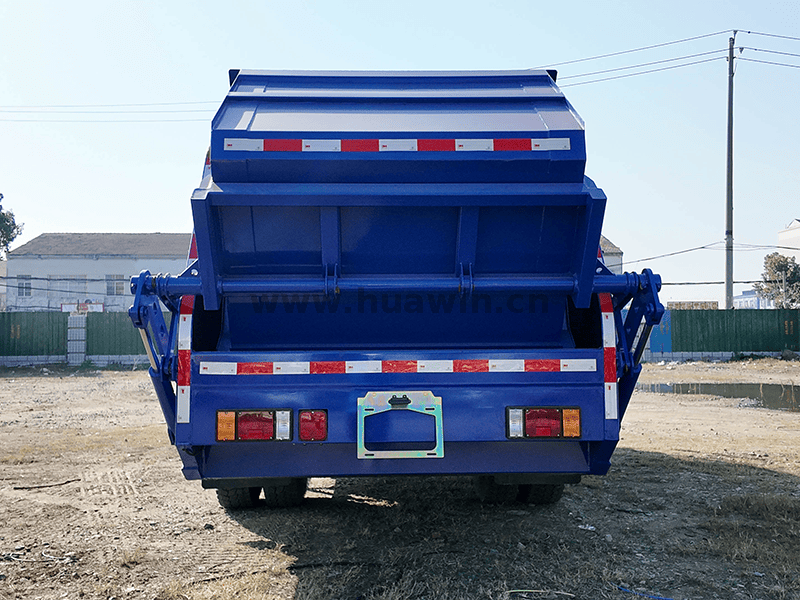

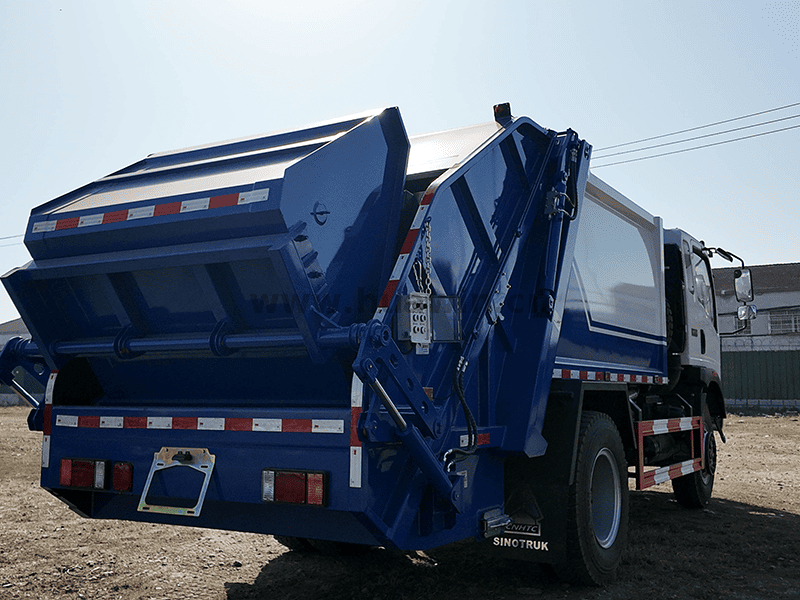

Compression System:
Sinotruk Garbage 4×2 Compactor Truck has the following advantages
High-efficiency compression system:
1:Equipped with a hydraulic compression device and utilizing “bidirectional compression + unloading” technology, the garbage loading capacity is greatly increased and the transportation frequency is reduced.
2:High compression ratio (usually 4:1 or higher) effectively reduces waste volume and improves transportation efficiency.
Easy to operate, intelligent control:
1:Equipped with an electronic control + manual dual control system, it offers flexible operation and can achieve automatic compression and automatic unloading, thereby improving work efficiency.

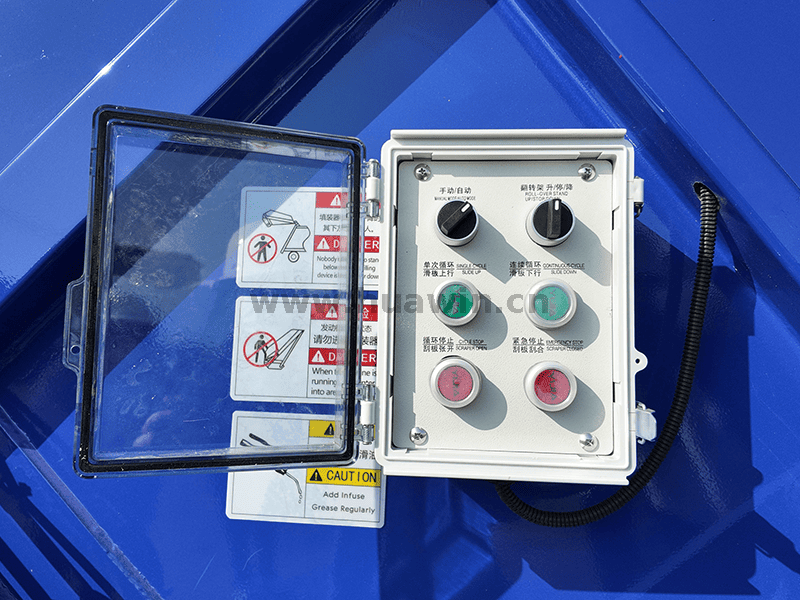

2:The control box is located at the rear of the vehicle for easy operation by workers; some models also support remote control.
![]() | ![]() | ![]() |
