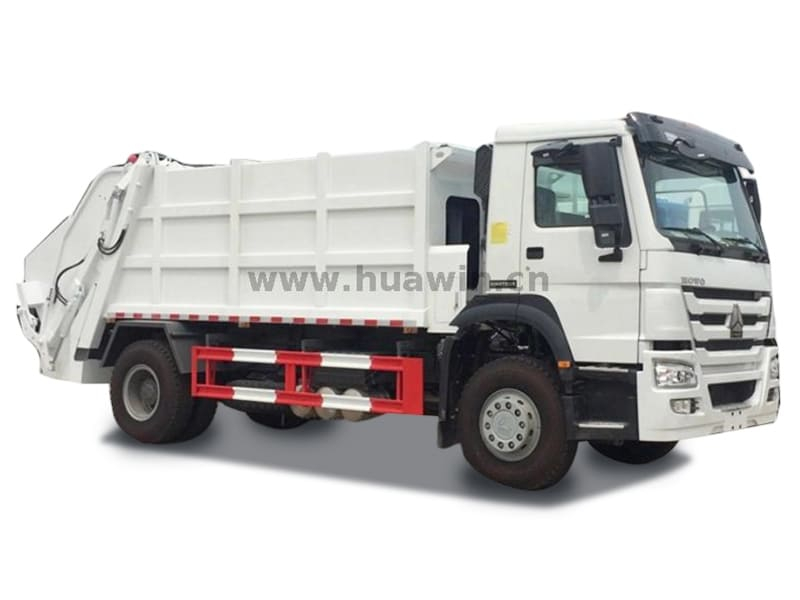

SINOTRUK HOWO 4X2 Heavy Garbage Compactor Truck -12CBM

Garbage truck is used to transport garbage and protect environment.
Availability:
Quantity:
  • ZZ3167M3811B
  • SINOTRUK HOWO

名称SINOTRUK HOWO 4X2 Garbage Compactor Truck-12CBM


详情


Specifications

SINOTRUK HOWO 4X2 Garbage Compactor Truck-12CBM

Chassis  Model

ZZ3167M3811B

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW70 cabin, with two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 290HP (336HP, 371HP, 420HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 1x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

300L

Garbage Box

12CBM, Q235 steel

Pressure of Hydraulic System

20MPa

Filler Volume

2m3

Cycle Time of Filling

≤25 S

Lifting Time of Filler

8-10 S

Time of Discharging

≤45 S

Overall  Dimension

8250x2550x3250mm
