HWPT-1
SINOTRUK HOWO

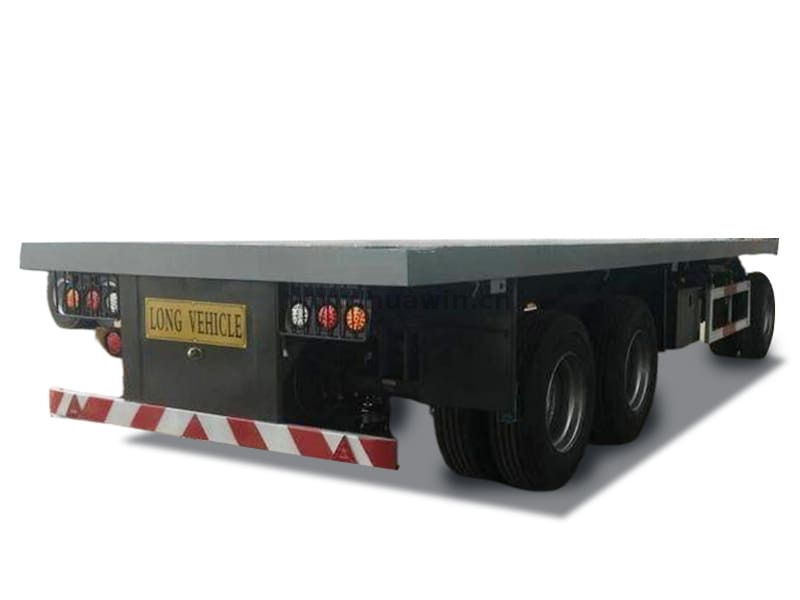

SINOTRUK HUAWIN Three Alxes 40 Feet Full Trailer
Specifications
| DIMENSIONS | |||
| Tare Weight | 8000kg | ||
| Overall Length | 9125mm | ||
| Overall Width | 2500mm | ||
| Payload | 30000kg | ||
| SPECIFICATIONS | |||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
| Axle | 3 axles | ||
| BPW Germany Brand, 13 ton | |||
| Suspension | Heavy duty mechanical suspension | ||
| Floor | 3mm checker plate | ||
| Leaf Spring | 13 piece Leaf spring | ||
| Towing ring | 2” | ||
| Wheel Rim | 9.0-22.5 wheel rim 13 pieces | ||
| Tire | 12R22.5 tire with one spare tire. 13 pieces | ||
| Twist Lock | 4 nos. of ISO twist lock for 30ft container | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
