ZZ4257S3241

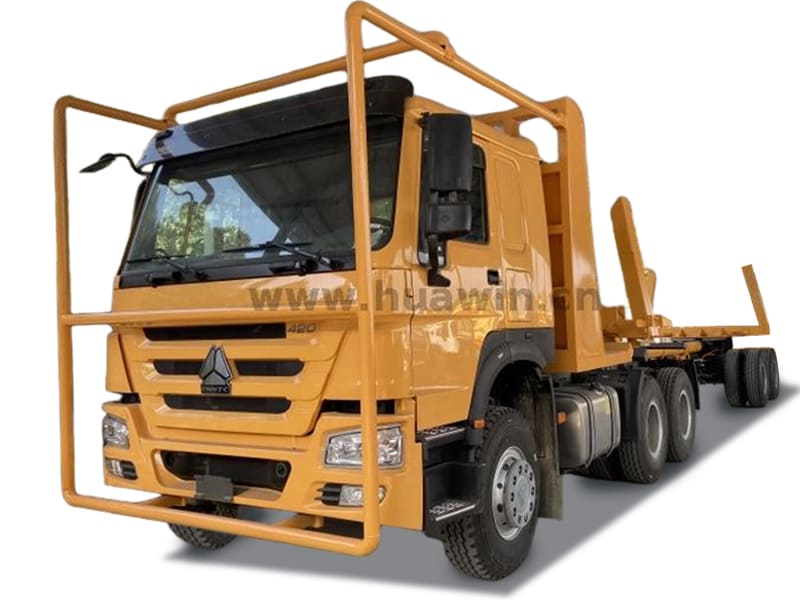

SINOTRUK HOWO Wood Transportation LOG Truck
Specifications
| Specifications of tractor | ||
| Cabin | Driving type 6x4 LHD HOWO 76 new cabin, with one bed, air condition, high steel bumper,70°hydraulically tillable to the front as attached photo for ref. | |
| Weight in KGS | Front axles loading capacity | 1x9000 |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 102 | |
| Engine | Brand | SINOTRUK |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power（HP) | 371HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tire, 11 pcs including one spare | |
| Brakes | Service brake: dual circuit compressed air brake | |
| Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Specifications of trailer | ||
| I Beam & Chassis | Heavy duty and extra durability designed I beam, welded by automatic Submerged-Arc processes. | |
| Axle | FUWA brand, 2 axles, 16 ton loading capacity per axle. | |
| Suspension | 32T single point suspension | |
| Wheel Rim | 9.0-22.5 wheel rim 13 pieces | |
| Tire | 12.00R22.5 radial steel tire with one spare tire. 9 pieces | |
| Spare Tire | One set of spare tire with a carrier | |
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
WARRANTY
1. Twelve months quality guarantee for three key parts axles, engine and transmission or within 100,000km, which comes first for trucks. 6 months quality guarantee for three key parts axles, beam and landing gear or within 50,000km, which comes first for trailers.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
