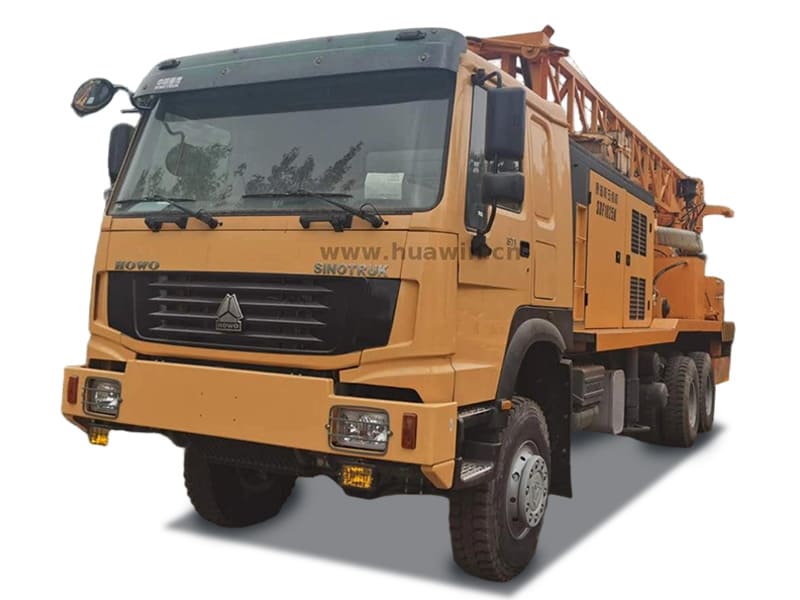

SINOTRUK 6X6 CDC-600K 600m Water Well Drilling Rig Truck

SINOTRUK HOWO 6X6 380HP Well Rig Truck
Availability:
Quantity:
  • CDC-600K
  • SINOTRUK/CTS&COMMAND MACHINE

HOWO 6X6 300Meters, 350meters,400meters, 600 meters Well Drilling Machine

drill rig truck

Specifications

Cabin HOWO 76 cab, with air condition and one bed. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 12500*2550*4300
Wheel base  (mm) 5800+1400
Weight in KGS Tare Weight 32000kgs
Loading capacity 40000
Front axles loading capacity 1x9000
Rear axles loading capacity 2x16000
Max. driving speed(km/h) 102
Engine Brand SINOTRUK
Model WD615.96C, 380HP
Type 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 380HP
Emission standard Euro III
Gearbox HW19710, 10 Forward gears & 2 reverse gears
Steering ZF brand power steering, hydraulic steering with power assistance
Clutch Reinforced diaphragm clutch, diameter 430 mm
Fuel tank 400 L
Tire 12.00R20 steel tyre, 11 pieces including one spare
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Drilling system Drill tower load: 40T
Operation:Two hydraulic support cylinders
Drill tower height:9M or customized

Drill dept: 300m, 350m, 400m, 600m or as customized

Drilling technology can  be  used:  mud  positive  circulation,  DTH-hammer,  air  lift reverse circulation, Mud DTH-hammer.


For drilling system, we can make according to customized.

Feed System (Pull Down Cylinder)

Make & model: CTS &COMMAND MACHINE

Feed cylinder size: ø rod x ø cylinder x stroke: 125mm*95mm*4500mm.

Type of design (two piston rods or one rod): TWO

Min. drilling head traveling stroke (m): 9m

Min. Pull up chain strength in tension: 154,000kg

Min. Pull down chain strength in tension: 100,000 Kg

Min. Pull up capacity (kg): 40,000 kg

Min. Pull down capacity (kg): 30,000 kg

Pull up speed - slow (mpm): ~ 6

Pull up speed - rapid (mpm): ~ 53

Pull down speed - slow (mpm): ~ 5

Pull down speed - rapid (mpm): ~ 37

Feed system is chain type and supported by roller

1

Leveling Jacks

Make & model: CZT- 1& COMMAND MACHINE]                Leveling Jack Cylinder Size: ø rod x ø cylinder x stroke (mm) Min. Lifting capacity of each jack (kg): 30,000

Min. Ground clearance (mm): 750

jack

Top Head Rotary Gear Box (Drill Head)

Make & model: CD-6 &COMMAND MACHINE]

Reduction ratio: 21:56

Top drive spindle bore (mm): [63MM]

Min. spindle pull up capacity (kg): 40,000 kg

Spindle speed range (rpm):

Low speed range & (Min. torque - kg-m): 0-60 & 2000 kg-m     High speed range & (Min. torque - kg-m): 60 – 120 & 900 kg-m

top head

Deck Engine

Make and model cummins QSX15-C600

Engine Hp and rpm: 600HP and 1800 rpm



Mud Pump

Make & model: BW1000/6 &COMMAND MACHINE

Piston diameter and stroke (in): 4 inch

Min. discharge capacity (l/min): 2000

Min. Working pressure (psi): 880

Suction and delivery valve type: 3 inch

mud pump

Mast

Min. Gross nominal capacity (kg): 60,000 kg

Maximum hook load capacity (kg): 50,000 kg

Mast Length, width & depth (mm): 14000mm *1200mm*1000mm]

Min. over all height from the ground up to top of the mast (m): 12m

1 mast

Main Hoist

Make & model: [YSD-4 &COMMAND MACHINE]

Wire rope diameter (mm) & length (m): ø16 x 75

Min. hoisting capacity (kg): 40,000

Minimum hoisting speed (m/min):45

1 main hoist

Power Torque

Make & model: [CXK-6 & COMMAND MACHINE]

Min. loading capacity (kg): 40,000 kg

Min. break out torque (kg-m): 600



Water/ Foam Injection Pump

Make & model: CPM-3 &COMMAND MACHINE

Piston diameter and stroke (in): 90 L/min

Min. discharge capacity (l/min): 90

Min. Working pressure bar: 40 BAR

Suction and delivery valve type: 1 inc

water foam1
