SINOTRUK HOWO Heavy Loading Intelligent Road Maintenance Sprayer

Availability:
Quantity:
  • ZZ1167M4617D4
  • SINOTRUK HOWO

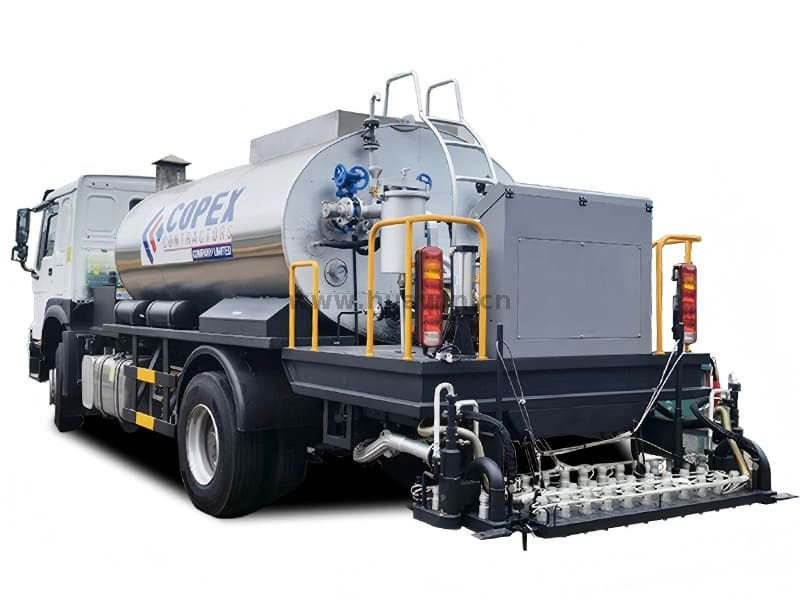

SINOTRUK HOWO heavy loading intelligent road maintenance sprayer

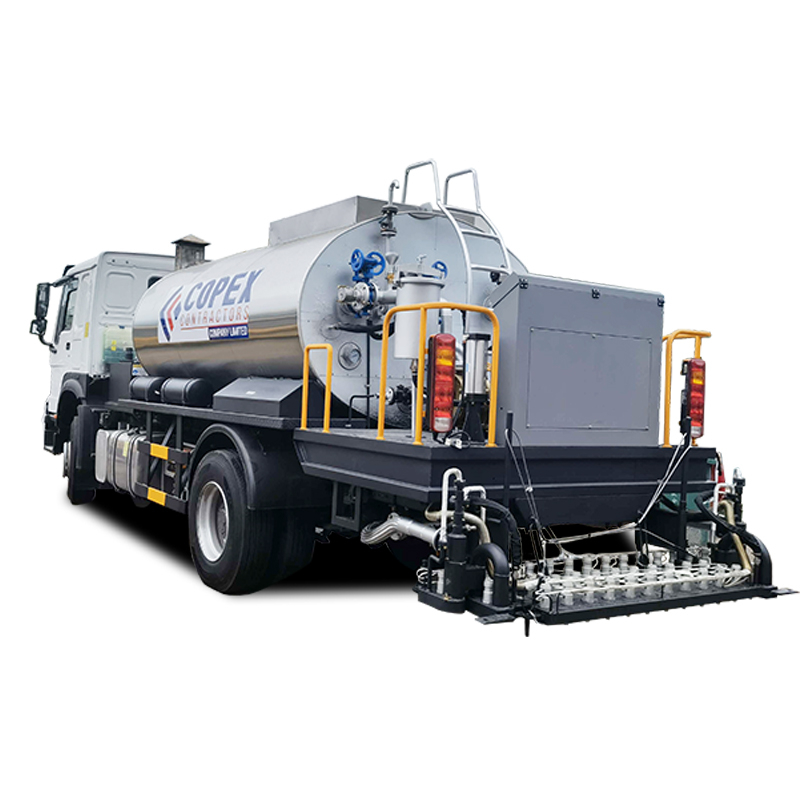

asphalt distribution truck3

Specifications

Cabin HW 76 standard cab, with one bed and Air Condition, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 9000×2500×3250
Wheel base  (mm) 4600
Wheel track  (front/rear) (mm) 2022/1830
Approach/Departure angle(°) 16/10.5
Weight in KGS Tare Weight 6910
Front axles loading capacity 1x7000
Rear axles loading capacity 1x16000
Max. driving speed(km/h) 102
Engine Brand SINOTRUK
Model WD615.47
Type 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371
Emission standard Euro Ⅱ
Gearbox HW13710, 10 Forwards gear & 2 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF brand, power steering, hydraulic steering with power assistance
Fuel tank (L) 400
Tire 12R22.5 tubeless tyre 7 pcs including one spare tire
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Tank Stainless steel tank, 10,000liters.
Hydraulic system Proportional valve , automatic reversing valve and overflow valve, asphalt pump hydraulic drive motor, hydraulic pump or engine power take-off
Control system Intelligent computer control in cabin.
Spray Width 4.5meters.
