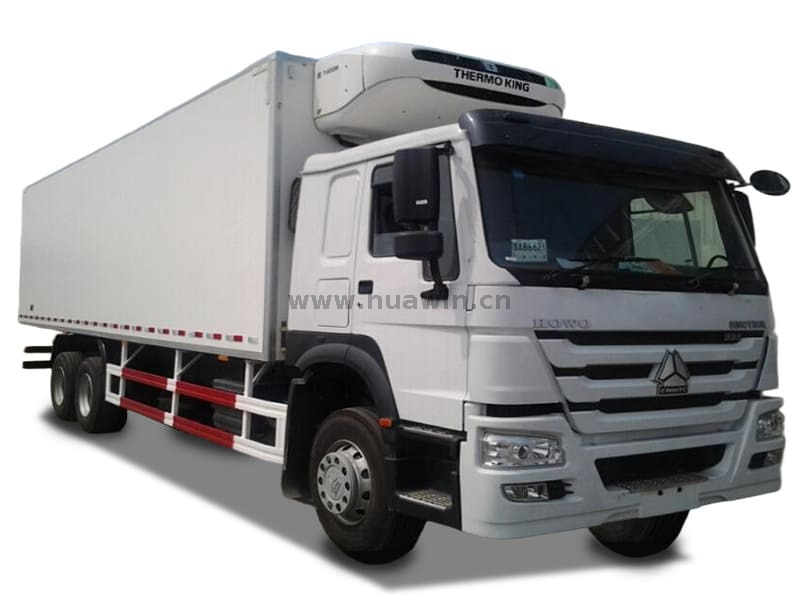

SINOTRUK HOWO 6X4 Refrigerator Truck

Refrigerator truck is used for transportation of fish, meat, milk, vegetables and other cargo which need to store in a certain temperature.
Availability:
Quantity:
  • ZZ1107D3815
  • SINOTRUK HOWO

SINOTRUK HOWO 6X4 Refrigerator Truck

howo refrigerator truck

Specifications:

Vehicle Main Dimensions Overall dimensions (L x W x H) mm 9800×2545×3980
Carriage Size (L x W x H) mm 7100x2500x2500
Wheel base  (mm) 4300+1400
Wheel track  (front/rear) (mm) 2022/1830
Weight in KGS Tare Weight 10000
payload 30000
Front axles loading capacity 1x7000
Rear axles loading capacity 2x16000
Max. driving speed 80km/h
Engine Brand SINOTRUK
Model WD615.47
Type 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse PowerHP) 371
Emission standard Euro
Gearbox HW19710,10 Forwards gear & 2 reverse gear
Steering ZF8198 power steering, hydraulic steering with power assistance
Clutch Reinforced diaphragm clutch, diameter 430 mm
Fuel tank 400 L
Tire 315/80R22.5 tubeless tire, 11 pieces including one spare
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Van box Size:7100*2400*2400mm, high density polyurethane as insulation layer.
With aluminum alloy rail on the floor for better circulation of the cold air in the van.
Cooling system American brand Carrier S850.
 Constant evaporator airflow
 Robust design
 High reliability
 Extreme low-noise capabilities
 High cooling performance
