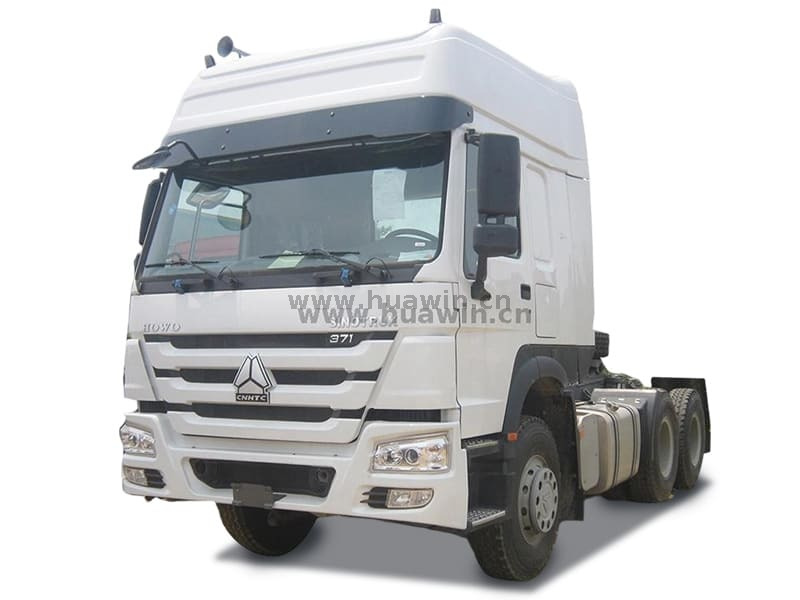

SINOTRUK HOWO 6×4 Tractor Head for Africa

HW 76 standard cab, with one bed and Air Condition, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

6850×2550×3250

Wheel base  (mm)

3200

Wheel track  (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

16/42

Weight in KGS

Tare Weight

9200

Hauling Capacity

50000

Front axles loading capacity

1x7000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

102

Engine

Brand

Sinotruk

Model

WD615.47

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371@2200 rpm

Emission standard

Euro II

Gearbox

HW19710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF,power steering, hydraulic steering with power assistance

Fuel tank (L)

400

Tire

12R22.5  tyre 11 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
