SINOTRUK HOWO 4×2 Tractor Truck with Strong Horse Power

Basic Info:

Color:Optional   Logo:Can be customized as your request
Origin:China      Package:Nude
Availability:
Quantity:
  • ZZ4187N3511W
  • HOWO

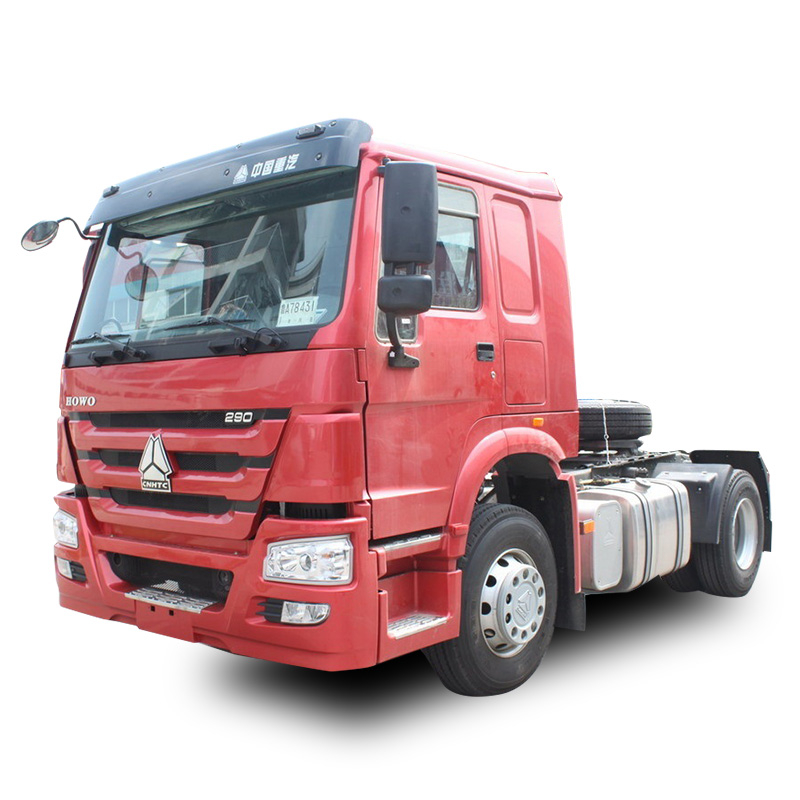

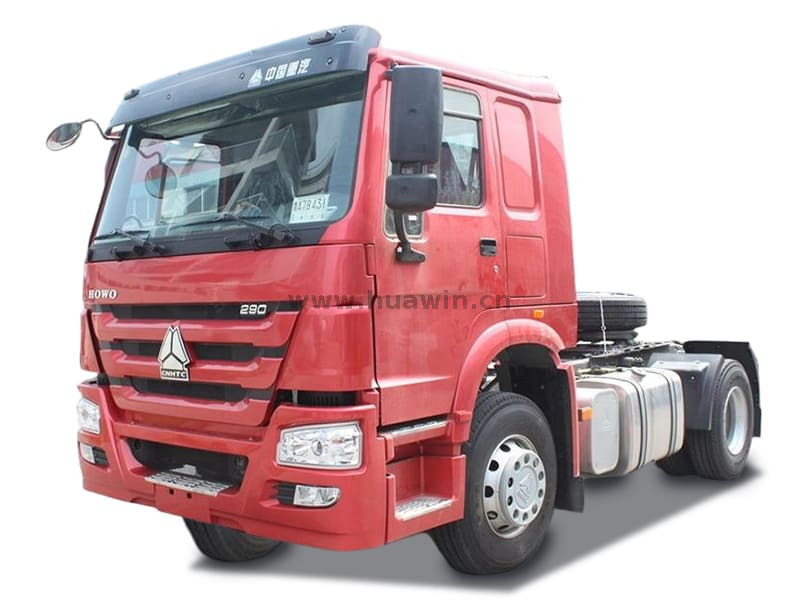

SINOTRUK HOWO 4×2 Tractor Truck with Strong Horse Power
HOWO 4×2 Tractor Truck

Specifications:

 Cabin

Driving type 4x2   LHD/RHD
Model:
ZZ4187N3511W

HW76 Lengthen cab,single bunk,safety belts,left hand driving,air conditioner.

Carriage Dimensions

6110x2496x2958 mm

Wheel Base

3500 mm

GVW

18000kg

Front axle loading capacity

1 x 7000

Rear axles loading capacity

1 x 16000

Engine

Brand

Sinotruk

Model

WD615.69

Type

6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Displacement

9.726L

Bore x Stroke

126x130mm

Horse Power (HP)

336

Emission standard

Euro II

Max Speed

102 km/h

Tire

12.00-20, 12.00R20, 295/80R22.5, 12R22.5, 315/80R22.5

Transmission

HW15710 or HW19710 transmission ,10 forward and 2 reverse

Steering

ZF8098

Oil Tank

400L Aluminum alloy fuel tank

Fifth wheel

50# (2 inch), 90#(3.5 inch)

Brake System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Auxiliary brake:engine exhaust valve brake

Electrics

Operating voltage:24V,negative grounded

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light

Option

Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Metal Pipeline;Engine Protective Board
