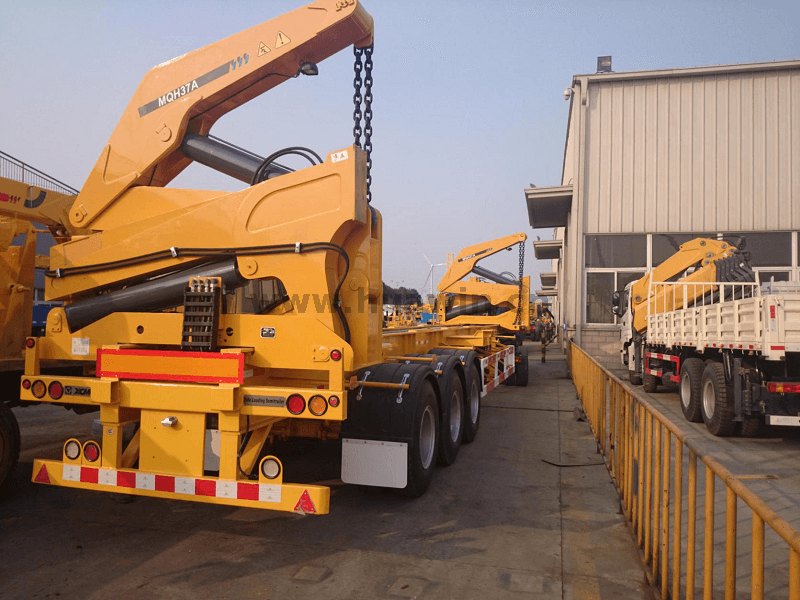

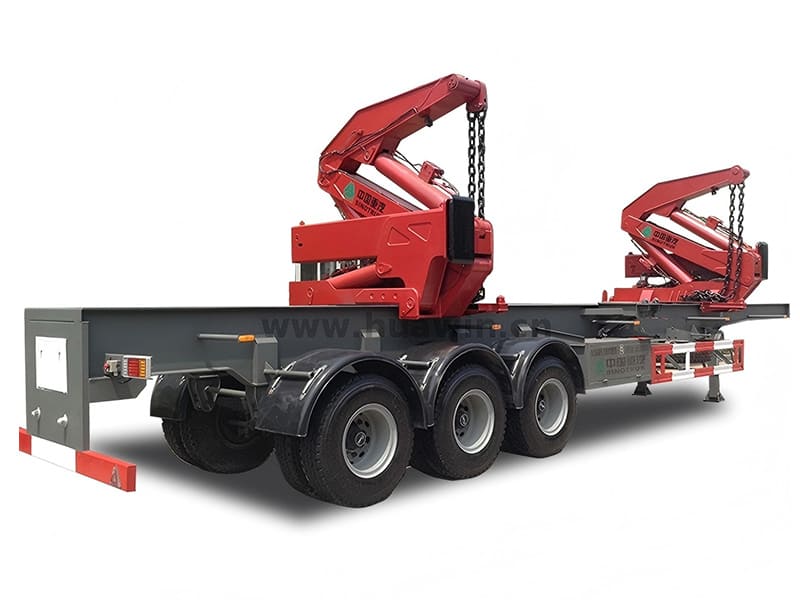

SINOTRUK 3 Axles 20GP/40HQ Side Crane Trailer

SINOTRUK Self Loading Crane Trailer with heavy duty and extra durability designed I beam is your best choice for long and short distance logistics.SINOTRUK Self Loading Crane Trailer special used at port, with high loading capacity, light self-weight, it's a high cost effective product.
Color:
Availability:
Quantity:
  • SGZ
  • SINOTRUK

3 axle side crane

Lifting Performance

Model

MQH37A


Max. lifting capacity (kg)

37000


Max. working range (mm)

4000


Max. stabilizer outreach (mm)

3200

Weight

Curb mass (kg)

14500


Mass of side lifter (kg)

7250


Maximum gross mass (kg)

40000

Dimension

Outline dimension of semi-trailer (L×W×H) (mm)

14100×2500×4000


Outline dimension of side lifter(L×W×H) (mm)

1020×2500×2490


Wheel base (mm)

8000+1350+1350


Track(front axle/rear axle) (mm)

1820/1820/1820


Front overhang / Rear overhang (°)

-/2370

Tire

11.00R20 tire, in total 13 pcs including one spare tire

ABS

WABCO  4S/2M
