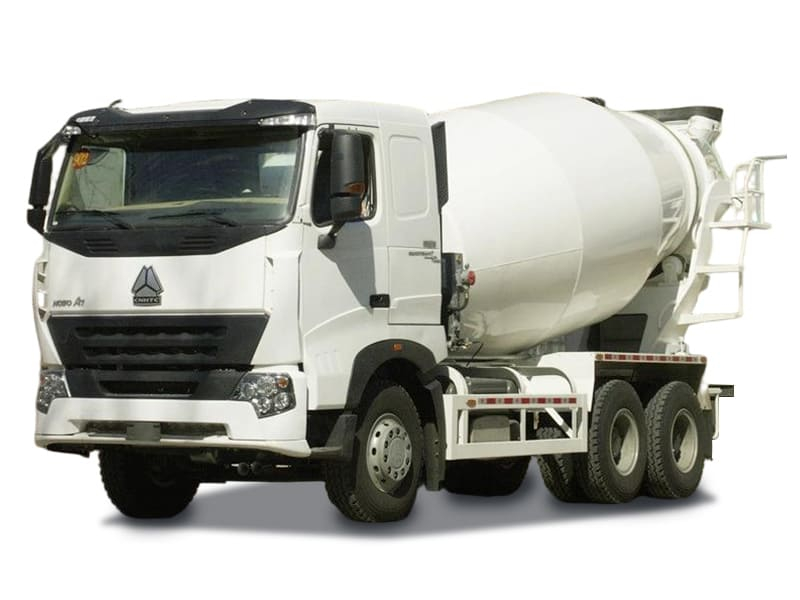

HOWO 6X4 Concrete Mixer Truck-10CBM

Availability:
Quantity:

_0004_concrete-mixer-truck


Cabin

HOWO 76 Standard Cab

With one bed and air condition, 70° hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

(L x W x H)mm

9300x2500x3950

Wheel base  (mm)

3825+1350

Wheel track  (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

16/24

Weight in KGS

Tare Weight

13500

Loading Capacity

30000

Front axles loading capacity

1x9000

Rear axles loading capacity

2x16000

Engine

Brand

Sinotruk

Model

WD615.69

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

336

Emission standard

Euro Ⅱ

Gearbox

HW19710 , 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

400

Tire

12R22.5 Tubeless Radial Tyre, 11 pieces including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Mixer Body


Thickness

End plate

6mm high tensile strength steel

Mixer body

5 mm high tensile strength steel

Mixer body Volume

M3

10 M3


Hydraulics

Motor, Pump

ARK Brand

Gear box

TOP Brand


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
