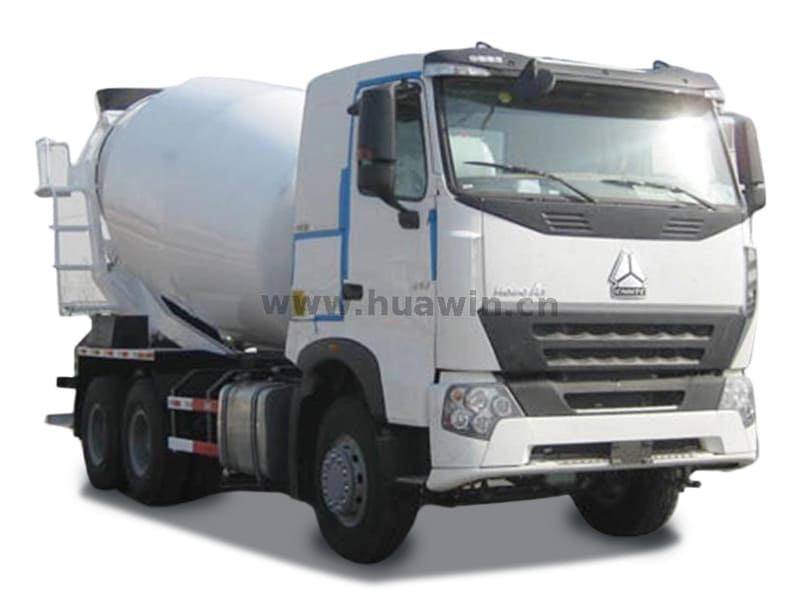

SINOTRUK A7 6x4 Concrete Mixer Truck - 12CBM

The concrete mixer truck is to transport the concrete from the pumping station to the construction site. During the transportation process, the mixer drum will always be kept rotating to ensure that the carried concrete will not solidify.
Availability:
Quantity:
  • ZZ1257N4041N1
  • SINOTRUK A7

名称SINOTRUK A7 6x4 Concrete Mixer Truck - 12CBM


详情


Specifications

SINOTRUK A7 6x4 Concrete Mixer Truck - 12CBM

Chassis  Model

ZZ1257N4041N1

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

A7-P cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 420HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12.00R20, steel tires with one spare tire.

Fuel  Tank

400L

Mixer Tanker

12CBM

Hydraulics

Motor & Pump: Italian Brand, ARK Reducer: Italian Brand, TOP

Overall  Dimension

10600x2600x3950mm
