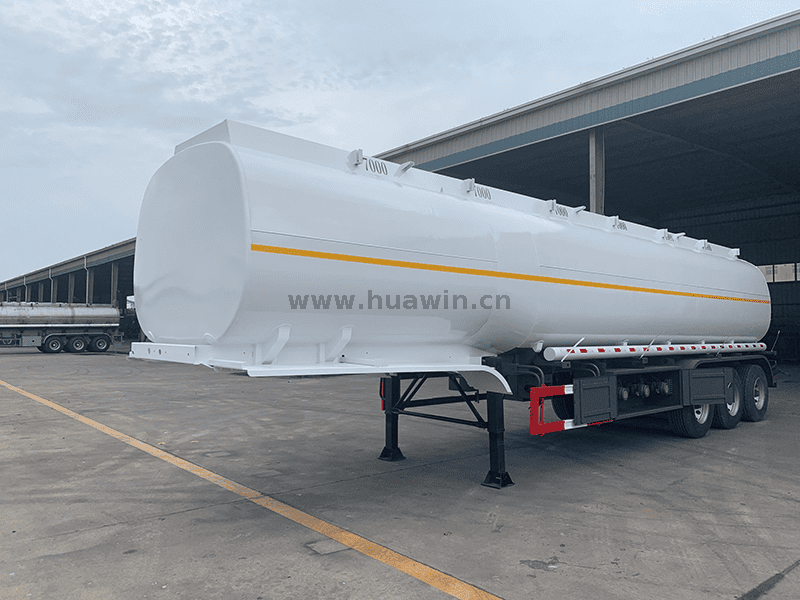

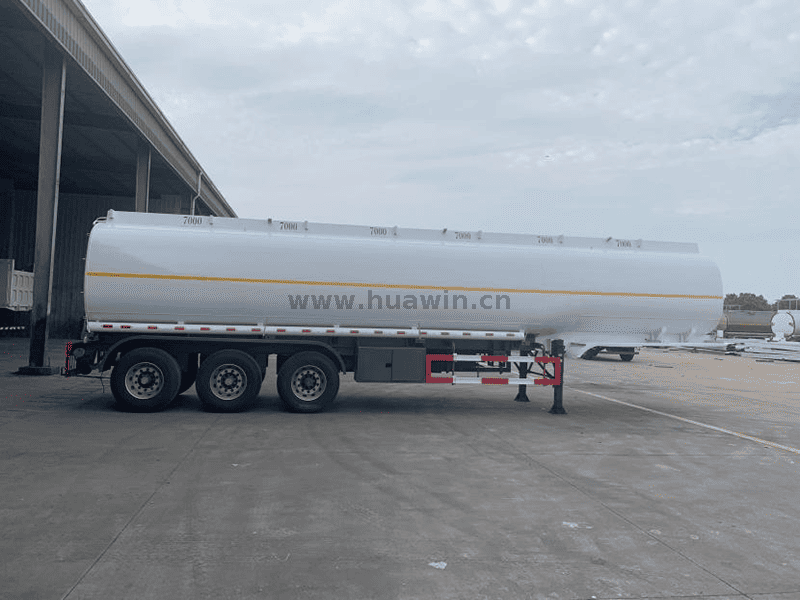

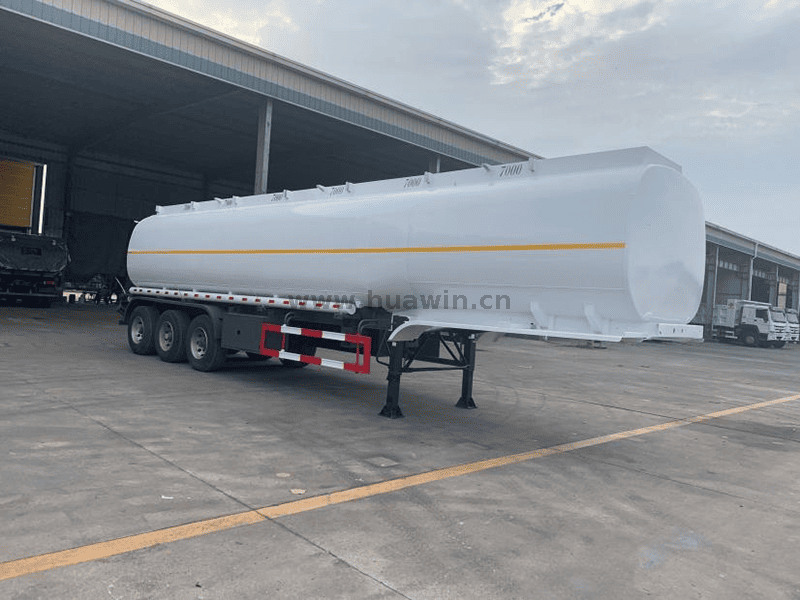

SINOTRUK CIMC 3 Axles 42CBM Carbon Steel Fuel Tanker Semi Trailer

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Applications:

1. Long-haul mainline oil product transportation

Suitable for inter-provincial/inter-regional transportation of refined oil, crude oil and chemical liquids, meeting the needs of long-distance, large-volume and high-efficiency logistics.

2. Urban and regional distribution

Adapted for short-distance oil distribution to gas stations, oil depots, chemical parks, ports and terminals, flexibly coping with urban roads and complex road conditions.

3. Professional hazardous chemical transportation

Compliant with hazardous chemical transportation regulations and standards, capable of safely transporting diesel, gasoline, aviation kerosene, industrial solvents and other flammable and combustible liquids.

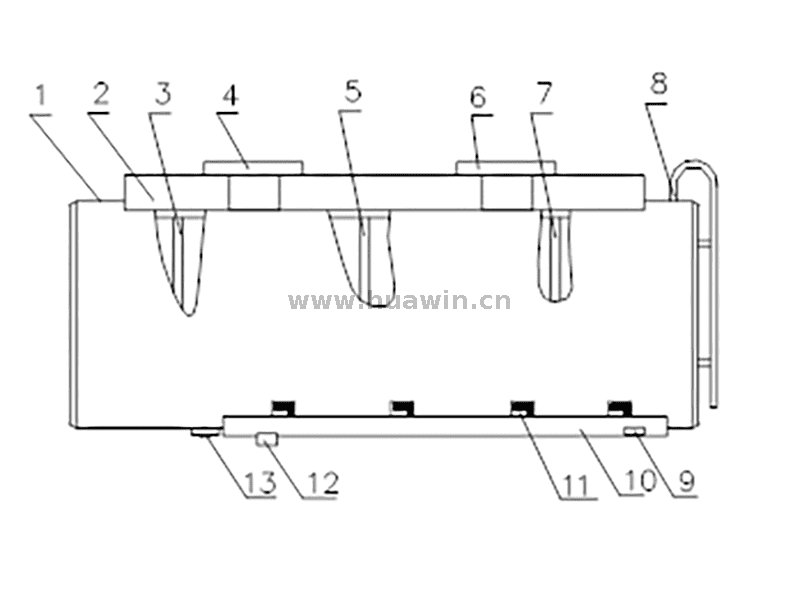

Oil tank structure sketch：

1. tank    2. coaming  3. oil baffle plate    4. front manhole    5. middle fence plate    6. rear manhole    7. horizontal oil baffle plate    8. ladder    9. riding bolt seat      10. tank foot   11. platform supporting feet   12. location plate   13. fuel discharge outlet

The drawing of refueling：

1. oil tank  2. upper manhole   3. oil pump   4. four position three-way ball valve   5. front straight ball valve   6. rear straight ball valve   7. four position three-way valve  8. strainer  9. rear auto-flow ball valve

3 Axles 42CBM Carbon Steel Fuel Tanker Semi Trailer’s specifications：

3 Axles 42CBM Carbon Steel Fuel Tanker Semi Trailer
Overall Length	12000mm
Overall Width	2500mm
Overall Height	3500mm
Tare Weight	10000KGS
Tanker Volume	42000 liters, including 5% space allowance
Tank body
Shape	Mono block Cylinder, 6 compartments
Total Volume（m3）	42000 Liters
Compartment	6 compartments, 7000 liters/compartment
Tanker Body Material	Carbon Steel
Compartment plate	Carbon Steel
End plate	Carbon Steel
Manhole cover	API manhole cover, 20 inches, 6 sets with 6 breather valves, With a 10-inch emergency release device, With built-in breathing valve
Oil dip rod	6 sets
Bottom Valve	One API Pneumatic Bottom Valve
Discharging valve	6 sets ∮100mm discharging valves
Discharging Pipe	4”rubber hose, 2 pcs
Chassis
Main Beams	Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation
Axle	3 axles*13T, FUWA brand
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear, E100
King Pin	JOST brand 2” bolt-in king pin
Suspension	Mechanical suspension
Pneumatic Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks.
Tire	12R22.5 tire, in total 13 pieces
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Ladder	Removable aluminum alloy ladder
Ground connection	6 electrostatic copper sheets are installed on both sides of the tank, 1 electrostatic ground
Extinguisher	8KG, 2 pieces
Light & Circuit	ISO 7 pin. LED light
Accessories	With standard tool box
Vapour recovery	With vapour recovery
ABS	Optional
Anti-overflow device	Optional

Feature:

1. 6 Equal Compartments for Multi-Product Transportation Without Cross-Contamination

The tank is divided into 6 independent compartments, 7m³ each, with a total volume of 42m³. It can load different oil/chemical liquids simultaneously to avoid cross-contamination, meeting multi-product and small-batch distribution needs.

2. High-Strength Carbon Steel Material, Sturdy and Deformation-Resistant

The tank body is made of high-strength carbon steel plates with excellent welding technology, featuring superior pressure resistance, impact resistance and fatigue resistance, adapting to complex road conditions and long-term heavy-duty transportation for a longer service life.

3. European Standard Manhole with Oil Gauge for Intuitive and Accurate Metering

Equipped with European standard manholes for good sealing and safe operation; built-in oil gauges allow direct reading of liquid level in each compartment, enabling fast and accurate metering to improve loading/unloading and settlement efficiency.

4. Emergency Bottom Valve + Ball Valve + European Standard Discharge Valve for Safe and Efficient Unloading

Each compartment is equipped with an emergency bottom valve for quick oil circuit cut-off in case of emergency to prevent leakage; matched with ball valves and European standard discharge valves, it features convenient operation and reliable sealing, meeting standardized unloading and fast turnover requirements.

5. Safety Handrail on Tank Top for Guaranteed Operation Safety

The surrounding safety handrail on the tank top complies with safety operation specifications, facilitating personnel to conduct inspection, oil gauging, tank cleaning and other operations on the tank top, effectively preventing fall risks and improving operation safety.
