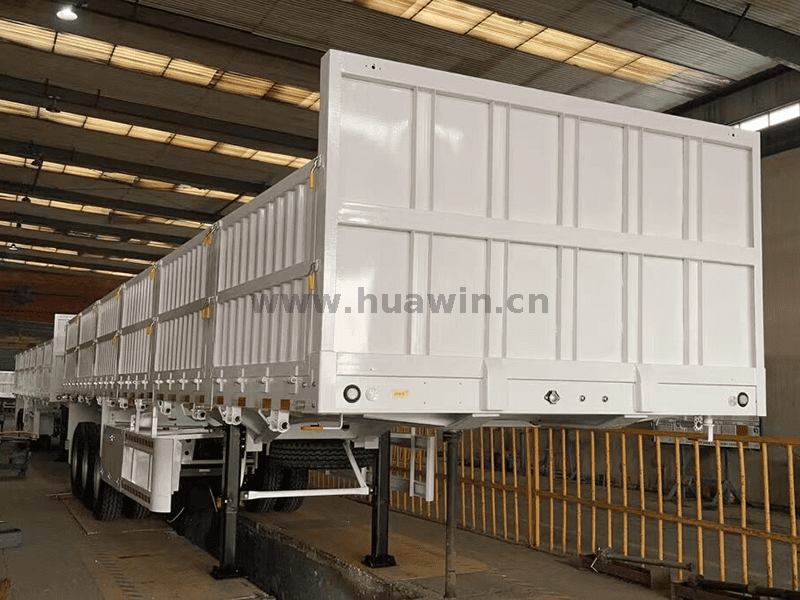

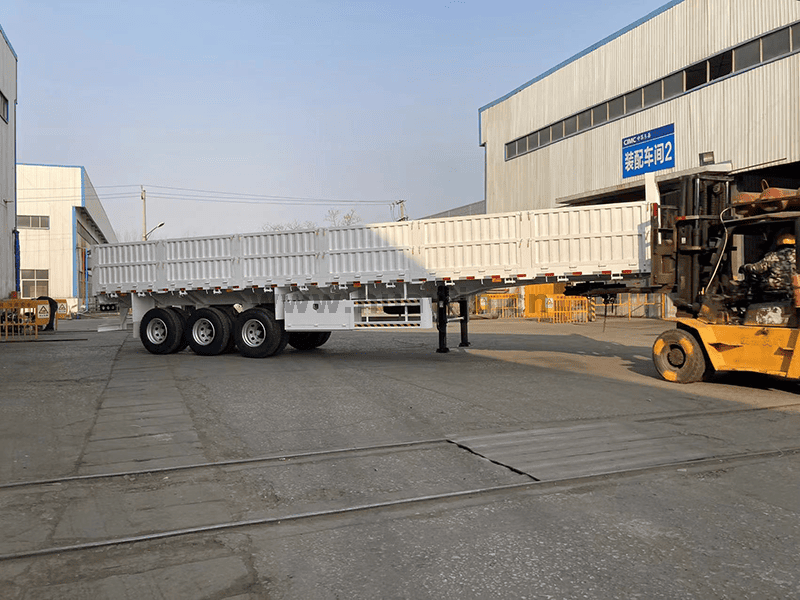

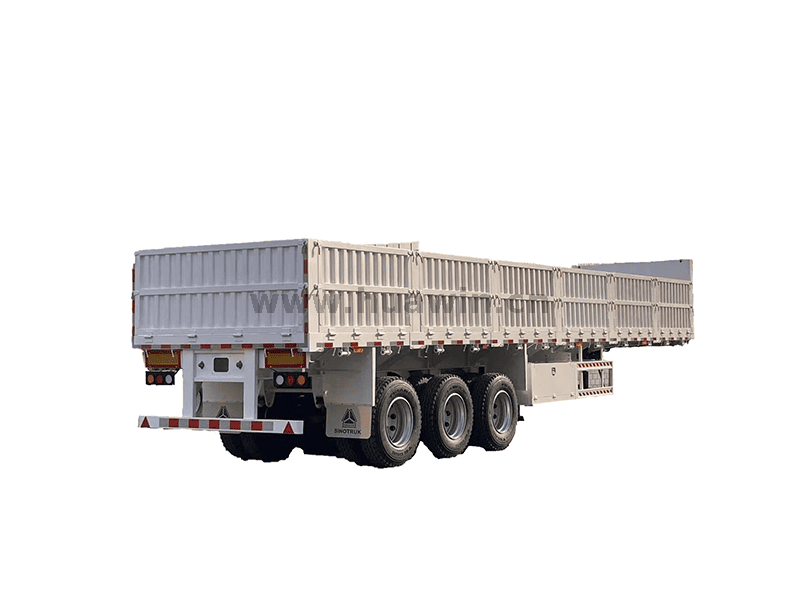

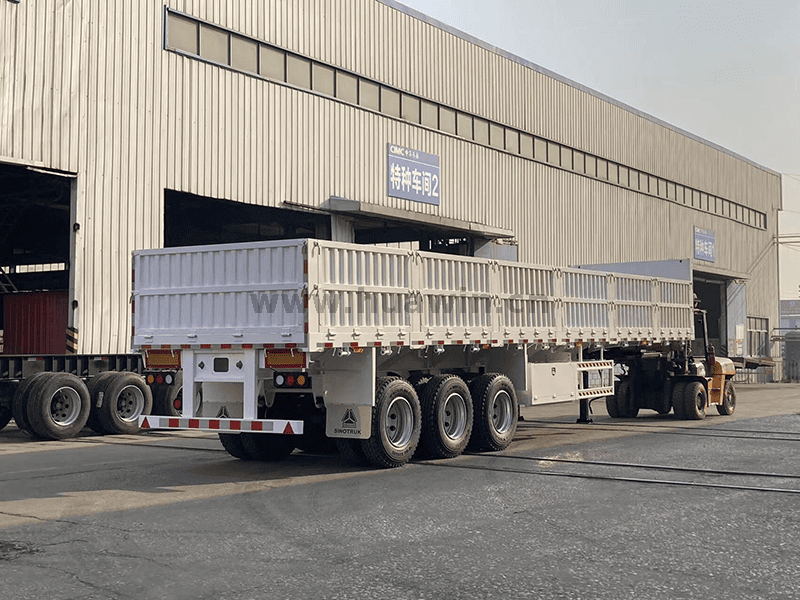

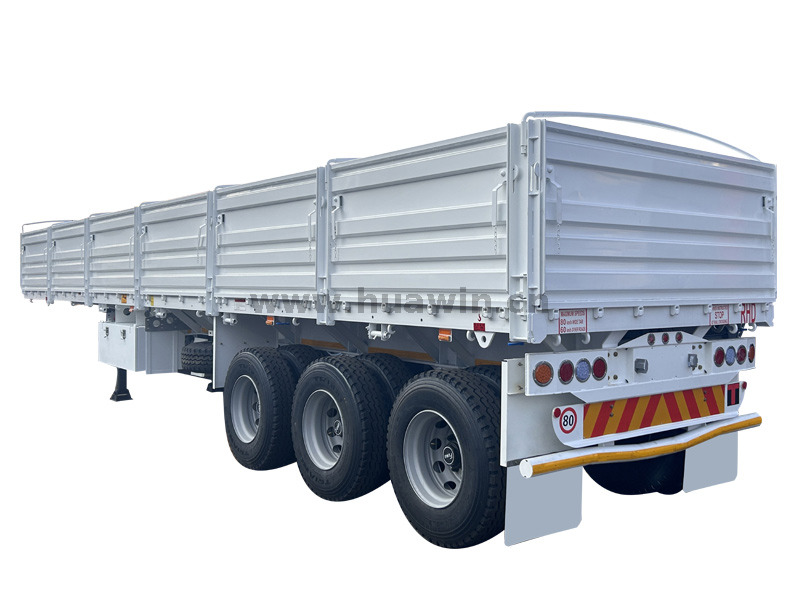

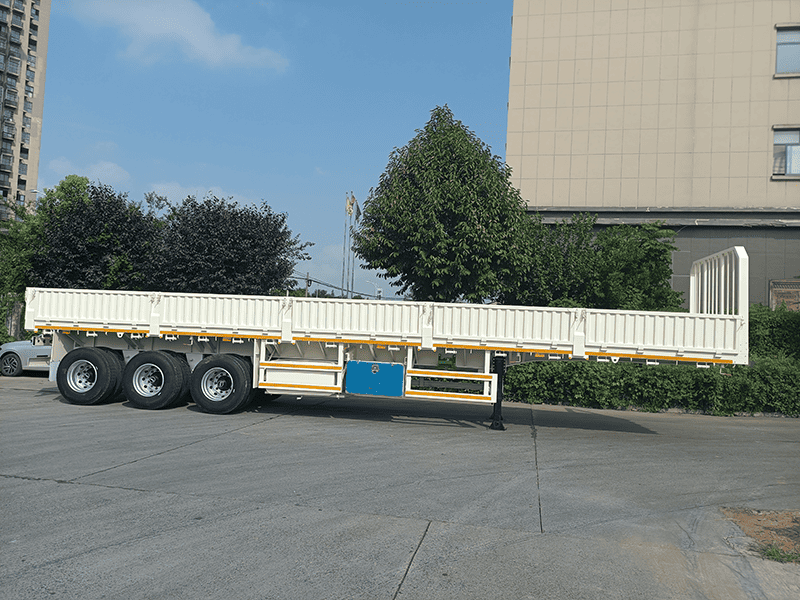

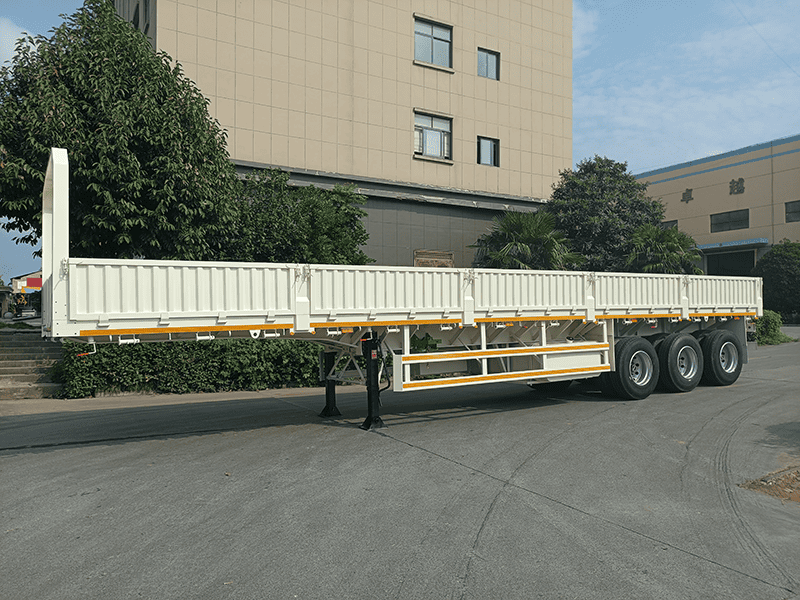

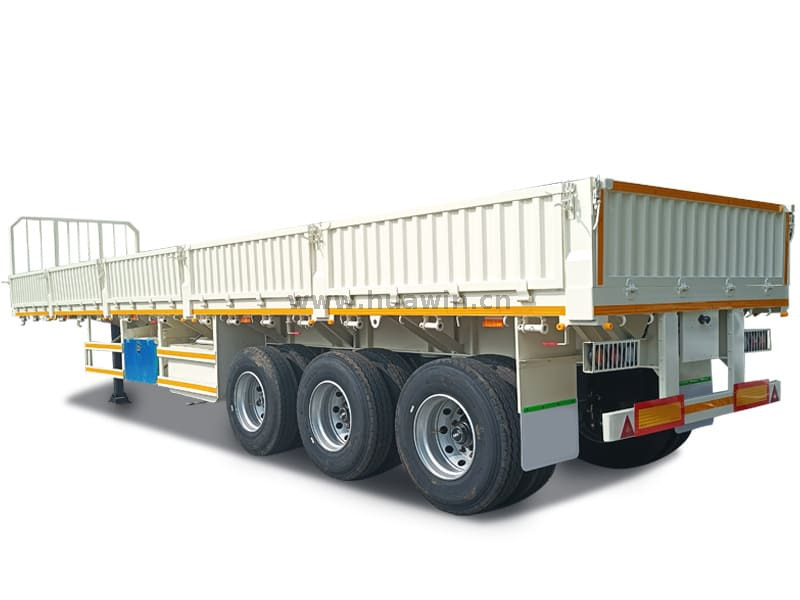

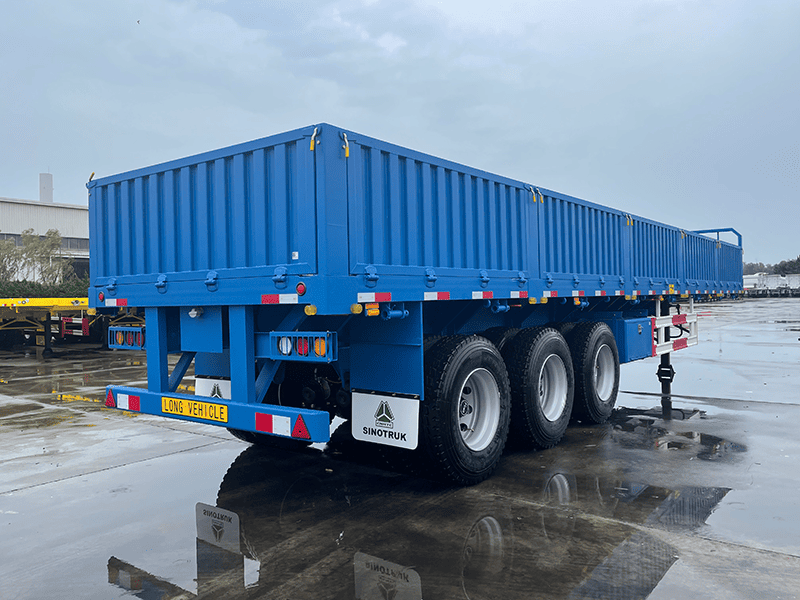

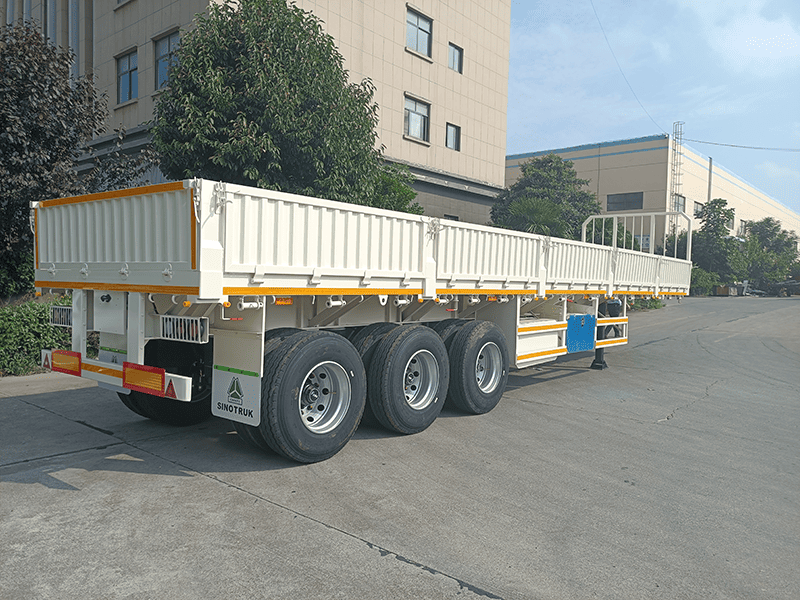

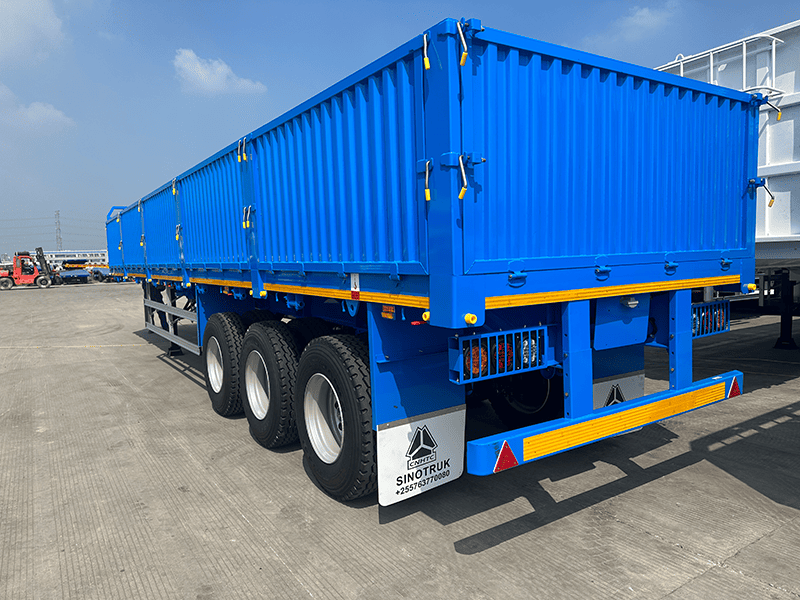

3 Axles 40FT Sidewall Semi Trailer

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The 3 axles 40 foot sidewall semi trailer features a three-axle design that evenly distributes loads, enhancing vehicle stability and load-bearing capacity, making it suitable for long-distance and heavy-duty transportation. The vehicle is equipped with removable sidewalls with a height range of 60 cm to 150 cm, making it ideal for transporting bulk goods, bagged goods, agricultural products, and more, thereby enhancing cargo safety and loading flexibility. The surface is coated with anti-rust paint, providing the vehicle with excellent corrosion resistance, waterproofing, and dustproofing performance, making it suitable for harsh environments. Reinforced design in critical areas reduces fatigue damage from long-term use.

The 3 axles 40 foot sidewall semi trailer is constructed using high-strength steel (such as Q345, Q460), offering high load-bearing capacity and excellent fatigue resistance. The longitudinal beams are manufactured using automatic submerged arc welding technology, resulting in a one-piece construction with high structural strength and minimal deformation. It is suitable for transporting bulk cargo, construction materials, machinery, agricultural products, and more, and can also be modified for use as a fence-type or skeleton-type trailer.

Applications:

3-axles 40-foot sidewall semi-trailer is commonly used for transporting materials: cement bags, rebar, lumber, stone, precast concrete, and other construction raw materials. As well as transporting materials: grain, agricultural machinery, fertilizers, vegetables, fruits, straw and so on.

Performance advantages：

The 3-axles 40-foot sidewall semi-trailer features a robust structure with side panels designed to enhance overall frame stability, making it ideal for transporting various irregularly shaped cargo. The low center of gravity ensures stable handling, making it particularly suitable for high-speed or mountainous roads. It also offers high versatility, with removable side panels to accommodate different transportation needs (such as easy loading and unloading, or temporary use as a flatbed). It is suitable for transporting various types of cargo, including containers, bulk goods, bagged goods, and palletized cargo.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles, Semi-Trailer. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

3 Axles 40FT Sidewall Semi Trailer
Main Configurations	Compartment size(mm)(L*W*G).	12400x2300x1600mm
	Load	40000kg
	Beam(mm)	Submerged arc welding,14/8/16
	Railing Plate(mm)	500+100+200+200
	Lock	12 container locks
	Paint	Primer+Finish
	Outriggers	Jost E100
	Traction pin	2" assembly jost
	Brake system	Single front and two rear axle dual chambers, Wabco emergency brake valve

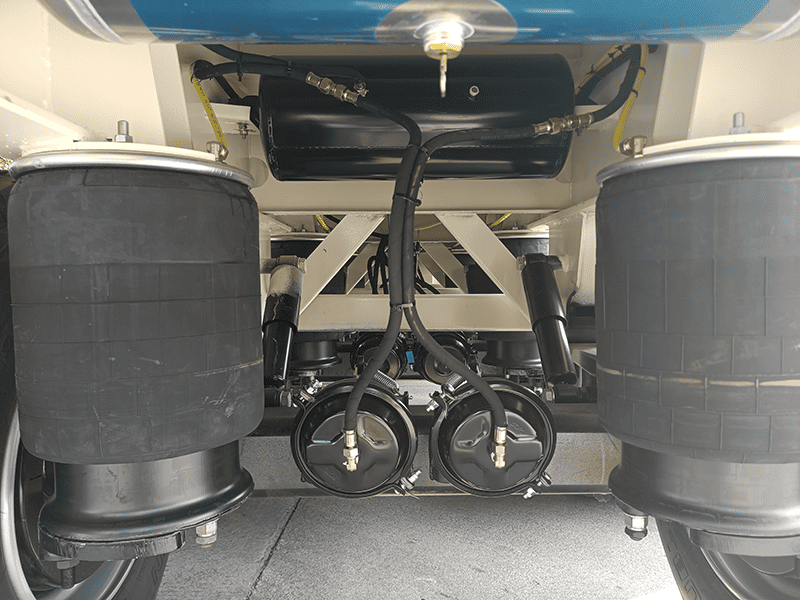

	Suspension	Reinforced 3-axle mechanical suspension
	Axles	Fuhua axle 13 tons 3pcs
	Tires	12R22.5(13pcs triangle TR668 pattern)
	Rims	22.5*9.0
	Toolboxes	One, iron
	Spare Tire Carrier	Two
Others	Tail long vehicle markings; tail not cut off, two sets of bundled transportation; tractor seat height: unloaded 1319mm; all without CIMC logo and contact information; gooseneck position reinforcement; rear overhang of 1250mm; 20 feet lock position is located in the middle of the two or three axles.

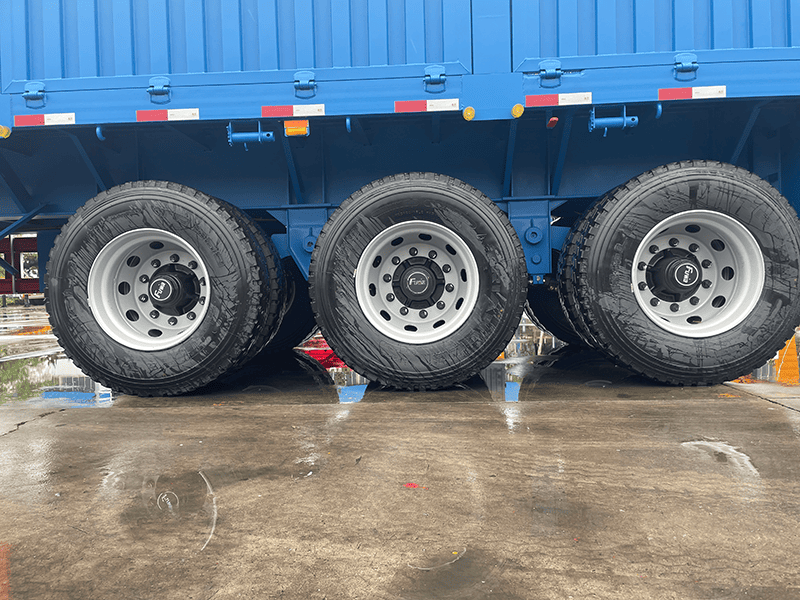

Tires:

The 3-axles 40-foot sidewall semi-trailer is equipped with 12R22.5 tires, including one spare tire. These tires feature a robust steel-reinforced structure, ensuring exceptional load-bearing capacity and durability. The sturdy tire carcass is designed to withstand high-load operations, making them ideal for long-term heavy-duty transportation. Excellent wear resistance is achieved through a rational tread design and wear-resistant rubber compound, making it suitable for long-distance high-speed or complex mining site road conditions, thereby extending service life. The radial structure reduces heat generation, ensuring safer operation and minimizing the risk of tire blowouts, thus providing excellent heat dissipation properties.
