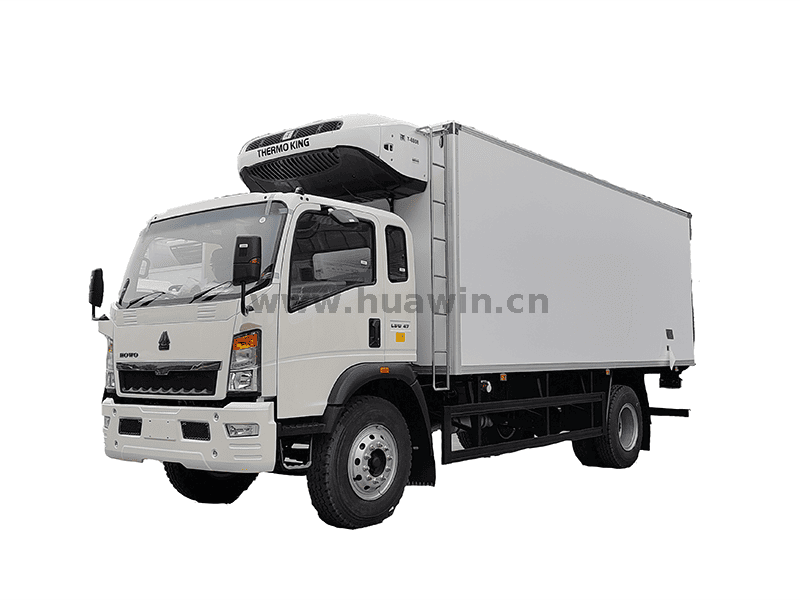

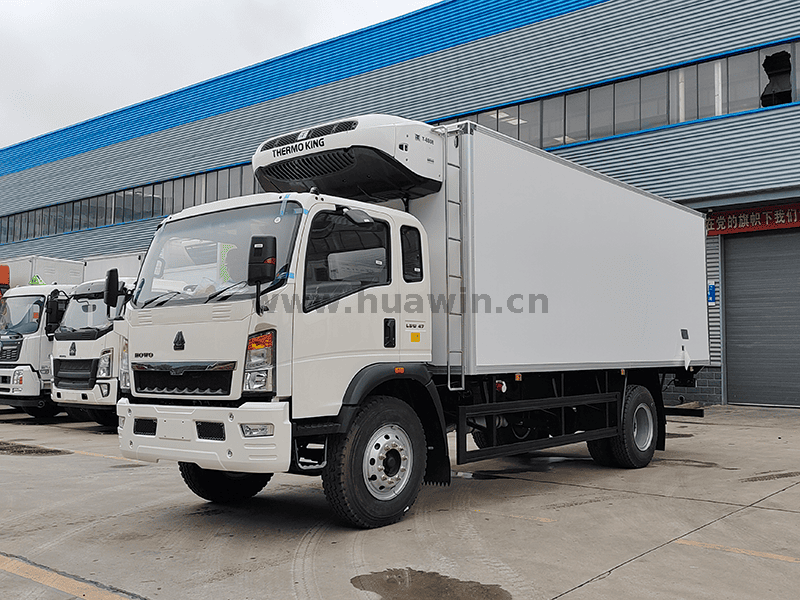

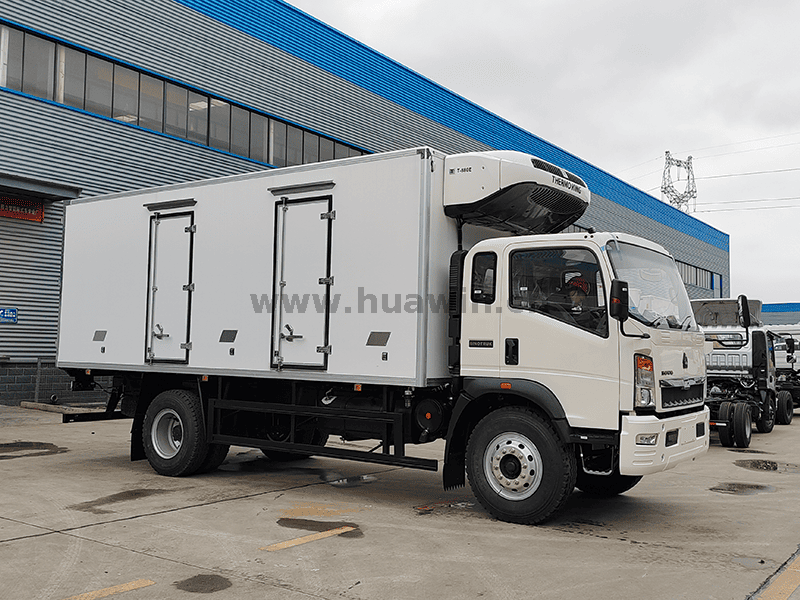

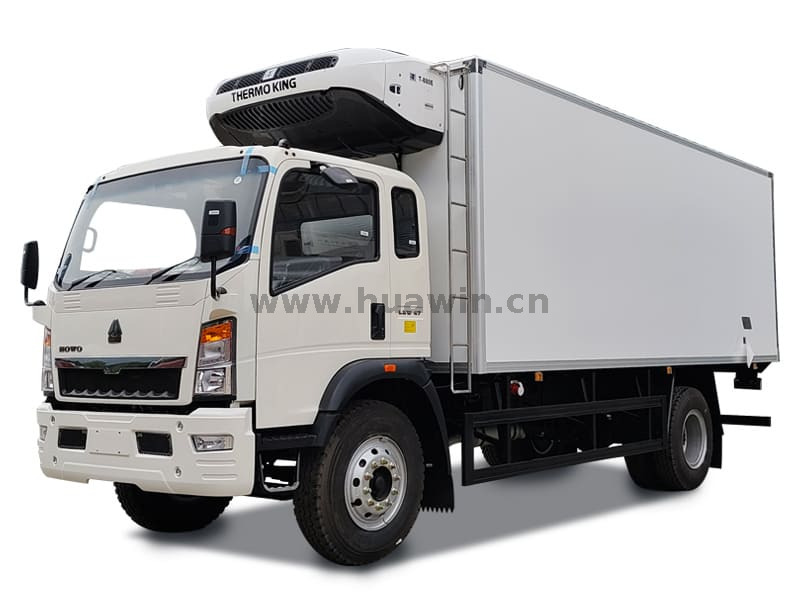

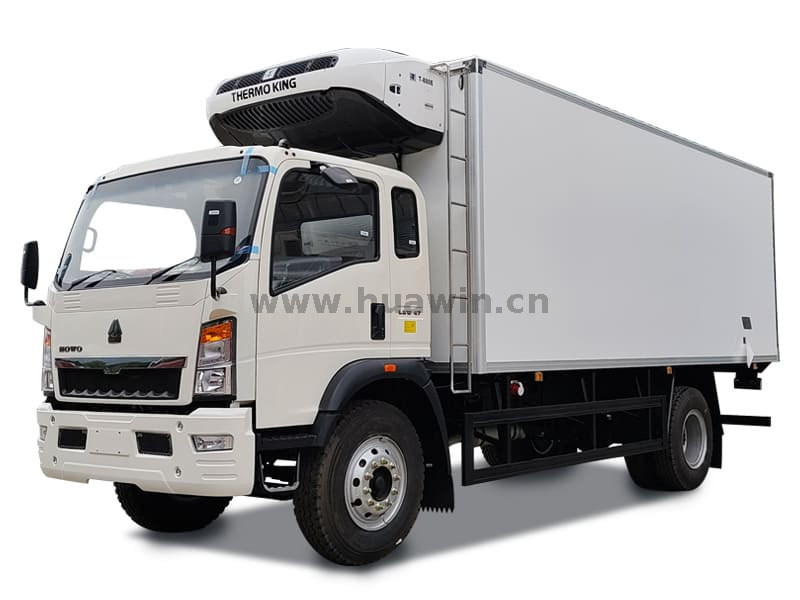

HOWO Refrigerated 4x2 THERMO KING Unit Truck

Products Showcases:

● 30 years of experience of refrigerator truck

● 1st class refrigerator for option: Thermo King, Carrier

● Temperature control: -25℃ -normal temperature

● Insulation material: polyurethane with good insulation effect and fire resistance

● World class refrigerator technique, on site foaming injection technique

Applications:

HOWO Refrigerated Trucks are commonly used for distribution from cold chain warehouses or logistics parks to supermarkets, convenience stores, community fresh food stores, as well as ice cream, dairy products, frozen dumplings and other commodities with strict temperature control requirements, often relying on small refrigerated trucks for daily distribution or replenishment.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

HOWO Refrigerated 4x2 THERMO KING Unit Truck
Core Configuration	Transmission	HW90510C2
	Engine	YUCHAI brand, YC4E160-33,  160HP
	Horsepower	160
	Front Axle	3.6 ton
	Rear Axle	10.5ton
	Cab	2080 model, two seats and one bed, cloth seat.
	Tire	9.00R20 radial steel tire.
	Fuel tank	220L
	Steering	Right hand drive
Selectable	Tire	10.00R20、275/80R22.5、9R22.5、10R22.5
	Seat	Leather seat is optional
	Wind deflector	with SINOTRUK Chinese character
	central lock, electric window,remote key
	side protection
	mud guard
	Reinforced front lower protection
Upper Garment	Box size:6250x2300x2300mm, with polyurethane insulation layer. Cooling system: American Thermal King or Carrier brand

Refrigeration range：

PRODUCT	SETPOINT RANGE		OPERATING MODE*
Bananas	15℃	60℉	Continuous
Fresh fruits and vegetables	+4℃ to +6℃	+39℉ to +43℉	Continuous
Fresh meats and seafood	+2℃	+36℉	Auto-Start/Stop or Continuous
Dairy products	+2℃ to +6℃	+36℉ to +43℉	Auto-Start/Stop or Continuous
Ice	-20℃	-4℉	Auto-Start/Stop
Frozen fruits and vegetables	-18℃	0℉	Auto-Start/Stop
Frozen meats and seafood	-20℃	-4℉	Auto-Start/Stop
Ice cream	-25℃	-13℉	Auto-Start/Stop

Features:

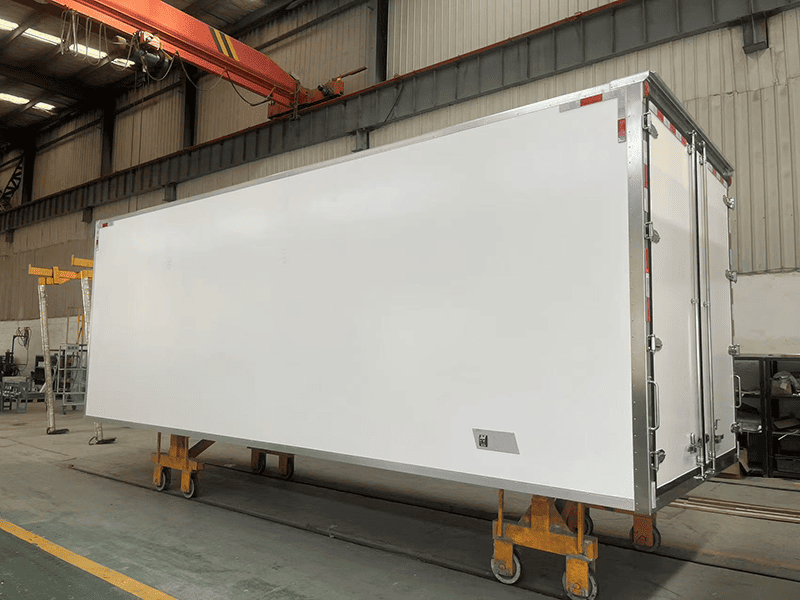

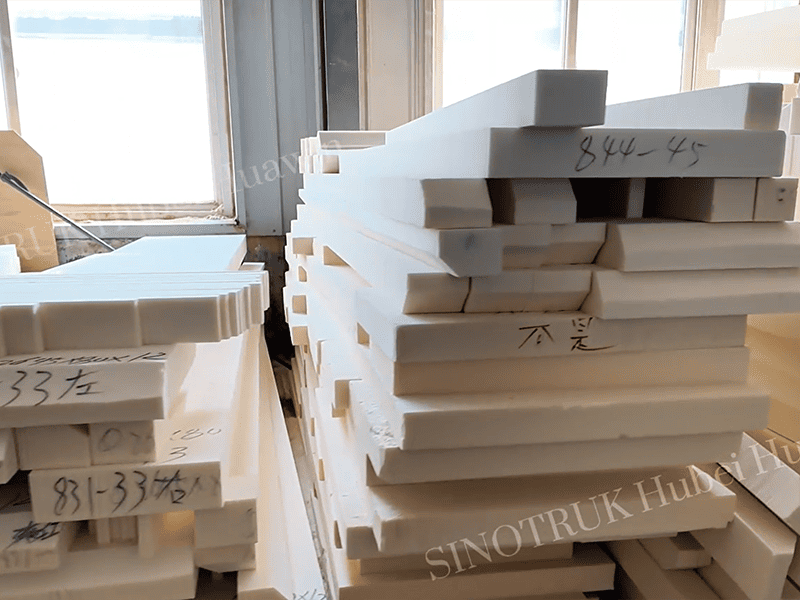

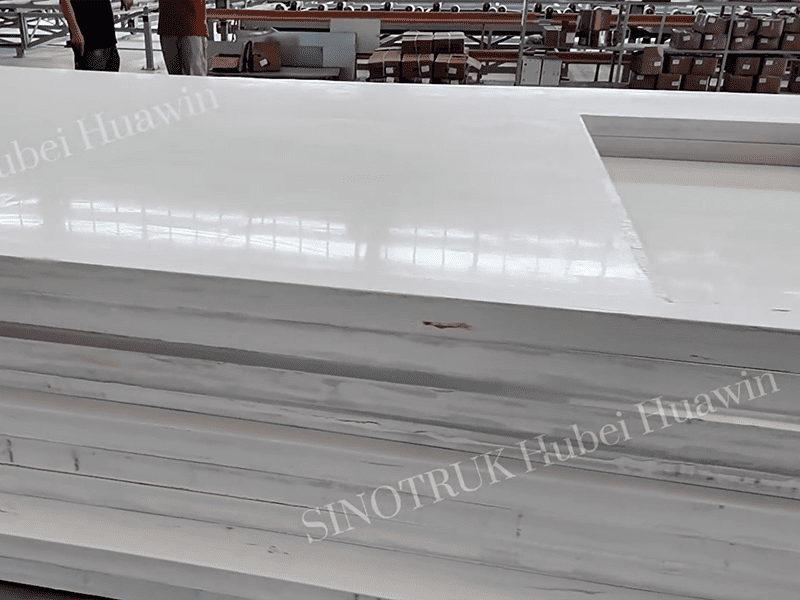

Insulation van box: we utilize the advanced domestic Kogel wet foaming process for integrated foam molding, resulting in excellent thermal insulation and a superior choice for our customers. The corners of the box are well sealed with fiberglass, which prevents the water vapor from entering the insulation layer, making the lifetime of the box much longer.

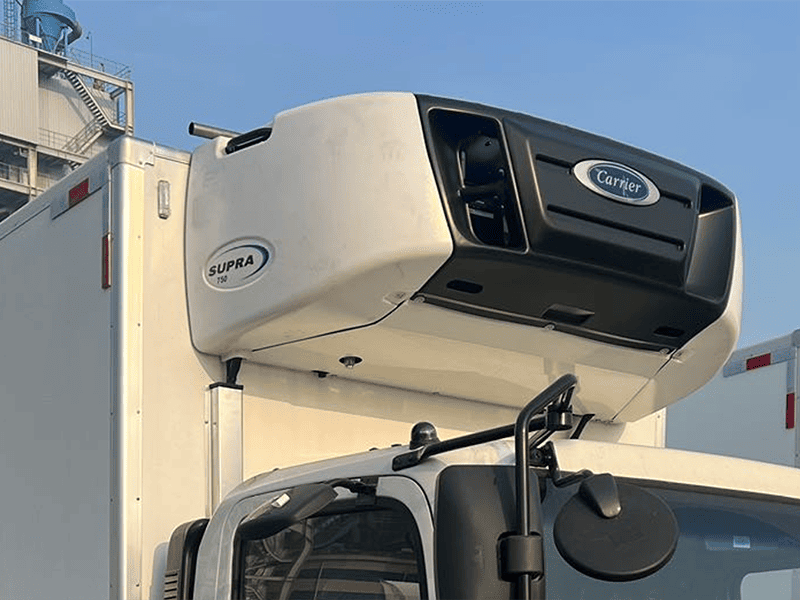

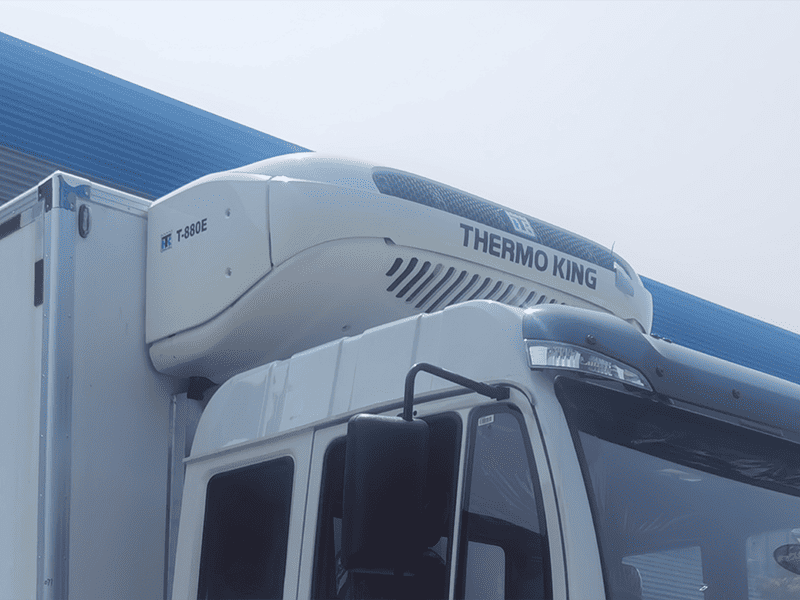

Cooling system:We use the Thermal King and Carrier brand from America. They are both top refrigeration brands in the world. They have after-sales service all over the world and their production base in China also ensures fast delivery cycle.

Both brands have following options:

a, independent system, it's own engine doesn't need power from the truck chassis. In this case, the refrigerator system is more stable; it could still run when the truck is switched off.

b, non-independent system, it will take the power from the truck engine, so the size of the outer system is smaller, and the price is cheaper.

c you could choose an electric standby, connect the system with electricity to run the refrigerator when the truck sis switched off.

Optional configuration:

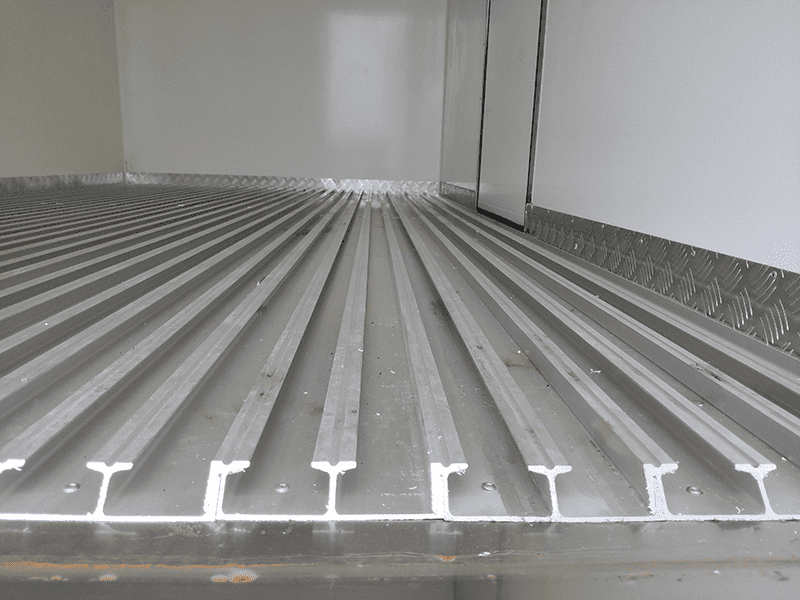

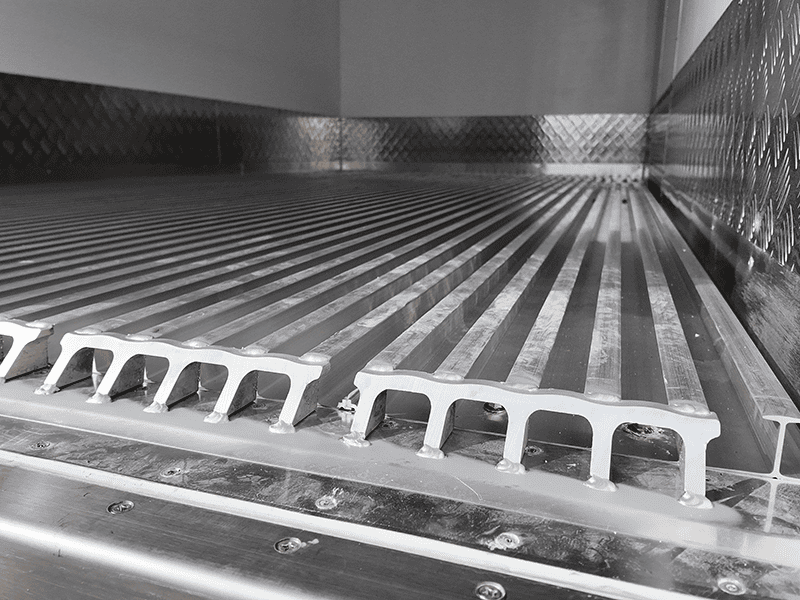

* Aluminum rails are installed on the floor to ensure smooth circulation of cold air, reaching every corner of the cargo box.

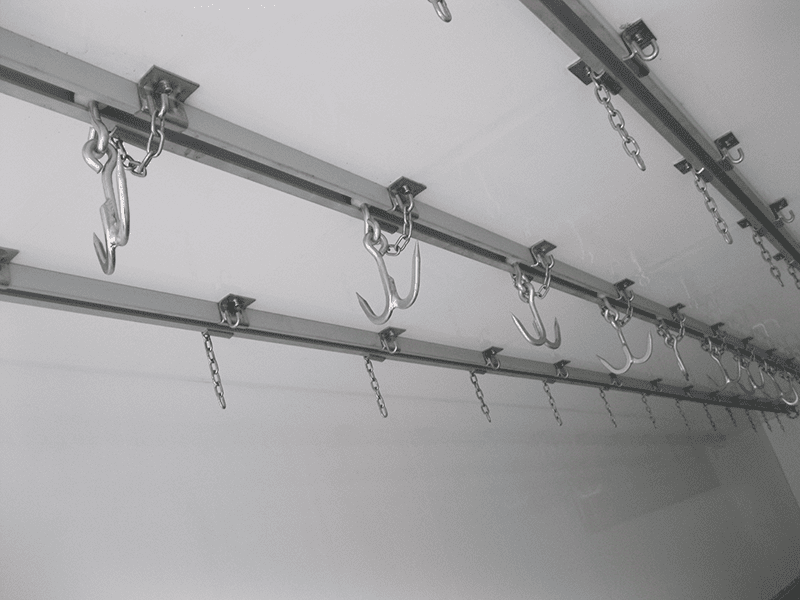

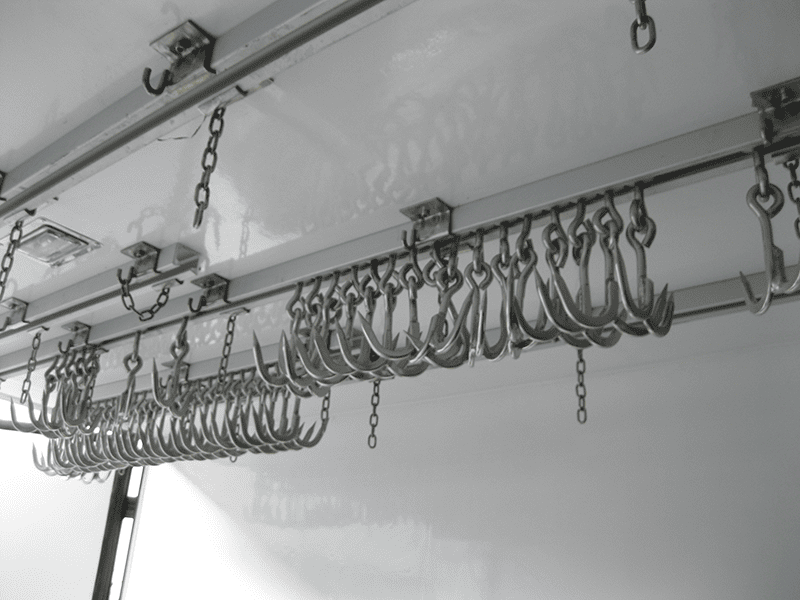

* Hooks and rails are installed on the roof. If you need to hang meat inside the truck, the roof can be reinforced and fitted with rails and hooks.

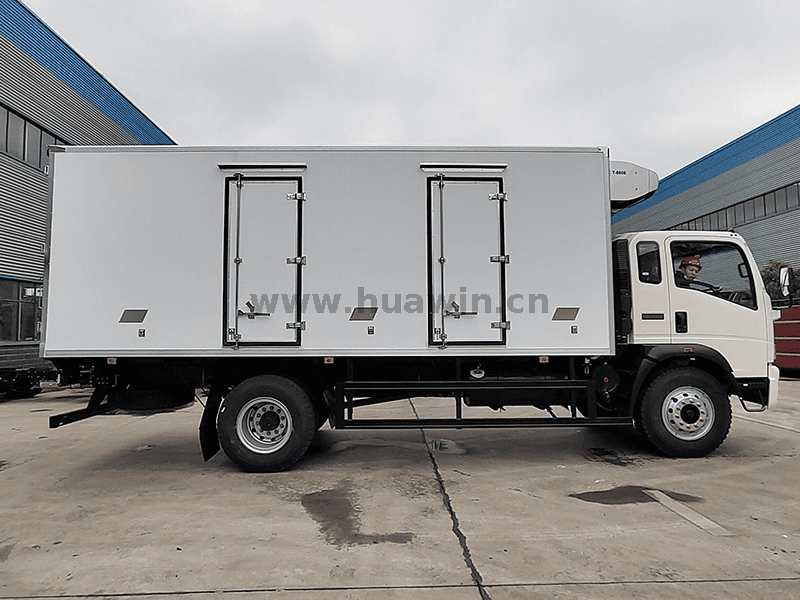

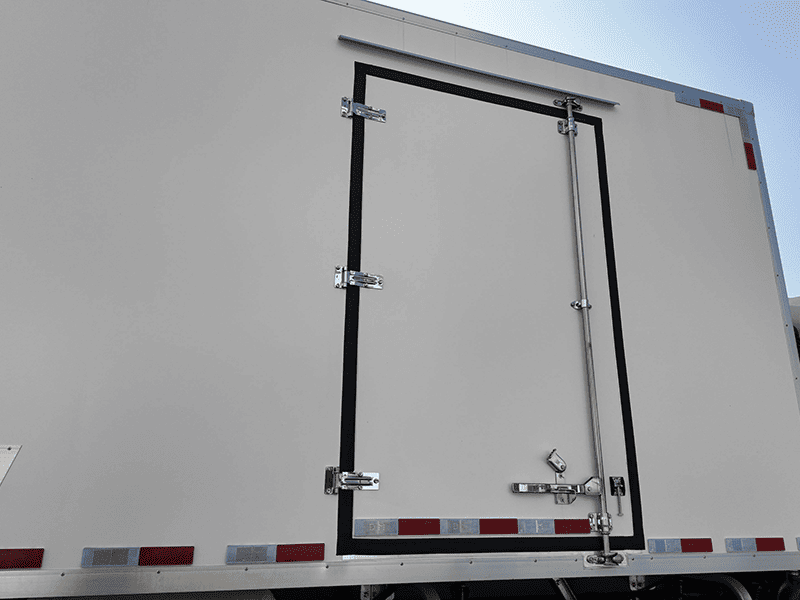

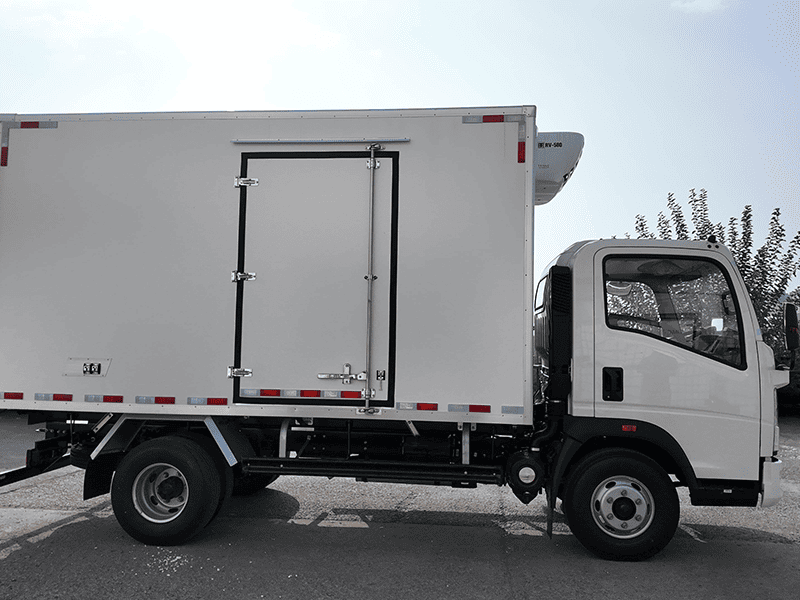

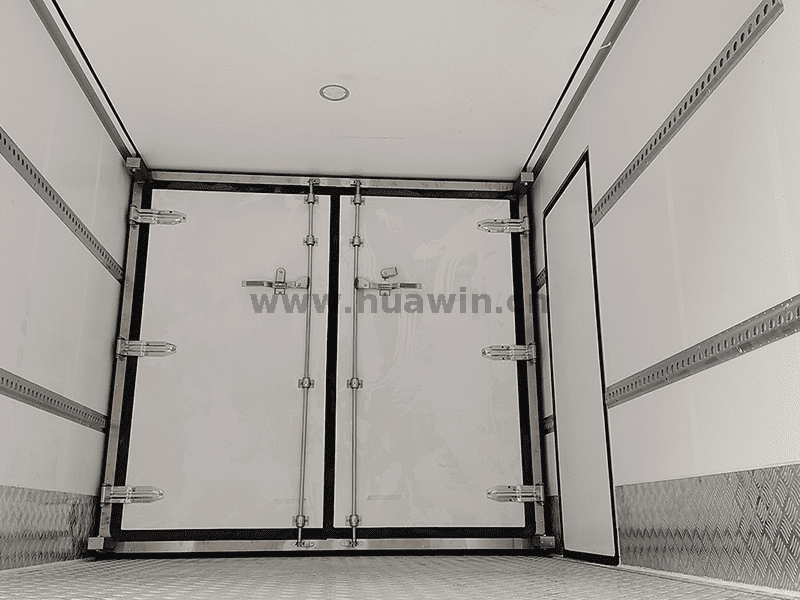

*An optional side door is also available for easyunloading from the front or center of the cargo box.

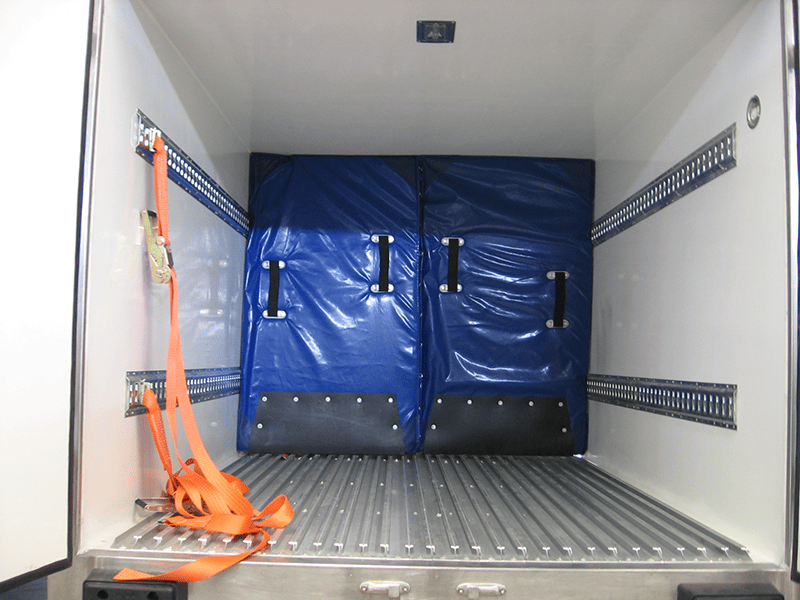

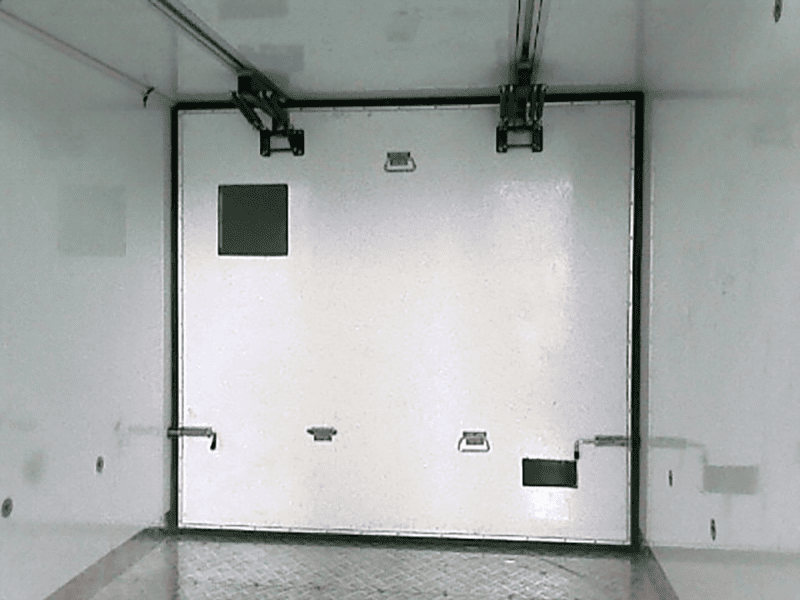

*Divider plate: a divider plate in the middle of the van box could divide the box into different rooms,you could set different temperature in different rooms to store different cargos

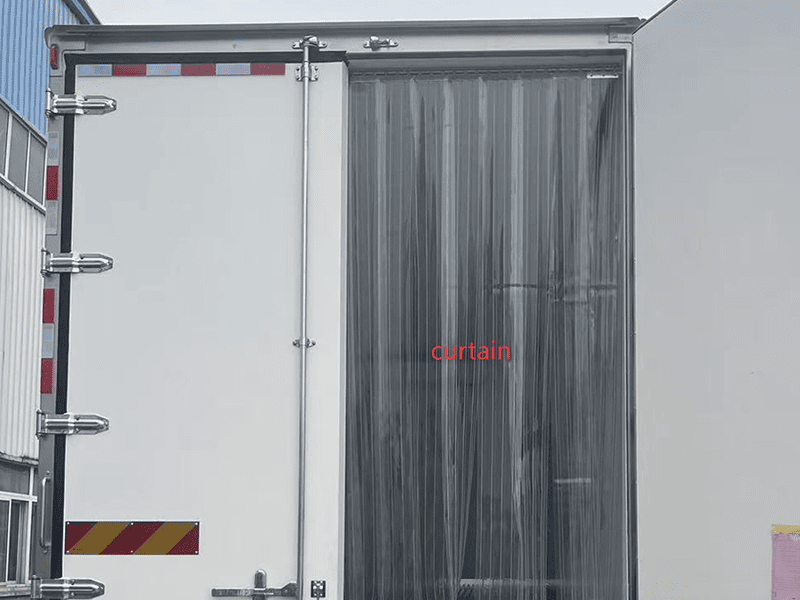

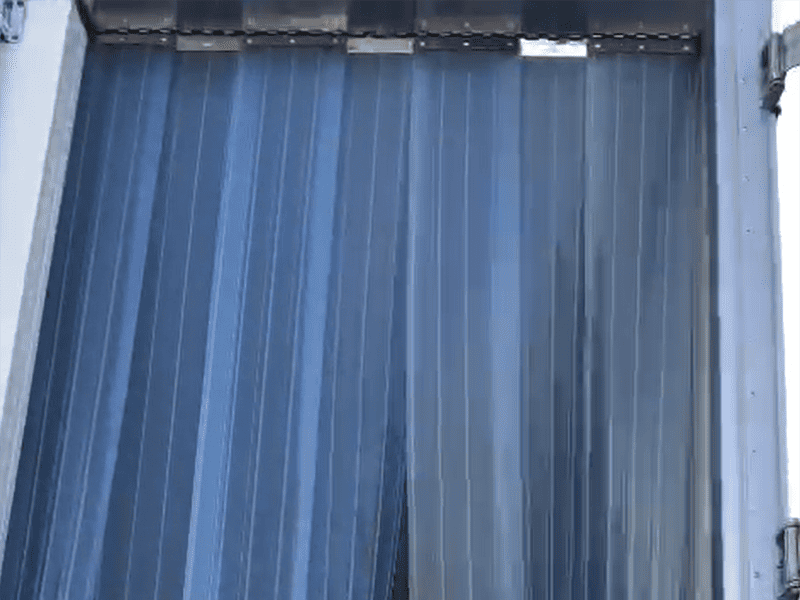

Curtain: The side doors and rear doors can be equipped with curtains to effectively prevent the cold air in the box from dissipating quickly when loading and unloading goods.
