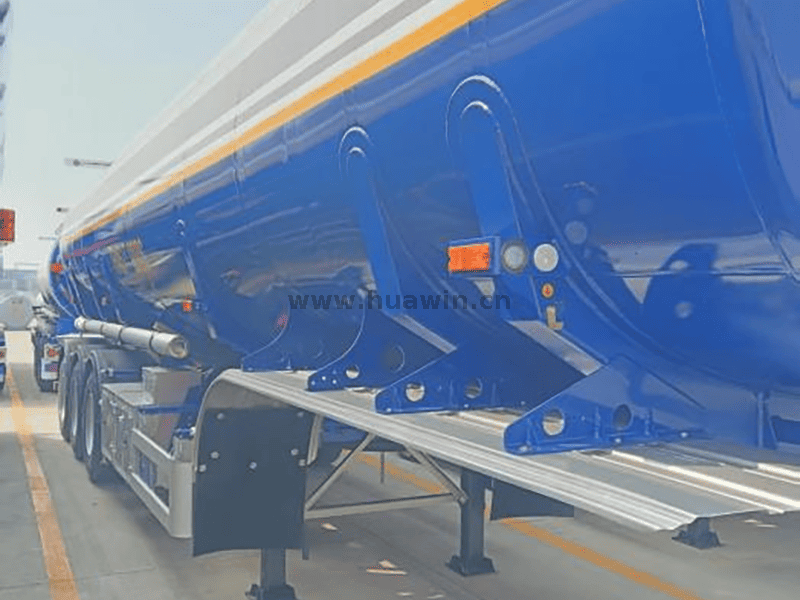

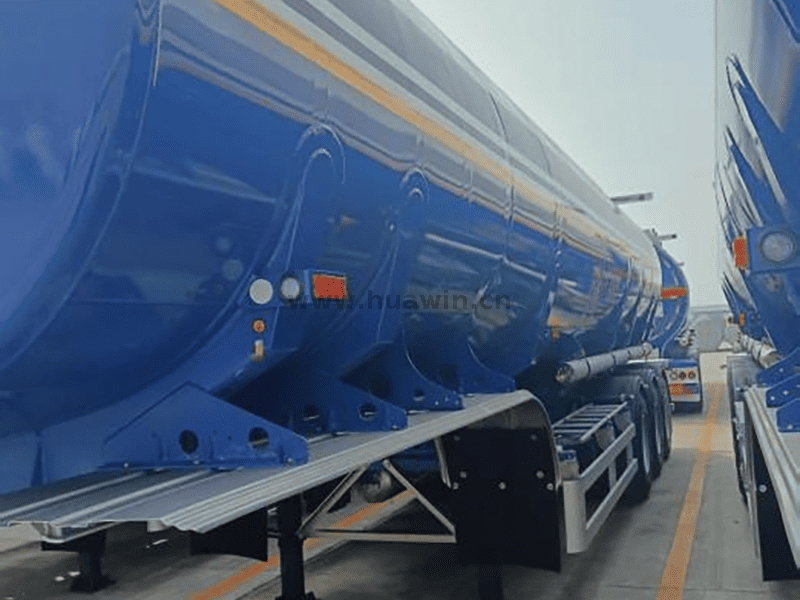

CIMC Aluminum Fuel Tanker Semi Trailer 46CBM

● 30 years of experience in Special Vehicle

● Various options for container size and load capacity

● Well-known brand hydraulic cylinders and pumps

● Bidirectional compression technology, high garbage compression ratio

● Corrosion-resistant materials and high sealing performance

Applications:

This fuel tanker semi-trailer is mainly used for transporting liquid petroleum products safely and efficiently. Here’s how it’s typically applied:

Main Applications

●Fuel distribution: Gasoline, diesel, kerosene, jet fuel

●Oil & energy logistics: Refined oil transport from refineries to depots or stations

●Commercial fuel supply: Delivering fuel to gas stations, airports, mining sites, and industrial plants

●Bulk liquid transport: Some light chemicals or non-corrosive liquid products (depending on design & lining)

Oil tank structure sketch：

1. tank    2. coaming  3. oil baffle plate    4. front manhole    5. middle fence plate    6. rear manhole    7. horizontal oil baffle plate    8. ladder    9. riding bolt seat      10. tank foot   11. platform supporting feet   12. location plate   13. fuel discharge outlet

The drawing of refueling：

1. oil tank  2. upper manhole   3. oil pump   4. four position three-way ball valve   5. front straight ball valve   6. rear straight ball valve   7. four position three-way valve  8. strainer  9. rear auto-flow ball valve

Specifications：

CIMC Aluminum Fuel Tanker Semi Trailer 46CBM
Parameters	Design Dimension	L*W*H: 12280x 2500 x 3620 mm
	Volume	Effective 46000L, include 5% ullage

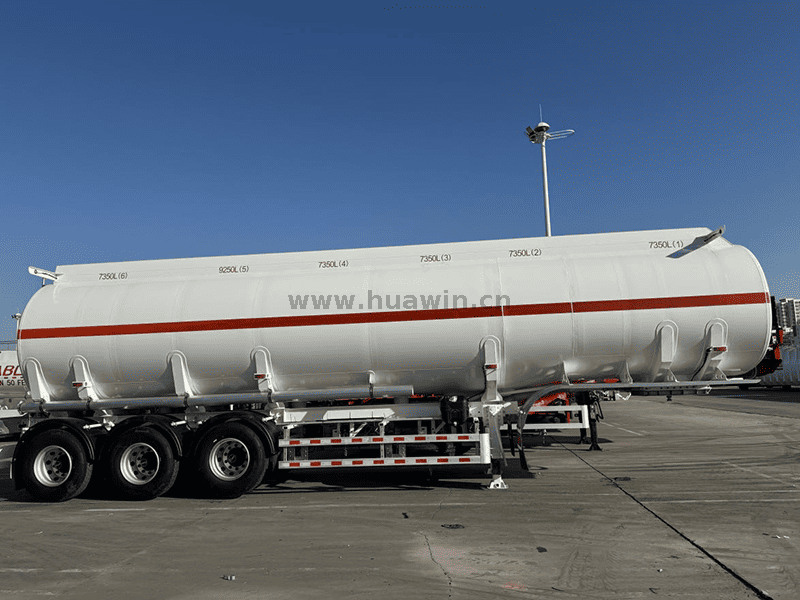

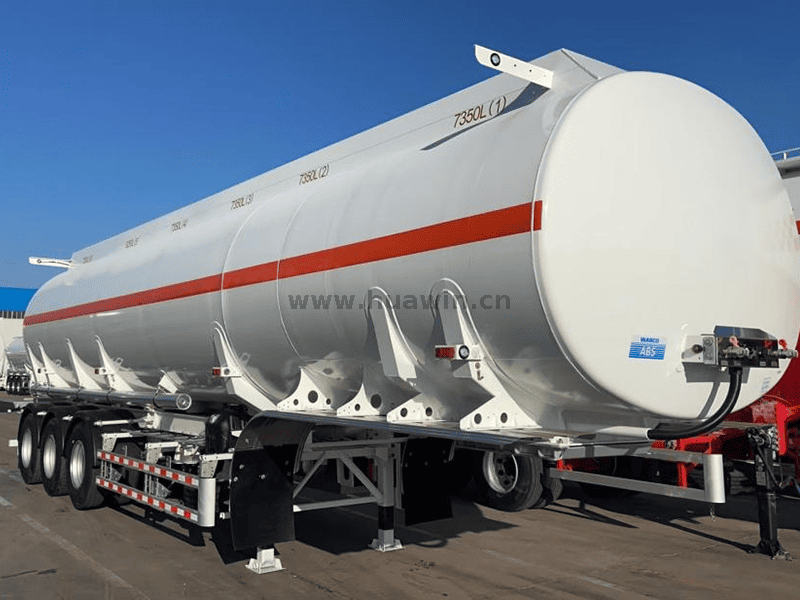

	Compartments	6 compartments design, from front to rear end: 7350L/7350L/7350L/7350L/9250L/7350L
Barrel	Barrel Wall	Aluminum 5182-H111, 5.5mm thickness
	Dishend & bulkhead	Aluminum 5182-H111, 6mm thickness
	Anti-wave Plates	Aluminum 5182-H111, 5.5mmthickness
	Compartment Plates	Aluminum 5182-H111, 6mm thickness
	Walkway	Anti-skid aluminum 5083 rhombic network
Running System	Axle+suspension	FUWA brand, 13T*3 air suspension with drum brake axles, with first axle lifting
	Tire	315/80R22.5 tubeless, 13pcs
	ABS system	WABCO ABS system
	Brake System	Drum brake system, 4*T30/30 + 2*T30
	Landing Gear	Germany JOST brand, 17 inch 2 speed operated from one side
	Kingpin	Germany JOST brand, 2 inch
	Frame Material	High strength aluminum alloy, welded construction
Pipeline & Accessories	Manhole	6 sets, 20'' aluminum, with breath valve
	Discharge Valve	6 sets, 4 inch aluminum API valve
	Bottom Valve Pneumatic Switch	1 set, pneumatic, with 1 master switch, with aluminum protection box
	Emergency (foot) Valve	6 sets, pneumatic aluminum model

FEATURES:

1．Light weight=Higher Payload & Better ROI: Aluminum tank reduces tare weight by 30-40%, allows more fuel per trip, which is critical for long-distance transport. This also means lower tractor fuel consumption on the road.

2．Reinforced Chassis for Rough Roads: Strengthened main beams and cross members designed for uneven roads, gravel routes, and other tough conditions.

3．Suitable for mixed fuel types: Ideal for diesel, petrol, jet fuel, multiple-compartment design allows simultaneous transport of different fuels.

4．Low Maintenance & Easy Repair: No anti-rust painting needed, fewer rust-related failures, aluminum panels and components are easier to repair and replace locally.

5．Compliance with Local & Regional Standards: Can be built to ADR standard for country like Namibia,local transport regulations for Sub-Saharan Africa. Flexible configuration optional for both left-hand and right-hand traffic countries.
