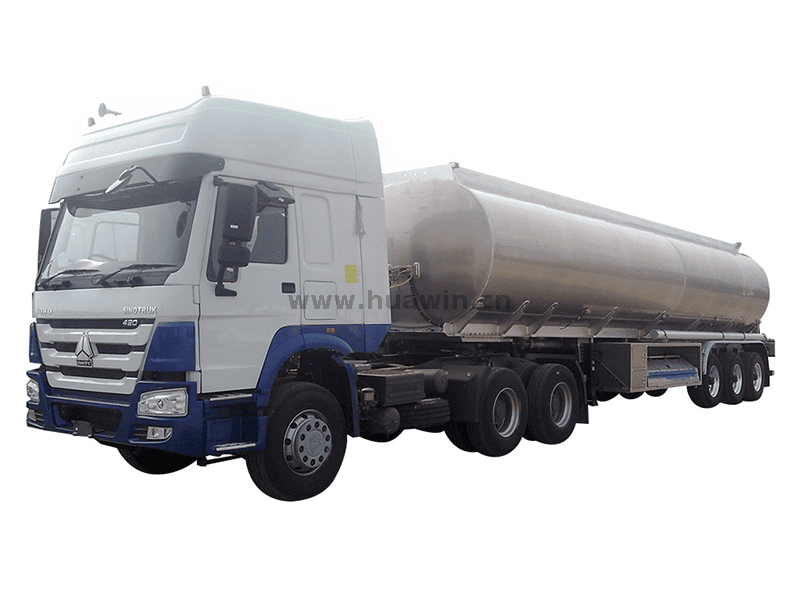

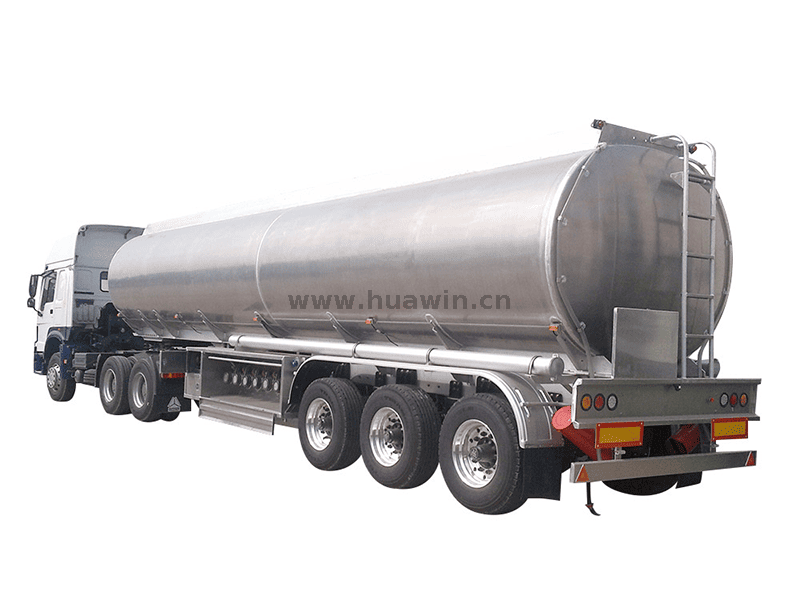

CIMC 3 Axles 46000 Liters Aluminum Alloy Tanker Trailer

● 30 year experience in tank trailers design and production

● Heavy duty capacity and high performance

● Professional advanced production technology and strict quality control ensure the quality of trailer

● Customized service

● Adequate stock of spare part

The structure:

Structure is indicated as the followed drawing, the tank section shape can be oval, bread, trapezoid etc, the whole tank can be divided into several independent compartments, under the middle fence plate there is through-hole, the middle fence plate can alleviate the impact on the tank by the fuel while moving. The manhole is with breather valve, which keeps the pressure of the inner tank equal to atmosphere.

Oil tank structure sketch：

1. tank    2. coaming  3. oil baffle plate    4. front manhole    5. middle fence plate    6. rear manhole    7. horizontal oil baffle plate    8. ladder    9. riding bolt seat      10. tank foot   11. platform supporting feet   12. location plate   13. fuel discharge outlet

The drawing of refueling：

1. oil tank  2. upper manhole   3. oil pump   4. four position three-way ball valve   5. front straight ball valve   6. rear straight ball valve   7. four position three-way valve  8. strainer  9. rear auto-flow ball valve

CIMC 3 Axles 46000 Liters Aluminum Alloy Tanker Trailer’s specifications：

Main Dimensions
Overall Length	11700mm
Overall Height	3705mm
Overall Width	2550mm
Tare Weight	7200KGS
Tanker Volume	46000 Liters, including 5% space allowance
Tank Body
Shape	Mono block Cylinder, 6 compartments
Total Volume（m3）	46000 Liters
Compartment	6 compartments, 7350L/7350L/7350L/7350L/9250L/7350L from front to end
Tanker Body Material	5.5mm/ Aluminum plate 5182
Compartment plate	5.5mm/ Aluminum plate 5182
End plate	6mm/ Aluminum plate 5182
Manhole cover	API manhole cover, 20 inches, 6 sets with 6 breather valves, With a 10-inch emergency release device, With built-in breathing valve
Oil dip rod	6 sets
Bottom Valve	One API Pneumatic Bottom Valve

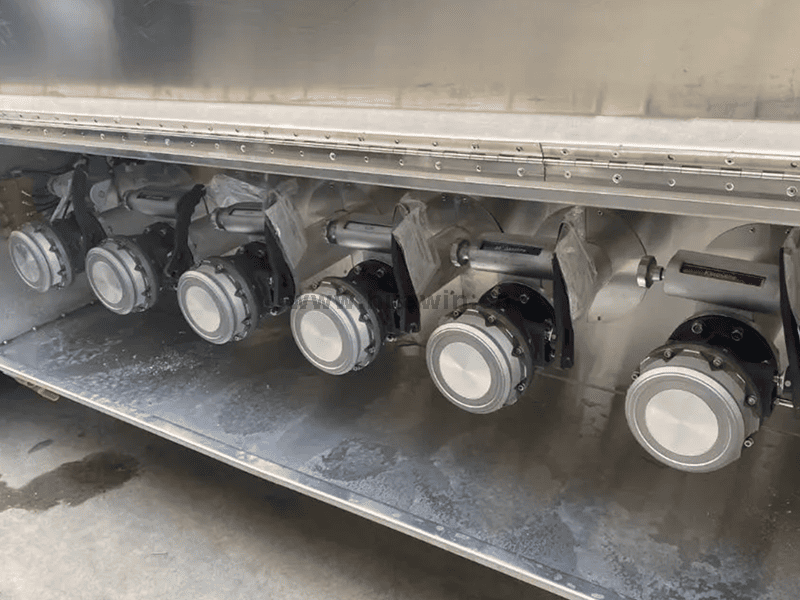

Discharging valve	6 sets ∮100mm discharging valves
Discharging Pipe	4”rubber hose, 2 pcs
Chassis
Main Beams	Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation.
Axle	3 axlesX13T, FUWA brand
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear, E100
King Pin	JOST brand 2” bolt-in king pin
Suspension	Mechanical suspension
Pneumatic Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks.
Tire	315/80R22.5 tire, in total 13 pieces
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Ladder	Removable aluminum alloy ladder
Ground connection	6 electrostatic copper sheets are installed on both sides of the tank, 1 electrostatic ground
Extinguisher	8KG, 2 pieces
Light & Circuit	ISO 7 pin. LED light
Accessories	With standard tool box
Vapour recovery	With Vapour recovery
ABS	With ABS
Anti-overflow device	Optional

Oil loading:

（1）Open the upper manhole and load oil

（2）Pumping oil in: Screw four position three-way ball valve 4 to B position, A and C mouth are connected, Screw four position three-way valve 7 to C position, close discharge outlet 9, open front and rear straight ball valve, connect one end of the oil pipe along with truck to B mouth of the four position three-way valve 7, the other end with the oil source, engage the PTO, the pump works, the fuel goes through B-A-3-4-5-6-bottom tank mouth, so as to realize pumping oil in.

Advanced aluminum alloy production equipment

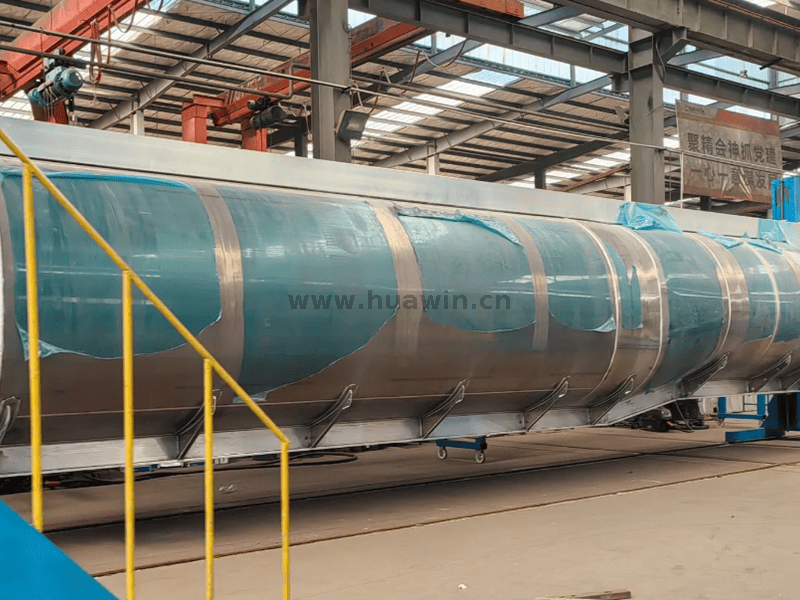

（3）Advanced aluminum alloy production equipment

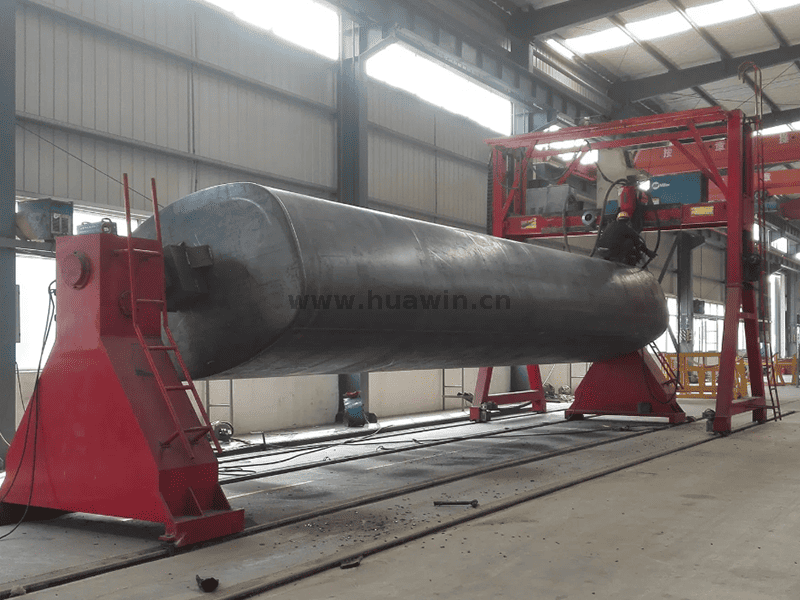

（4）Automatic welding machine for tanks.

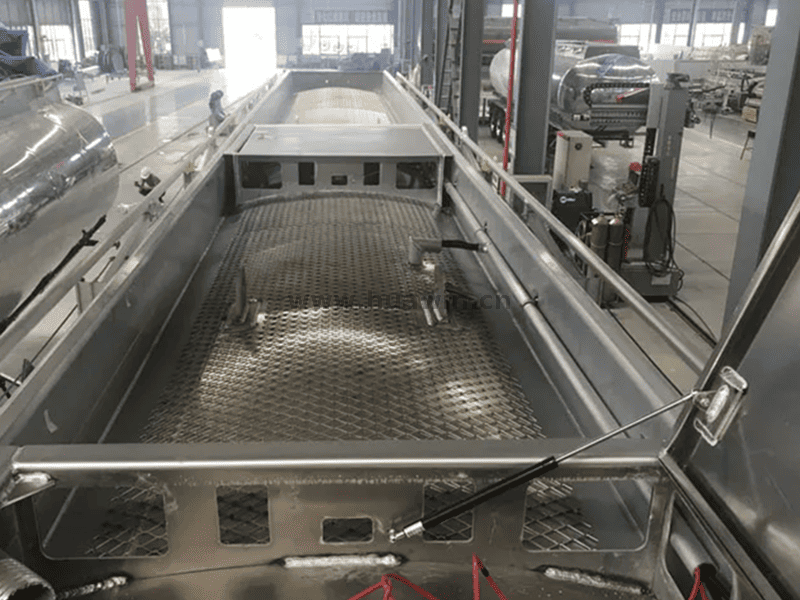

6 Compartments and  View from the top

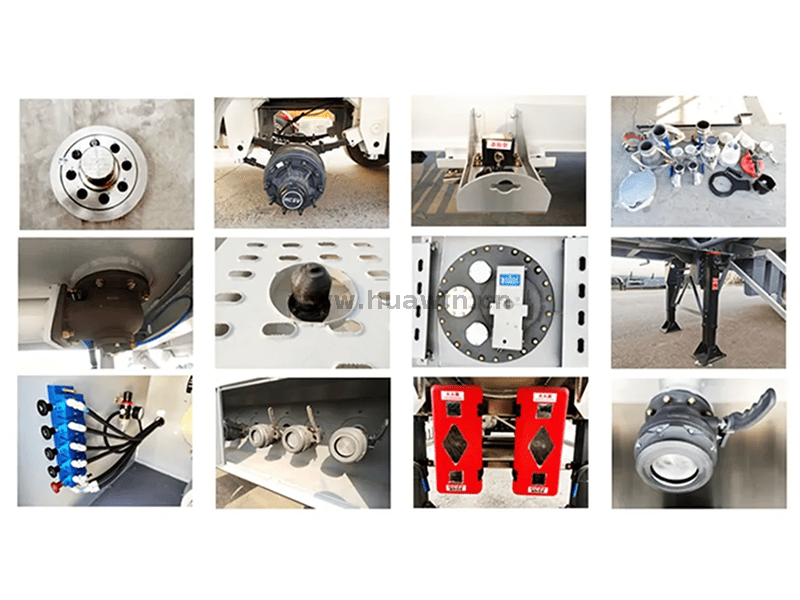

The details for the parts  And  The lading gear
