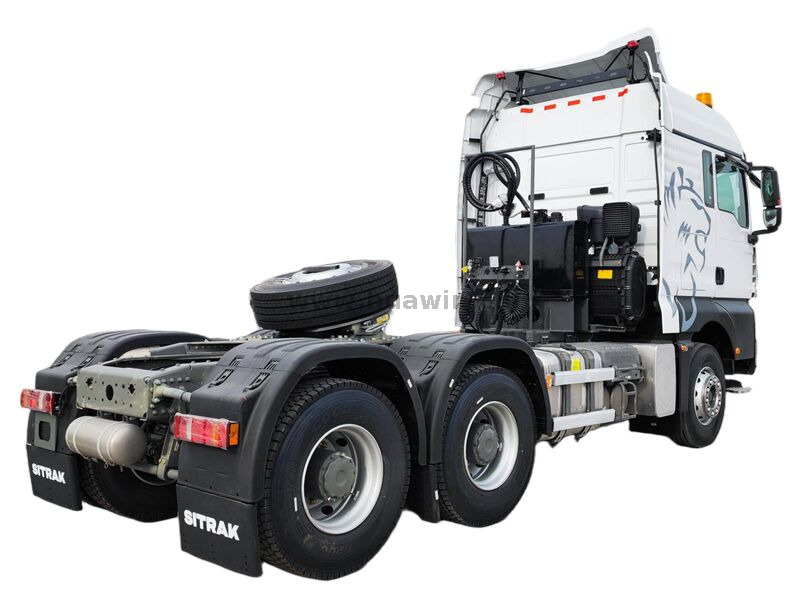

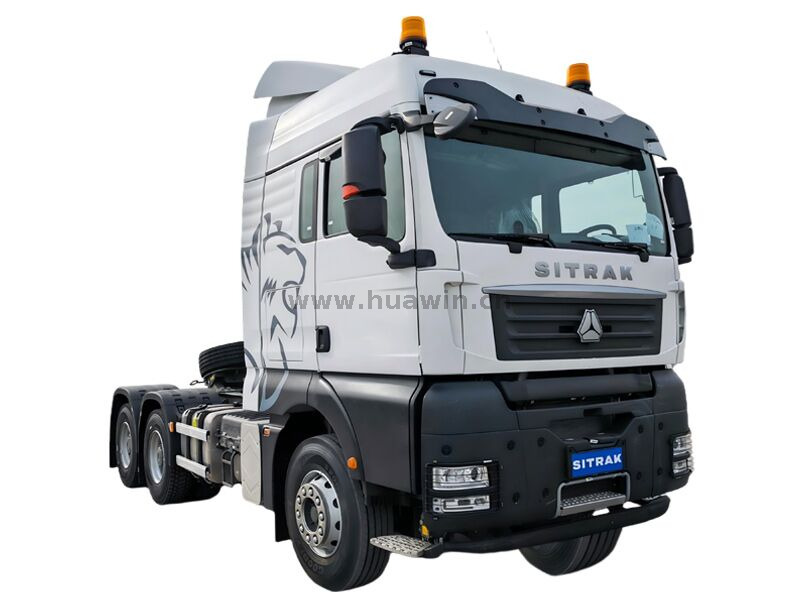

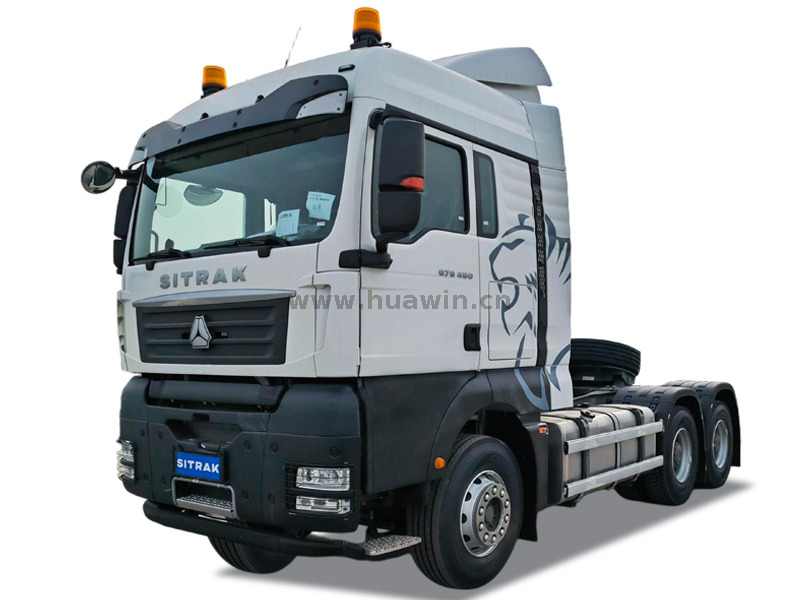

Sinotruk Sitrak G7S 6x4 Heavy Duty Tractor Truck for Desert

Products Showcases:

● Special design for desert environment

● With GERMAN MAN TECHNOLOGY for Engine and Axles

● With double fuel tanks for long distance transportation

● Compliance with regulatory requirements for Algeria

● 24-36 months long guarantee time assurance

Features:

In order to meet different application scenarios, we divide SITRAK tractor trucks into two categories, standard load and heavy duty load.

• Standard load: It's good to carry flatbed/dropside/tank trailer, with 40T capacity.

• Heavy duty load: It's good to carry tipper trailer and 60T capacity trailer, and we can add hydraulic system to haul tipper trailer.

Appearance for standard load with one bed

Appearance for standard load with two beds

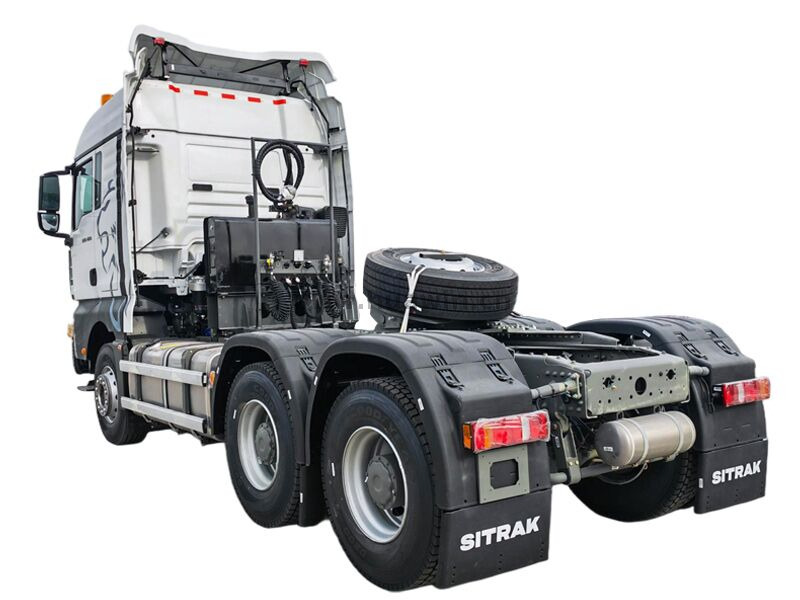

Appearance for heavy duty load with one bed and hydraulic system

Appearance for heavy duty load with two beds and hydraulic system

Applications:

Sinotruk Sitrak G7/G7S tractor truck is the high-end model designed specifically for desert road conditions. And double fuel tanks' design is very suitable for long-distance tranportion.

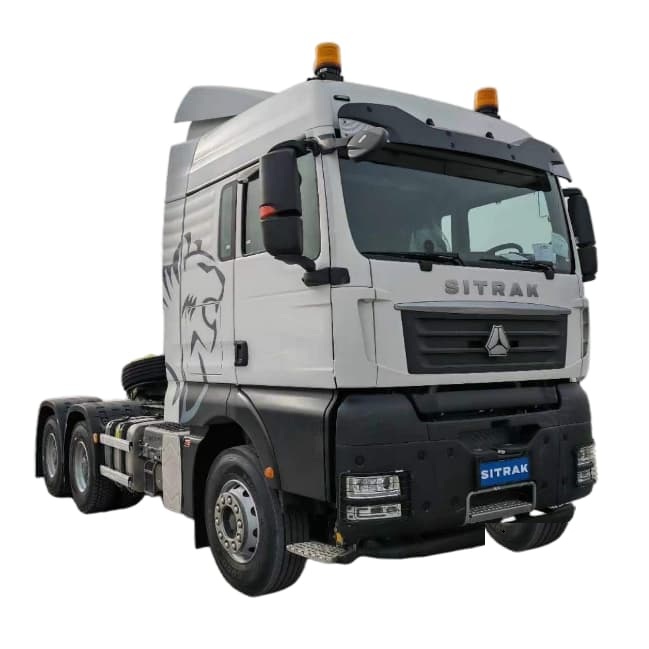

G7 tractor truck

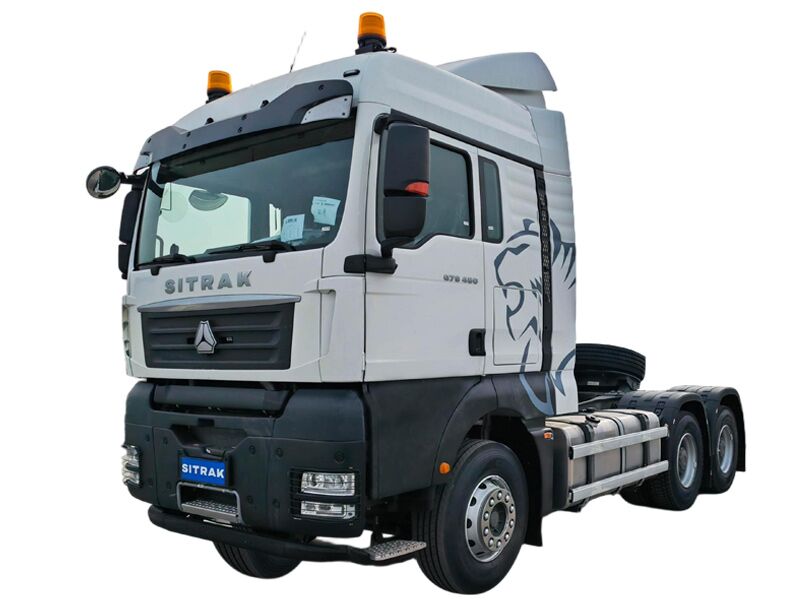

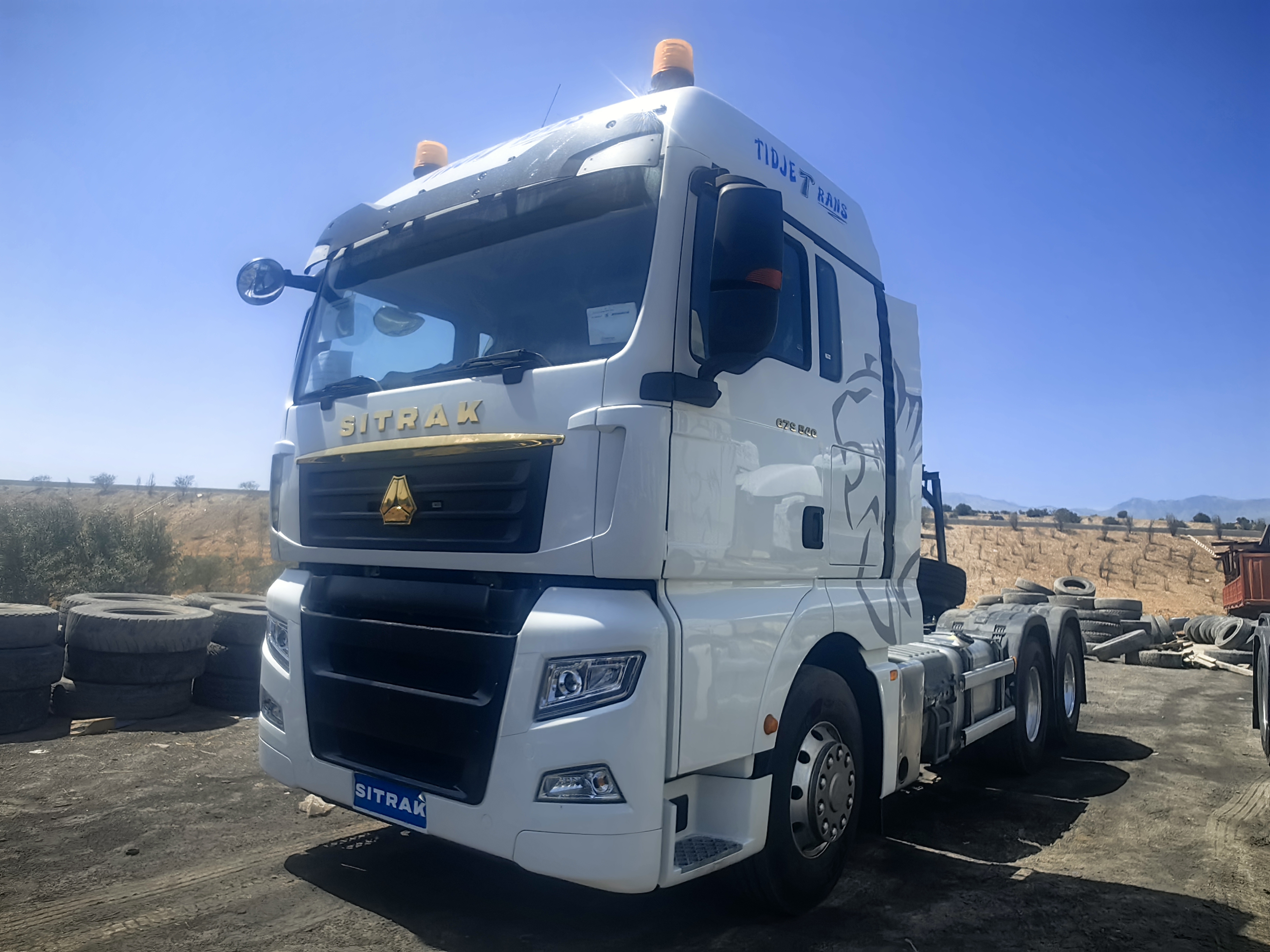

G7S tractor truck

Specification:

The specification for Sinotruk Sitrak G7S 6x4 Heavy Duty Tractor Truck for Desert

Sinotruk Sitrak G7S 6x4 Heavy Duty Tractor Truck for Desert
Basic Layout	English instrumentation, complete front lower guard, hot zone air conditioning (750g±15g), 200 watt trailer module, cab without rear window, split side guards, dual cartridge air intake system, rear towing hitch, smart pass C (no main unit or antenna), integral fenders, JOST 90# saddles
Core Configuration	Length, width and height(mm)	6895*2496*3820
	Axle	Front axle is with 9500kg capacity Rear axles are with 16000kgs capacity, with drum brake single reduction
	Weight(kg)	8900~9100
	chassis	Local triple(8+8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(9/12)
	Transmission	ZF16S2531 TO, 16F&2R , manual gearbox，with ZF PTO and retarder
	Engine	MC13.48-30, 480PS, Euro III, (GERMANY MAN TECHNOLOGY)
	Cab	G7-G cab, with two beds in the cabin
Compulsory	Tires	315/80R22.5 tubeless, With one spare tire
	Ratios	5.26
	Bumper	High bumper, metal
	ABS	ABS(4S/4M)
Selectable	Driver's cab option	Compliance with regulatory requirements(For Algeria) With Engine Exhaust Brake With EBS+ESC With electronic cab-flip system With top& side cabin wind deflector With driver & passenger air suspension seat With Air conditioner, With integral mudguard With Front underrun protection, With Split side protection With rear tow hook With reverse-alarm
	Fuel tank	860L + 360L Fuel Tank, doule fuel tanks
	Hydrualic system	Optional

Characteristic

New looks, bigger horsepower, more comfortable, less fuel, easier operation, more safer, with MAN engine.

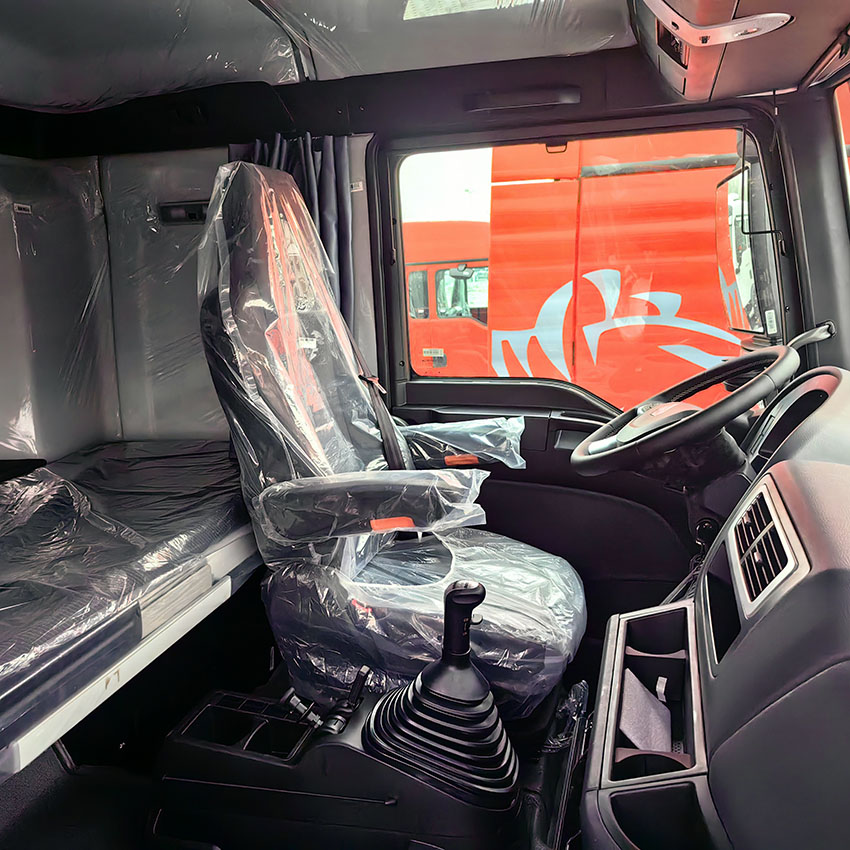

About Sinotruk Sitrak G7S 6x4 Heavy Duty Tractor Truck for Desert's cabin design

• It supports 4 azimuth camera and 360 high-definition image system to improve driving safety.

• Larger interior space

• Quiet driving environment

• Cab four-point airbag suspension

• Precise and comfortable steering control

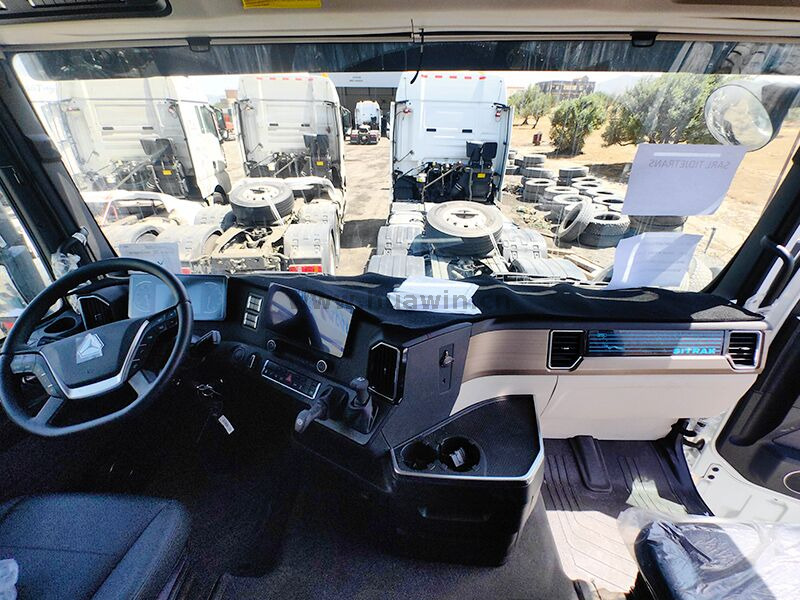

• Instrument panel design for easy operation

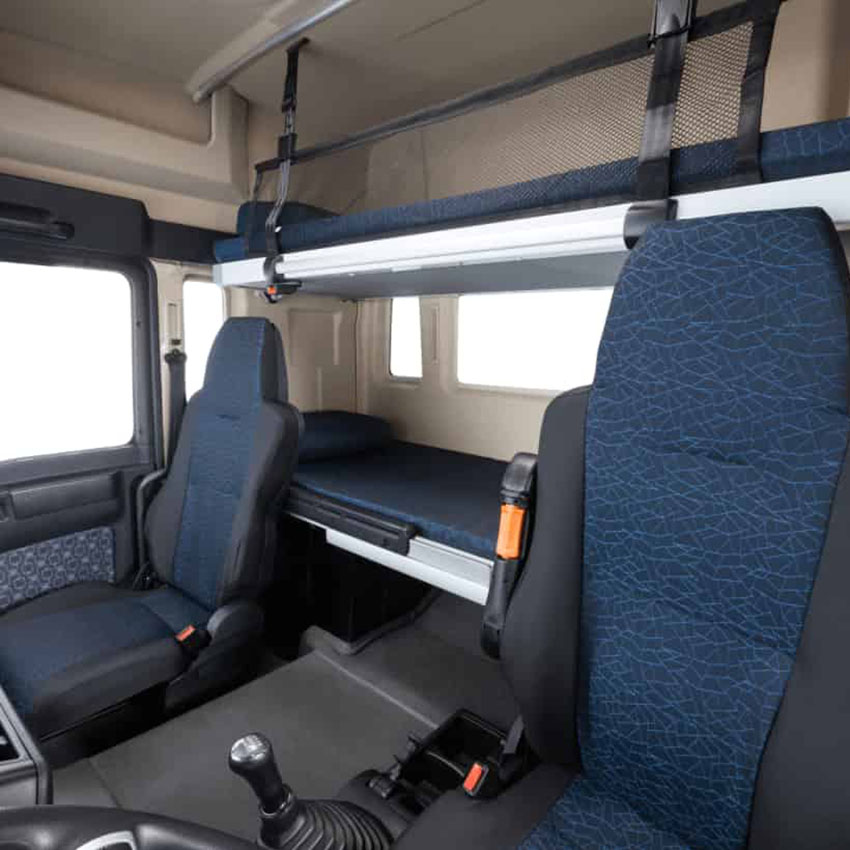

• Wide and breathable sleeping berth

• Integrated dual locking seat belt seat

And Full escort cab (safety)

• All steel cab

• Integral stamping door

• MAN patented door hinges

• Large curved design front windshield

• Three stage all-steel front bumper

Warranty

For SITRAK Tractor：powertrain (engine, transmission, axle), 36 months or 200,000 km, whichever comes first from the date of the bill of lading.

For bumper-to-bumper,12 months or 100,000 km, whichever comes first from the date of the bill of lading

For SITRAK 6X4 Tractor Truck, we also have 430h and 540hp. Like SITRAK 6X4 430HP tractor truck, SITRAK 6X4 540HP tractor truck. SITRAK 4X2 tractor truck is also optional.
