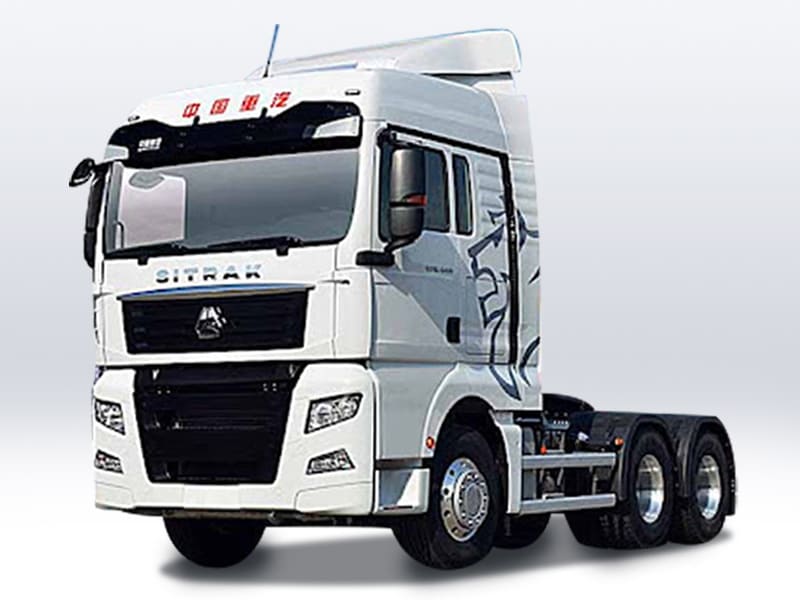

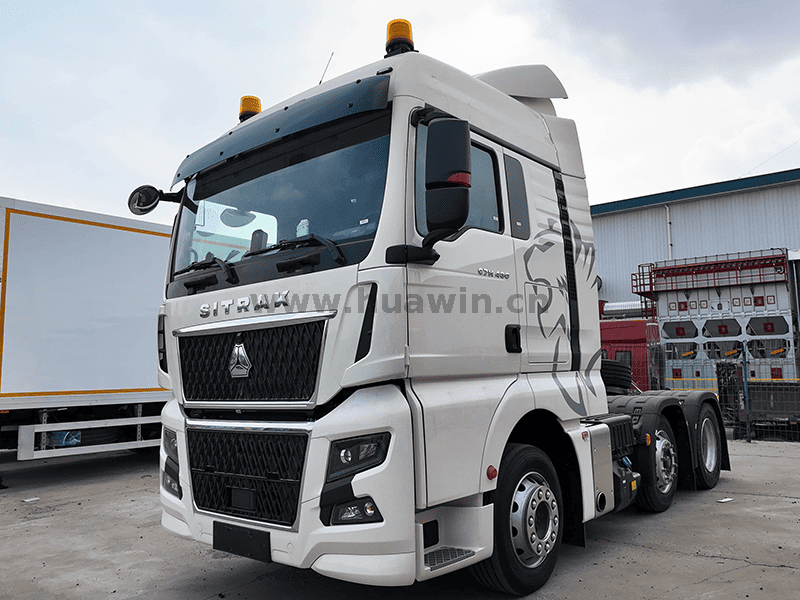

Sinotruk SITRAK C7H 480 6X4 Tractor

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The Sinotruk SITRAK C7H 480 6X4 Tractor is equipped with an MC13.39-50 engine (MAN Technology 13L engine), with a maximum output power of 480 horsepower (353 kW); maximum torque reaches 2,300 N·m, delivering powerful performance and rapid acceleration response; the engine employs high-pressure common rail and electronically controlled unit injector technology, ensuring complete fuel combustion, low fuel consumption, and minimal emissions.

Applications:

The Sinotruk SITRAK C7H 480 6X4 Tractor is well-suited for long-distance and high-speed driving due to the sufficient power provided by its 480 hp engine and the stable, reliable chassis supported by MAN technology. This combination enables efficient transportation of heavy cargoes, such as coal, ore, steel, and cement.

Interior:

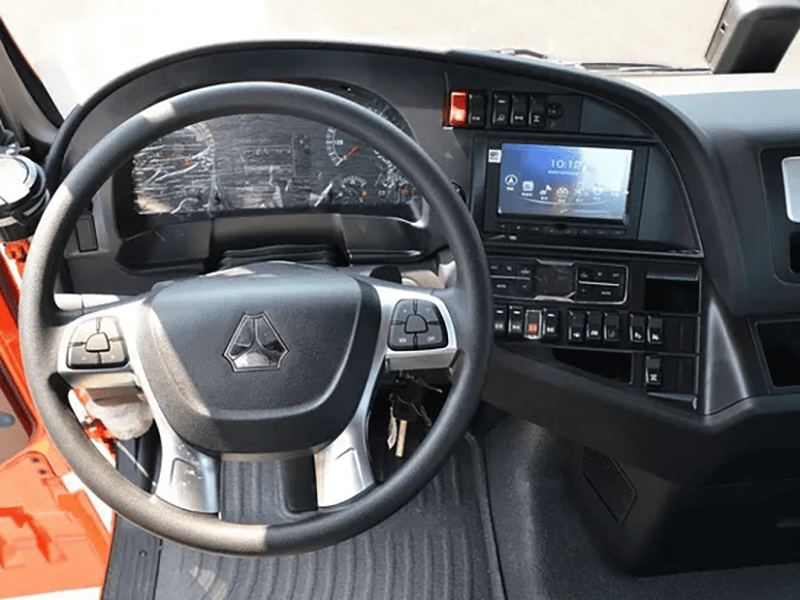

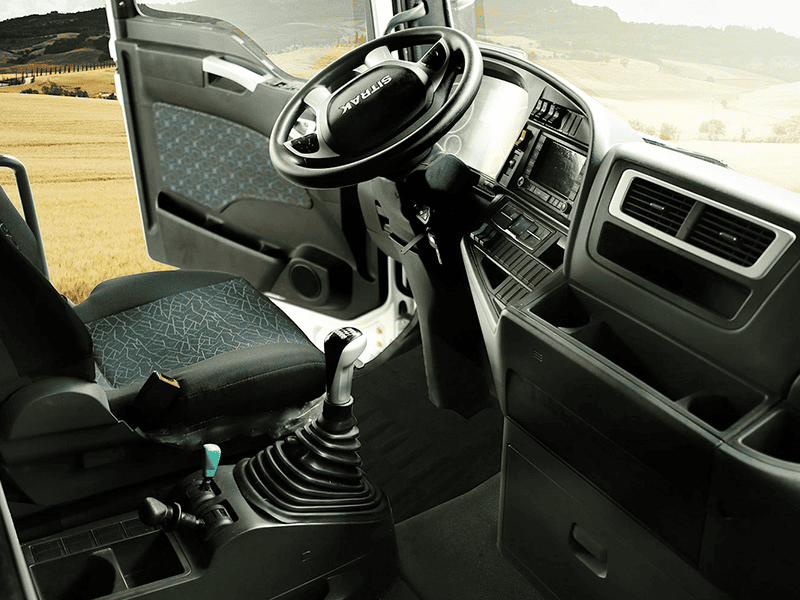

The Sinotruk SITRAK C7H 480 6X4 Tractor features a multifunctional steering wheel and clear instrument cluster for convenient operation and intuitive control. The extra-large windshield and wide-view layout provide excellent visibility, helping to improve safety. In terms of sound insulation and comfort, the vehicle is based on Sino-European technical cooperation, with excellent sound insulation systems for the entire vehicle and cab, and well-controlled driving noise.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk SITRAK C7H 480 6X4 Tractor
Basic Layout	English instrumentation, complete front lower guard, hot zone air conditioning (750g±15g), 200 watt trailer module, cab without rear window, split side guards, dual cartridge air intake system, rear towing hitch, smart pass C (no main unit or antenna), integral fenders, JOST 90# saddles
Core Configuration	Length, width and height(mm)	6895*2496*3620
	Drive Axle	MCP16ZG Self-aligning Arm Double Rear Axle(Drum)
	Weight(kg)	8600~9000
	Frame	Local triple(8+8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(9/12)
	Transmission	ZF16S2530 TO gearbox+NH/1b flange pickup
	Engine	MC13.39-50 engine
	Cab	G7-P cab
Compulsory	Tires	12.00R24 Tires(Mixed Tread/20PR)
	Ratios	5.26
	Bumper	Center bumper(all metal)
	ABS	ABS(4S/4M)
	Front Axle	VGD95 self-aligning arm front axle(drum)
Selectable	Individual overhead air-conditioning option	Individual overhead air-conditioning option
	Car Refrigerator Option	None
	Lion and Tiger Sticker Option	None
	Cab Deflector Option	None
	Driver's cab option	Classic
	Fuel tank option	860L Fuel Tank
	Exhaust system	Vertical exhaust pipe exhaust system

Tires:

The Sinotruk SITRAK C7H 480 6x4 tractor is equipped with 12.00R24 tires (mixed tread/20PR). These tires feature a mixed tread design that combines longitudinal stability with lateral traction, making them suitable for switching between highways and unpaved surfaces (such as construction sites, mining areas, and mountain roads). They also enhance stone-ejection and anti-slip capabilities, reduce stone embedding, and extend service life
