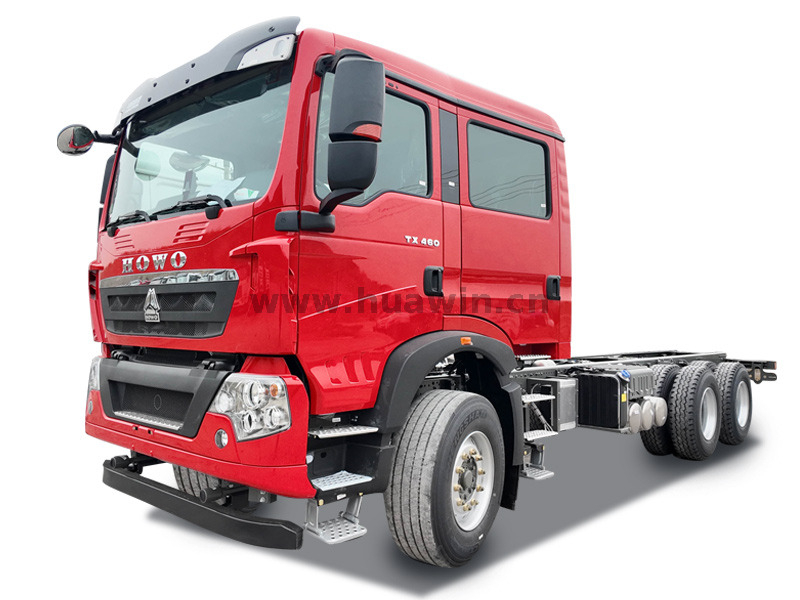

Sinotruk HOWO Chassis-TX is a chassis model in the HOWO series of China National Heavy Duty Truck Group (Sinotruk Group), which is mainly used as a platform for the retrofitting of medium- and heavy-duty commercial vehicles, such as concrete mixer trucks, dump trucks, refrigerated trucks, sprinkler trucks, and fire trucks.
Products Showcases:
● One of the biggest and best truck and trailer manufacturer in China
● 30 years of experience in Special Vehicle
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 12-24 months long guarantee time assurance
Applications:

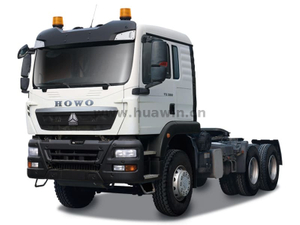

Sinotruk Howo Chassis-TX commonly used in tractor chassis (6×4, 6×2, 4×2) is suitable for long-distance highway transportation, such as express delivery, e-commerce, cold-chain logistics, and trade distribution. Match with all kinds of semi-trailers (van, refrigerated, liquid, warehouse grill, etc.).
|  |
Specification:
We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.
| Sinotruk Howo TX Chassis | ||
| Basic Configuration | English instrumentation, fire extinguisher, reversing buzzer, front and rear headlamp protectors, metal bumper protection grille (optional bull bar not fitted), anti-theft device for the battery box, and an additional level of Parker coarse filtering | |
| Core Configuration | Drive axle | MCX16ZG Dual Rear Axle (Drum) |
| Weight (kg) | 17760 | |
| Chassis | Double frame (8+8/300) | |
| Suspensions | Front and rear reinforced multi-leaf springs (11/12) | |
| Transmission | HW19710 gearbox + HW50 direct coupled extractor | |
| Engines | WD615.47 Engine | |
| Cabs | TX-F cab | |
| compulsory | Tyres | 315/80R22.5 tyre (mining block pattern/20PR) |
| Speed ratio | 5.451 | |
| Bumper | High Bumper | |
| ABS Control System | Without ABS | |
| Steering Wheel | Right-hand drive | |
| selectable | Optional cab overhead light fixture | None |
| Engine Options | EVB and 71 degree thermostat | |
| Cab Option | Classic Edition | |
| Battery option | 165AH Battery | |
| Fuel tank option | 300L Fuel Tank | |
| Air intake system options | Engineering air intake system (oil filter) | |
| Exhaust system | Standard exhaust system | |
| Wheel Option | Front and rear reinforced wheels | |
