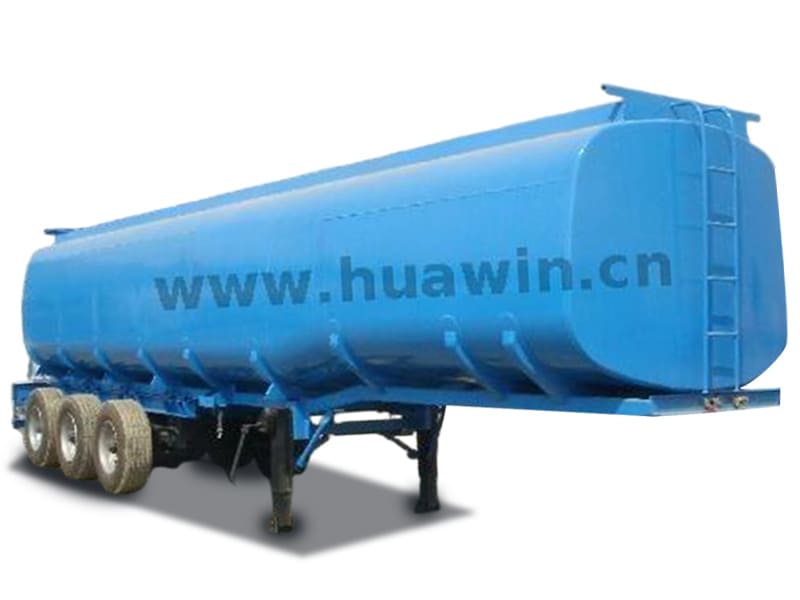

Sinotruk 40000-50000L Oil Tank Truck Fuel Tanker Semi Trailer
Specifcations:
| Gross Weight | About 60000KG | |
| Kerb Weight | About 8000KG-12800KG | |
| Loading Capacity | 30000KG-60000KG | |
| Dimensions | 12000x2500x3990mm Exact size depends on the final design | |
| Tank Body Shape | Optional Round or Suare | |
| Total Volume | 30-60CBM | |
| Tank Body Material | 5mm or 6mm/Q235 carbon steel or Aluminum alloy | |
| End Plate | 5mm or 6mm/Q235 carbon steel or Aluminum alloy | |
| Manhole Cover | Carbon steel or aluminum alloy API manhole cover | |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve | |
| Discharging Valve | Diameter is 3 inch or 4 inch | |
| Compartments | Optional 1 or 2 or 3 or 4 or more compartments | |
| Discharging Pipe | 4'' rubber hose,2 pcs,6000mm/each | |
| Axles | 13T/16T, BPW Brand | |
| Tire | 12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5 | |
| Rim | 8.5-20, 8.0-20, 9.0-22.5 | |
| Suspension | Mechanical suspension | |
| Spring Leaf | Width90 mm, Thinckness 13/16mm, 10 Layer | |
| King Pin | JOST brand 2.0 or 3.5 inch bolts type or welding type | |
| Landing Gear | Jost brand, manual operation | |
| Main Beam | Weldding design or special design I beam,connected by bolts and nuts,Q345 carbon steel material | |
| Brake Chamber | 4 double chamber with 2 single chamber | |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |
