Sinotruk 3-Axle Heavy Duty Stake Transport Van Cargo Semi Trailer

Basic Info:
Color:Optional     Logo:Can be customized as your request
Origin:China        Package:Nude
Factory price with trusted quality
Availability:
Quantity:
  • SGZ

  • Huawin

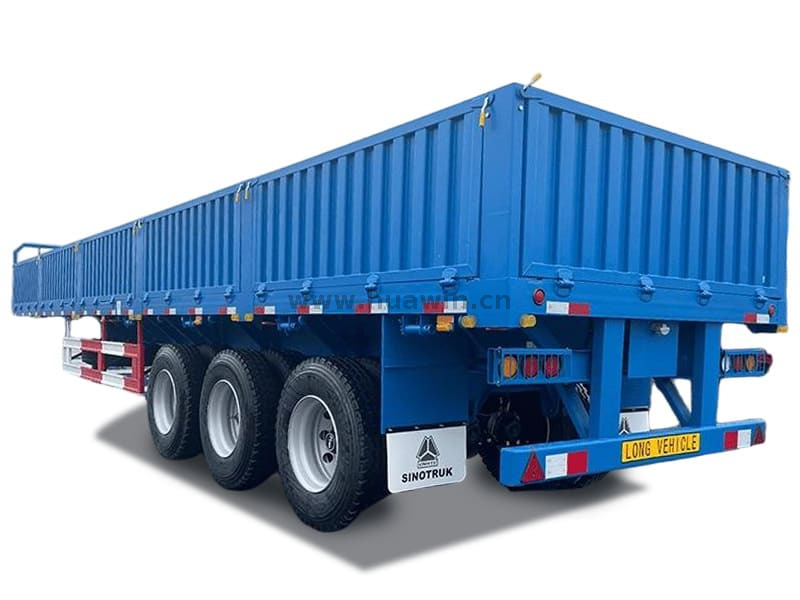

Sinotruk 3-Axle Heavy Duty Stake Transport Van Cargo Semi Trailer

3-Axle-Wallside-Semi-Trailer(2)

Specifications:

DIMENSIONS
Tare Weight 8500kg
Overall Length 12500mm
Overall Width 2500mm
Payload 45000kg
Photo for reference. Final products can be made according to exact requirements

SPECIFICATION
Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm.
Axle 3 axles of Germany design 12ton, 13 ton, 14 ton axle optional upon choice
Brand Name: BPW, L1 or FUWA-optional upon choice
Suspension Germany design heavy duty mechanical suspension or air suspension optional upon choice
Floor 3mm checker plate
Leaf Spring Doll type Leaf spring
King Pin JOST 2" Bolt-in King Pin
Landing Gear JOST Two-speed, manual operating, heavy duty landing gear
Wheel Rim 8.25-20 ,9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
Tyre 11.00R20 , 12.00R20, 11R22.5,12R22.5 tire with one spare tire optional upon choice
Twist Lock 12 nos. of ISO twist locks for 1x20ft, 2x20ft and 1x40ft container
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box with basic tools for trailer

4c4992.work shop3.packing and logistic4.service and training5.catalogue6.advantage7.faq8.warranty
