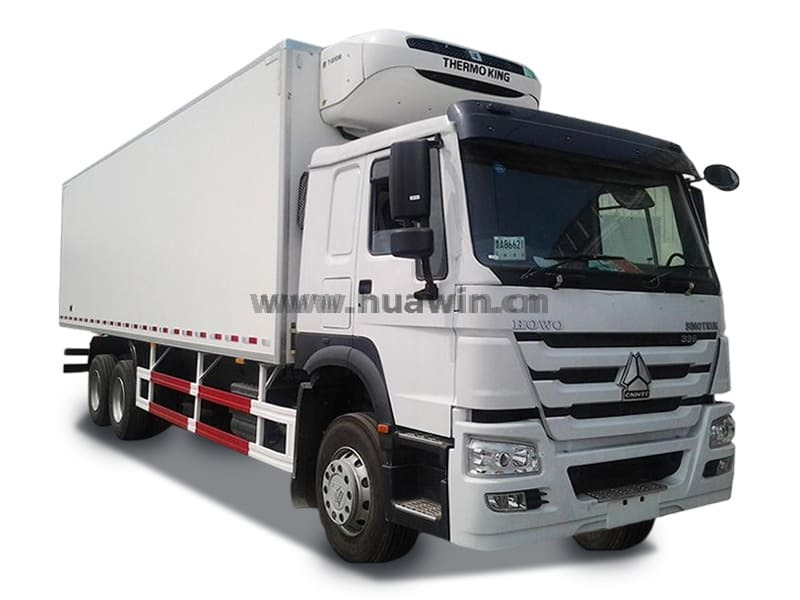

SINOTRUK HOWO 6x4 30Ton Refrigerator Reefer Truck

Refrigerator truck is for cold storage transportation
Availability:
Quantity:
  • ZZ1257M4347W
  • SINOTRUK HOWO

名称SINOTRUK HOWO 6x4 Refrigerator Truck



详情


Specifications

SINOTRUK HOWO 6x4 Refrigerator Truck

Chassis  Model

ZZ1257M4347W

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 2-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (290HP, 336HP, 420HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 1x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between  wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Refrigerator Van box

Inner Dimensions: 7100x2400x2400mm American brand: China brand Kaixue, dependent unit Lowest temperature: -18C With one rear door and one side door

Overall  Dimension

9800x2600x3900mm
