ZZ1257N4341

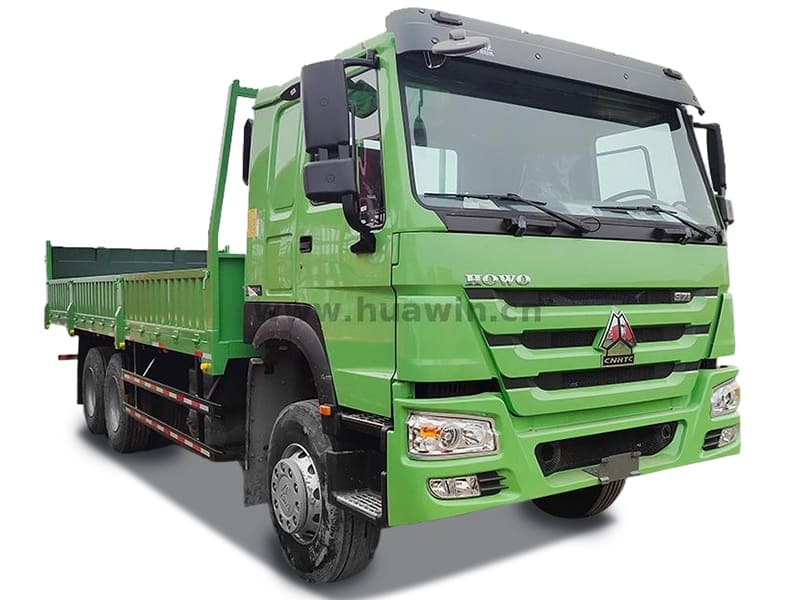

SINOTRUK HOWO 6x4 Cargo Truck
Specifications
Cabin | Driving type 6x4 LHD | |
| HW76 cab, with air condition and two beds. 70°hydraulically tillable to the front | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 10200×2500×3750 |
| Carriage Size (L x W x H) mm | 7600x2300x800 | |
| Wheel base (mm) | 4600+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 11300 |
| payload | 30000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 80 | |
Engine | Brand | Sinotruk |
| Model | WD615.69 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power (HP) | 336 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710,10 Forwards gear & 2 reverse gear | |
| Steering | ZF8098 power steering, hydraulic steering with power assistance | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Fuel tank | 400 L | |
| Tire | 12R22.5 tubeless tyre, 11 pieces including one spare | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
