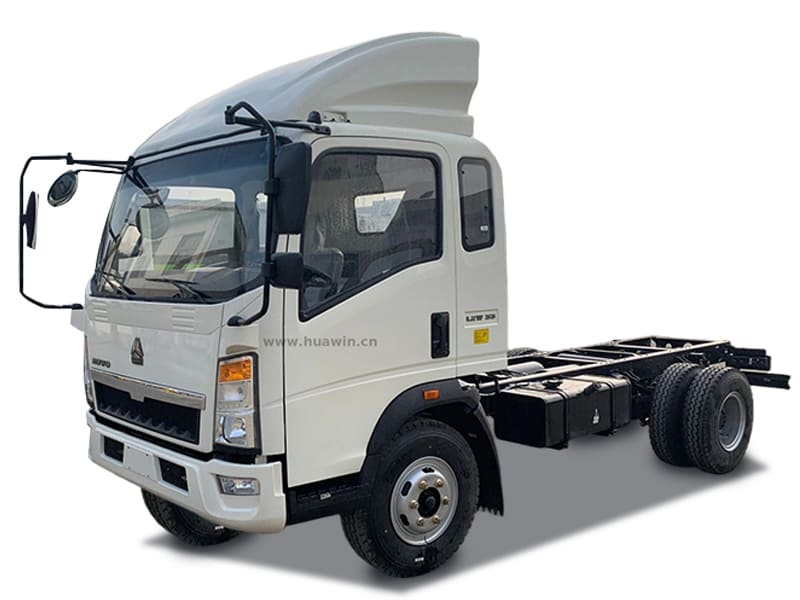

SINOTRUK HOWO 4×2 6 Wheels Light Duty 10T Cargo Chassis

Light Goods Economic Cargo Vehicles HOWO 4x2 light cargo chassis for sale. SINOTRUK HOWO cargo truck is suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal and so on.
Availability:
Quantity:
  • ZZ1107G451CD

SINOTRUK HOWO 4×2 Cargo Chassis



9


Specifications



Cabin

Driving type 4x2      LHD

chassis-10

2080 cab,   with two seats and a small bed and A/C, with air deflector,

70°hydraulically   tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall   dimensions (L x W x H)mm

7600x2500x3600

Wheel   base  (mm)

4200

Wheel   track  (front/rear) (mm)

1845/1796

Approach/Departure   angle(°)

27/20

Weight in KGS

Tare Weight

4775

payload

10000

Front axles   loading capacity

1x3200

Rear axles   loading capacity

1x8000

Max. driving speedkm/h

95

Engine

Brand

Cummins

Model

ISF3.8s4168

Type

4-stroke direct   injection ,  4-cylinder in-line with   water cooling, turbo-charging and inter-cooling

Horse Power(HP)

168

Emission   standard

Euro Ⅱ

Gearbox

DC6J65TC, 6 Forwards   gear & 1 reverse gear

Steering Gear

Power   steering, hydraulic steering with power assistance

Fuel tank (L)

120

Tire

8.25R20 tire,   7 pcs including one spare tire

Brakes

Service   brake: dual circuit compressed air brake

Parking   brake :(emergency brake): spring energy, compressed air operating on rear   wheels

Auxiliary brake: engine exhaust brake

Box size suggested

5200x2300x550mm
