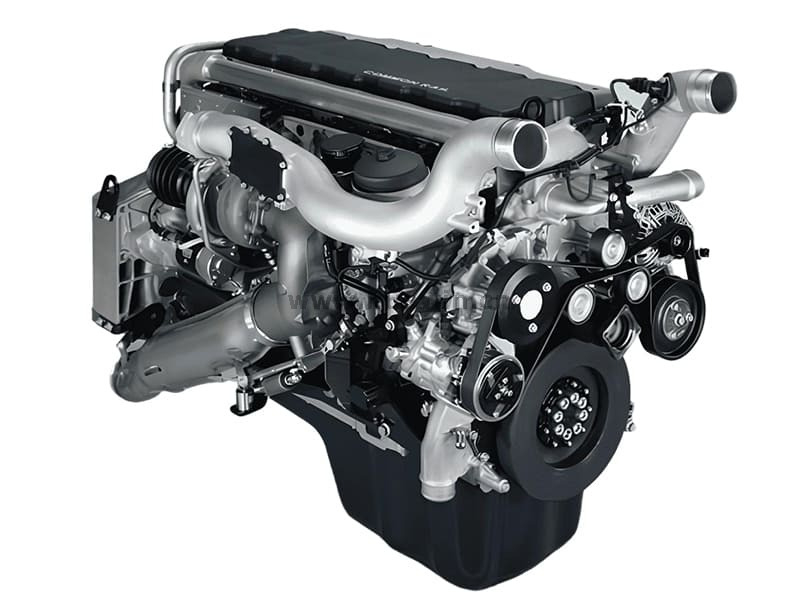

Man Engines

MAN engines are a series of high-performance diesel and natural gas engines manufactured by MAN SE (full name: Maschinenfabrik Augsburg-Nürnberg), a German company. They are widely used in commercial trucks, buses, construction machinery, ships, and industrial power systems.


Availability:



Inquire

Engines Man WP12 Man Engines

PRODUCT CATEGORY

Product Description

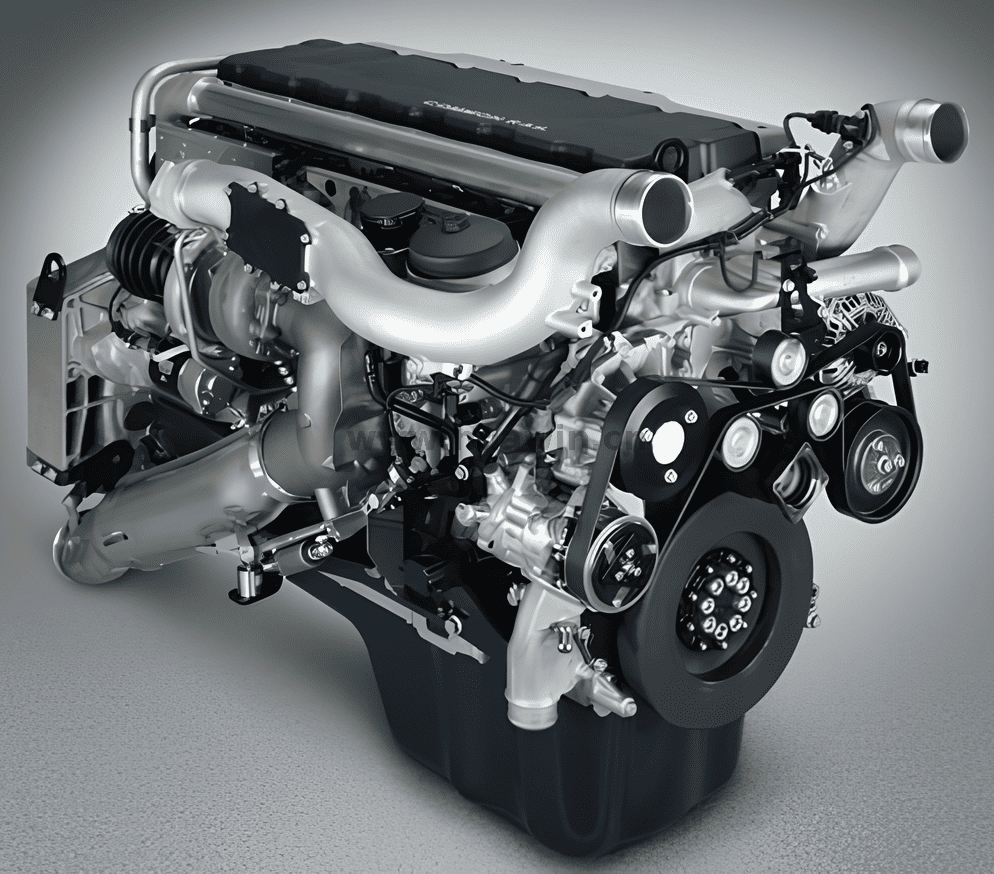

man-engines (2)

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Item	models
	MC11.43-30	MC11.39-30	MC11.35-30	MC11.31-30	MC13.54-30	MC13.48-30
Number of cylinders	6
Bore/stroke(mm)	120/155				126/166
Engine displacement(L)	10.518				12.419
Compression ratio	19:1
Firing order	1-5—3—6-2-4
Number of valves per cylinder	4
Cylinder center distance(mm)	154
Rated power kW(PS)	316(430)	287(390)	257(350)	228(310)	397(540)	353(480)
Rated speed(r/min)	1900
Maximum torque(Nm)	2100	1900	1750	1550	2500	2300
Maximum torque(r/min)	1000～1400				1050-1350	1050-1400
Minimum specific fuel consumption(g/kWh)	≤186				≤186
Maximum idling speed(r/min)	2150±50
Idle speed(r/min)	550±50				600±50
Low temperature starting(℃)	-20 (without intake preheat)/-41 (with intake preheat)
Net mass(kg)	955				975
