SGZ
Huawin

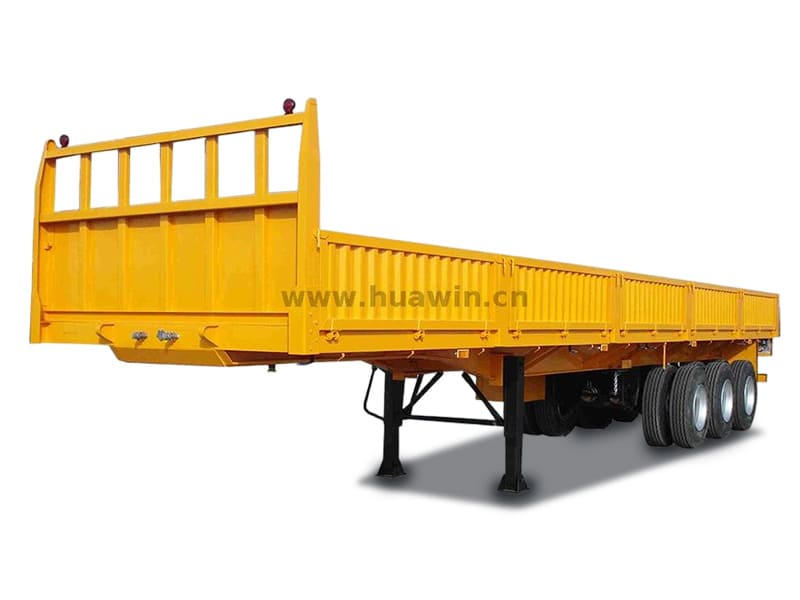

Hot Sale 3 Axle Side Wall Semi Trailer
Specifications:
| Gross Weight | About 40000KG | |
| Kerb Weight | About 7000KG | |
| Loading Capacity | 40000KG | |
| Dimensions | 13000x2500x2860mm, Exact size depends on the final design | |
| Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B steel | |
| Side Beam | 16mm or 18mm channel steel(Material is Q235 steel) | |
| Bottom Platform | 2.5mm Steel thickness of diamond plate or 3mm Steel thickness of flat plate | |
| Side Wall | Height:600mm or 800mm | |
| Axles | 13T/16T, BPW Brand | |
| Tire | 12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5 | |
| Rim | 8.5-20, 8.0-20, 9.0-22.5 | |
| Suspension | Mechanical suspension or Air suspension | |
| Spring Leaf | Width 90 mm, Thinckness 13/16mm, 10 Layer | |
| King Pin | JOST brand 2.0 or 3.5 inch bolts type or welding type | |
| Landing Gear | Jost brand, manual operation | |
| Brake Chamber | 4 double chamber | |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |
Hot Sale 3 Axle Side Wall Semi Trailer
Specifications:
| Gross Weight | About 40000KG | |
| Kerb Weight | About 7000KG | |
| Loading Capacity | 40000KG | |
| Dimensions | 13000x2500x2860mm, Exact size depends on the final design | |
| Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B steel | |
| Side Beam | 16mm or 18mm channel steel(Material is Q235 steel) | |
| Bottom Platform | 2.5mm Steel thickness of diamond plate or 3mm Steel thickness of flat plate | |
| Side Wall | Height:600mm or 800mm | |
| Axles | 13T/16T, BPW Brand | |
| Tire | 12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5 | |
| Rim | 8.5-20, 8.0-20, 9.0-22.5 | |
| Suspension | Mechanical suspension or Air suspension | |
| Spring Leaf | Width 90 mm, Thinckness 13/16mm, 10 Layer | |
| King Pin | JOST brand 2.0 or 3.5 inch bolts type or welding type | |
| Landing Gear | Jost brand, manual operation | |
| Brake Chamber | 4 double chamber | |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |
