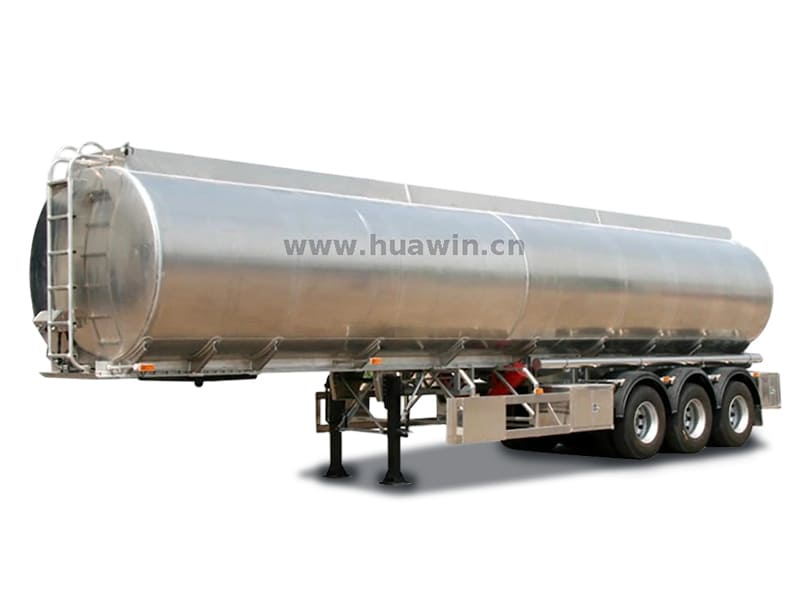

High Quality Aluminum Alloy Fuel Tank Semi Trailer
Specifications:
| Main Dimensions | |||
| Overall Length | 11700mm | ||
| Overall Height | 3950mm | ||
| Overall Width | 2550mm | ||
| Tare Weight | 6950KGS | ||
| Tanker Volume | 42000 Liters | ||
| Photo only for reference, final product can be made according to exact requirements | |||
| Tank Body | |||
| Shape | Mono block Cylinder, 6 compartments | ||
| Total Volume(m3) | 42000 Liters | ||
| Tanker Body Material | 5.5mm / Aluminum plate 5182 | ||
| Compartment plate | 5.5mm / Aluminum plate 5182 | ||
| End plate | 6mm / Aluminum plate 5182 | ||
| Manhole cover | Aluminum alloy API manhole cover, ∮500mm, 6 sets with 6 breather valves | ||
| Bottom Valve | 6 sets of Aluminum API Pneumatic Bottom Valve | ||
| Discharging valve | 6 sets ∮100mm discharging valves | ||
| Discharging Pipe | 4"rubber hose, 2 pcs | ||
| Chassis | |||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation. | ||
| Axle | 3 axlesX13T | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear, E100 | ||
| King Pin | JOST brand 2" bolt-in king pin | ||
| Suspension | Air suspension | ||
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks. | ||
| Tire | 385/65R22.5 tire with one spare tire, total 7 pieces, single tire | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | With standard tool box | ||
| Movable guardrail | With folding rails | ||
| Vapour recovery | With Vapour recovery | ||
| ABS | With ABS | ||
| Anti-overflow device | Optional | ||
High Quality Aluminum Alloy Fuel Tank Semi Trailer
Specifications:
| Main Dimensions | |||
| Overall Length | 11700mm | ||
| Overall Height | 3950mm | ||
| Overall Width | 2550mm | ||
| Tare Weight | 6950KGS | ||
| Tanker Volume | 42000 Liters | ||
| Photo only for reference, final product can be made according to exact requirements | |||
| Tank Body | |||
| Shape | Mono block Cylinder, 6 compartments | ||
| Total Volume(m3) | 42000 Liters | ||
| Tanker Body Material | 5.5mm / Aluminum plate 5182 | ||
| Compartment plate | 5.5mm / Aluminum plate 5182 | ||
| End plate | 6mm / Aluminum plate 5182 | ||
| Manhole cover | Aluminum alloy API manhole cover, ∮500mm, 6 sets with 6 breather valves | ||
| Bottom Valve | 6 sets of Aluminum API Pneumatic Bottom Valve | ||
| Discharging valve | 6 sets ∮100mm discharging valves | ||
| Discharging Pipe | 4"rubber hose, 2 pcs | ||
| Chassis | |||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation. | ||
| Axle | 3 axlesX13T | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear, E100 | ||
| King Pin | JOST brand 2" bolt-in king pin | ||
| Suspension | Air suspension | ||
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks. | ||
| Tire | 385/65R22.5 tire with one spare tire, total 7 pieces, single tire | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | With standard tool box | ||
| Movable guardrail | With folding rails | ||
| Vapour recovery | With Vapour recovery | ||
| ABS | With ABS | ||
| Anti-overflow device | Optional | ||
