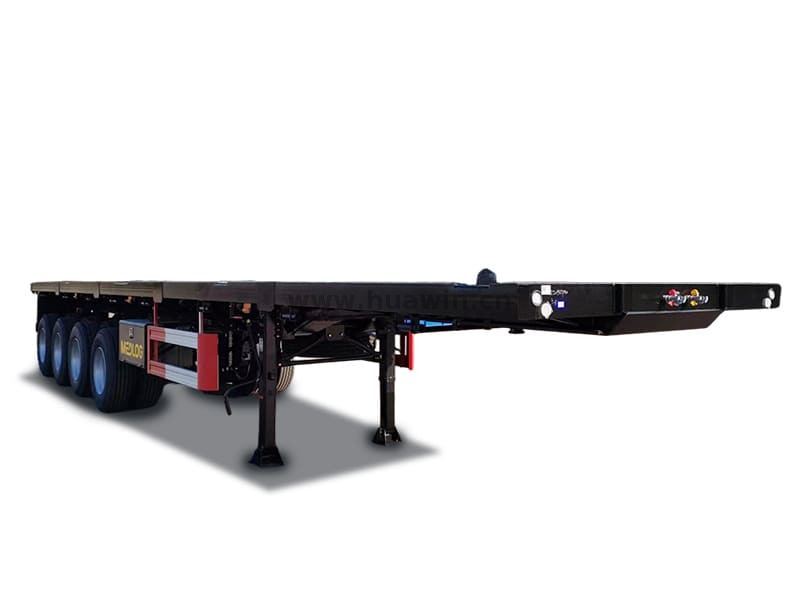

40FT 4 Axle Flatbed Semi Trailer is a common cargo transportation trailer, which is widely used in container transportation, steel, machinery and equipment, construction materials and other bulk cargo transportation by road. This model is popular in the logistics industry because of its high carrying capacity, simple structure and strong adaptability.
Axle: 4 Axles
Availability: | |
---|---|
● One of the biggest and best truck and trailer manufacturer in China
● 30 years of experience in Special Vehicle
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 12-24 months long guarantee time assurance
Features:
4 Axle 40 Foot Flatbed Semi-Trailer (We use 13-ton or 16-ton FUWA brand axles); the chassis is welded using high-strength low-alloy steel, ensuring a sturdy structure and excellent torsional resistance; it supports multi-leaf steel spring suspension or air suspension, making it ideal for transporting long, narrow goods such as steel, steel coils, timber, and cement boards, as well as bagged cement, machinery, and large-scale cargo.
4-Axle 40-Foot Flatbed Semi-Trailer equipped with a standard 90# tow hitch, compatible with various tractor units; features 12–14 container locks (twist locks) capable of securing a single 40-foot container or two 20-foot containers; tires are 12R22.5 vacuum tires, offering excellent load-bearing capacity and durability. Safety and durability: The braking system is a dual-circuit air brake system with standard ABS anti-lock braking system; the electrical system uses LED taillights and a standard 7-pin connector, ensuring stable and reliable performance.
Applications:
40 FT 4 Axle Flatbed Semi-Trailer common uses are, Container TransportationStandard container sizes are 20 feet and 40 feet, the flatbed truck can load a 40 feet or two 20 feet containers.2.Steel Transportation, including steel plate, steel coil, steel pipe, etc., because the flatbed design is easy to load and fix. It is usually used for medium and long distance transportation between ports, freight stations and logistics parks. Steel transportation includes steel plates, steel coils, steel pipes, etc. Because the flatbed design is easy to load and unload and fix. It can be used with reinforcement equipments such as bundling belt and steel wire rope to ensure the transportation safety.
![]() | ![]() |
Performance advantages:
The 4-axle 40-foot flatbed semi-trailer has a strong load-bearing capacity: it can carry more than 30 tons, and some heavy-duty versions can carry up to 45 tons. It is suitable for container transport, bulk cargo transport, and large equipment transport. Simultaneous loading and unloading: the design has no guardrails, allowing for flexible loading and unloading, and is suitable for use with forklifts or cranes.
![]() | ![]() |
Specification:
We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles, Semi-Trailer. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.
4 Axles 40FT Flatbed Semi Trailer | |||
Tare Weight | 7700kg | ||
Overall Length | 12400mm | ||
Overall Width | 2480mm | ||
Payload | 45000kg | ||
SPECIFICATIONS | |||
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
Axle | 4 axles | ||
BPW/ FUWA/HJ/L1 Brand 12 ton | |||
Suspension | Heavy duty mechanical suspension | ||
Floor | 3mm checker plate | ||
Leaf Spring | 13 piece Leaf spring | ||
King Pin | JOST brand 2” Bolt-in King Pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel Rim | 9.0-22.5 wheel rim 13 pieces | ||
Tire | 12R22.5 tire with one spare tire. 13 pieces | ||
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | ||
Spare Tire | One set of spare tire including a carrier | ||
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box |
Tires:
The 4-Axle 40-Foot Flatbed Semi-Trailer is equipped with 12R22.5 tires, including one spare tire. These tires feature a robust steel-reinforced structure, ensuring exceptional load-bearing capacity and durability. The sturdy tire carcass is designed to withstand high-load operations, making them ideal for long-term heavy-duty transportation. Excellent wear resistance is achieved through a rational tread design and wear-resistant rubber compound, making it suitable for long-distance high-speed or complex mining site road conditions, thereby extending service life. The radial structure reduces heat generation, ensuring safer operation and minimizing the risk of tire blowouts, thus providing excellent heat dissipation properties.
![]() | ![]() | ![]() |
