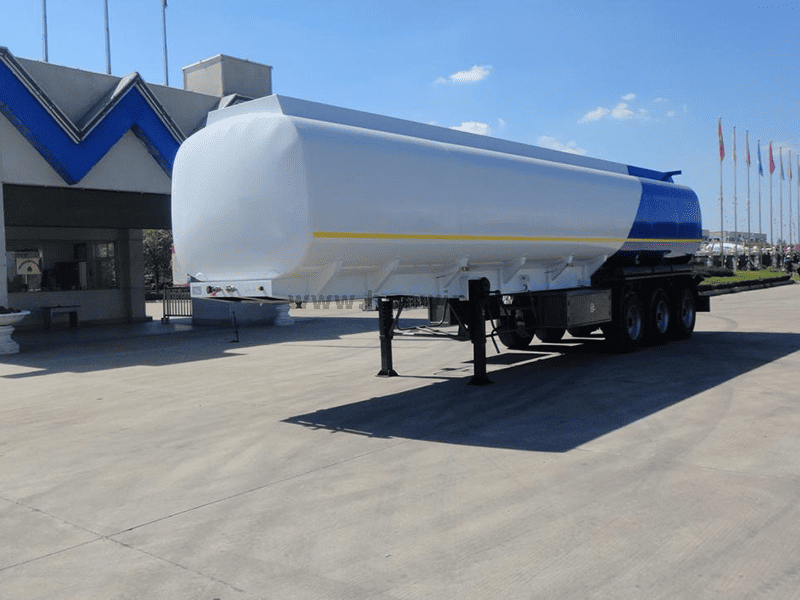

3-Axle Carbon Steel Fuel Tanker Semi Trailer

● 30 years of experience in Special Vehicle

● Various options for container size and load capacity

● Well-known brand hydraulic cylinders and pumps

● Bidirectional compression technology, high garbage compression ratio

● Corrosion-resistant materials and high sealing performance

Applications:

● Transportation of Fuel: Primarily used for transporting gasoline, diesel, and other petroleum products.

● Bulk Transportation: Carbon steel tankers are commonly seen in long-haul transportation, especially for large quantities of fuel over land.

● Oil & Gas Industry: Used extensively in the oil and gas sector for moving fuel between storage facilities, refineries, and distribution points.

● Military & Emergency Use: Due to their robustness, these tankers are often used in military or emergency situations where large quantities of fuel are needed in remote areas.

Oil tank structure sketch：

1. tank    2. coaming  3. oil baffle plate    4. front manhole    5. middle fence plate    6. rear manhole    7. horizontal oil baffle plate    8. ladder    9. riding bolt seat      10. tank foot   11. platform supporting feet   12. location plate   13. fuel discharge outlet

The drawing of refueling：

1. oil tank  2. upper manhole   3. oil pump   4. four position three-way ball valve   5. front straight ball valve   6. rear straight ball valve   7. four position three-way valve  8. strainer  9. rear auto-flow ball valve

3-Axle Carbon Steel Fuel Tanker Semi Trailer specifications：

3 Axle Fuel Tanker Semi Trailer
Parameters	Overall Length	11240mm
	Overall Height	2800mm
	Tare Weight	11500KGS
Barrel	Shape	Mono block Cylinder
	Total Volume	38CBM
	Tanker Body Material	6mm steel / Q235 high tensile strength steel
	End plate	6mm steel sheet/Q235 high tensile strength steel
	Manhole cover	Aluminum alloy API manhole cover, ∮500mm ,2 sets with 2 breather valve
Running System	Axle+suspension	BPW/ FUWA Brand, 13T
	Tire	315/80R22.5 tubeless, 13pcs
	ABS system	WABCO ABS system
	Brake System	T30/30+T30 Spring brake chamber; 45L air tanks
	Landing Gear	Germany JOST brand
	Kingpin	JOST brand 2” bolt-in king pin
	Frame Material	High tensile strength steel, welded construction
Pipeline & Accessories	Manhole	5 sets
	Bottom Valve	2 sets of Aluminum API Pneumatic Bottom Valve
	Discharging valve	2 sets ∮100mm discharging valves
	Discharging Pipe	4”rubber hose, 2 pcs

Feature:

1.Heavy-duty construction: Carbon steel is robust and can withstand the tough road conditions common in many parts of Africa, such as poorly maintained or unpaved roads. Reinforced frames to handle the harsh transportation environments and long distances, especially in rural or isolated areas.

2.Large Fuel Capacity: Africa often requires large-capacity tankers for fuel transportation over long distances. Carbon steel fuel tankers can be made to accommodate volumes ranging from a few thousand liters to tens of thousands..

3. Cost-Effectiveness: Carbon steel is more cost-effective compared to materials like aluminum or stainless steel, which makes it a more accessible option for many African companies and businesses working with tight budgets.

4.Fuel Efficiency: Carbon steel allows for the construction of robust tankers that are still relatively lightweight. Streamlining the tanker body can reduce drag and increase fuel efficiency, which is beneficial for long-distance fuel transport.

5.Easy Maintenance and Repair: Simple, robust and a straightforward design that can be easily repaired locally by mechanics with minimal training, and where spare parts are widely available, will be ideal for many African regions.
