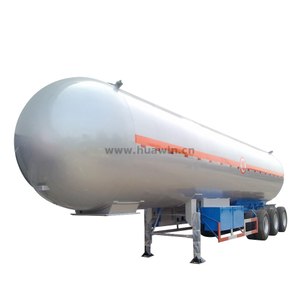

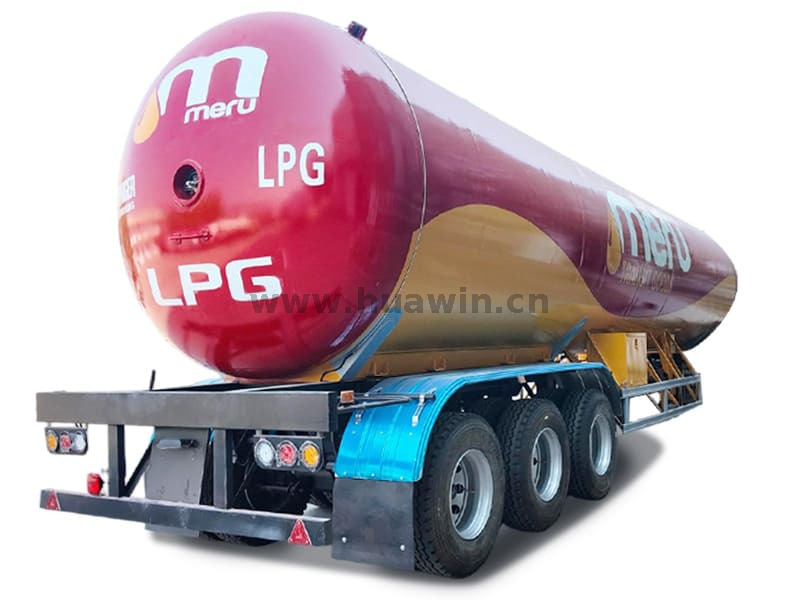

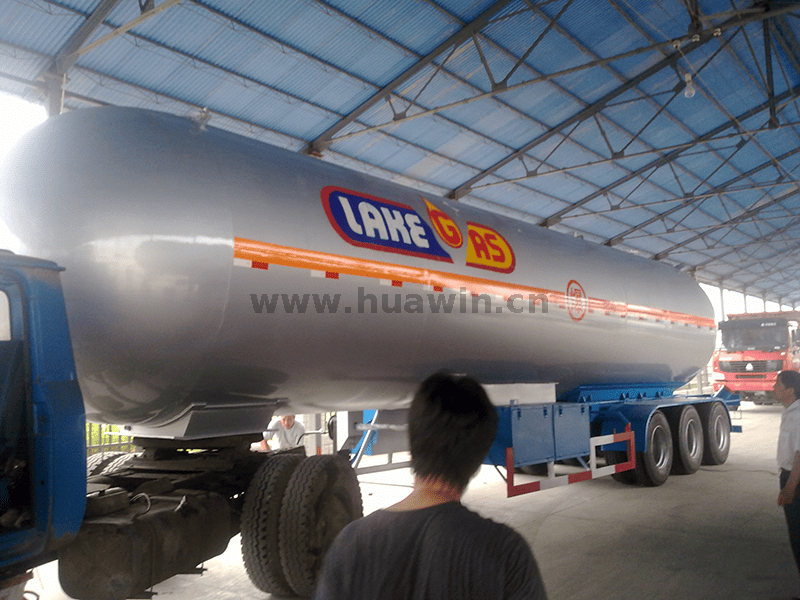

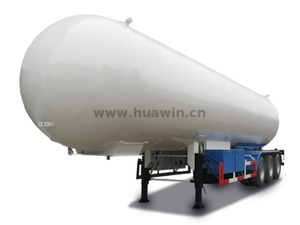

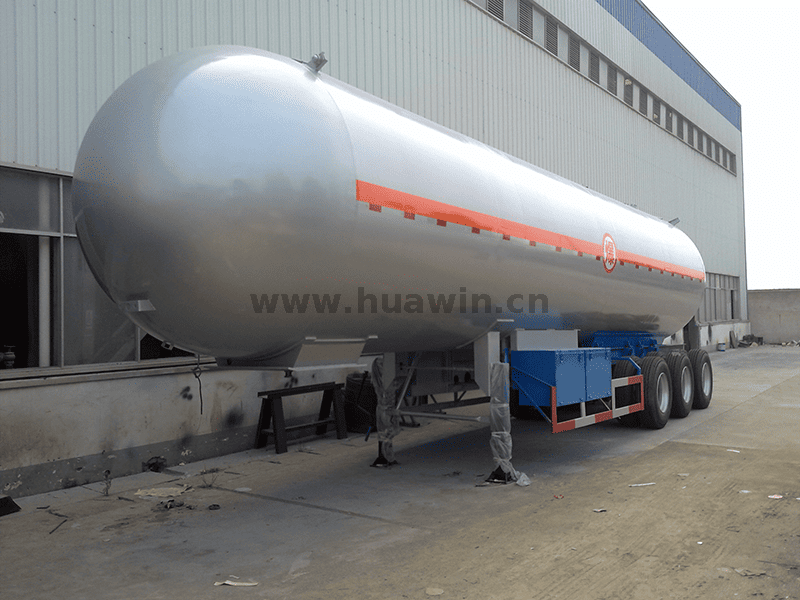

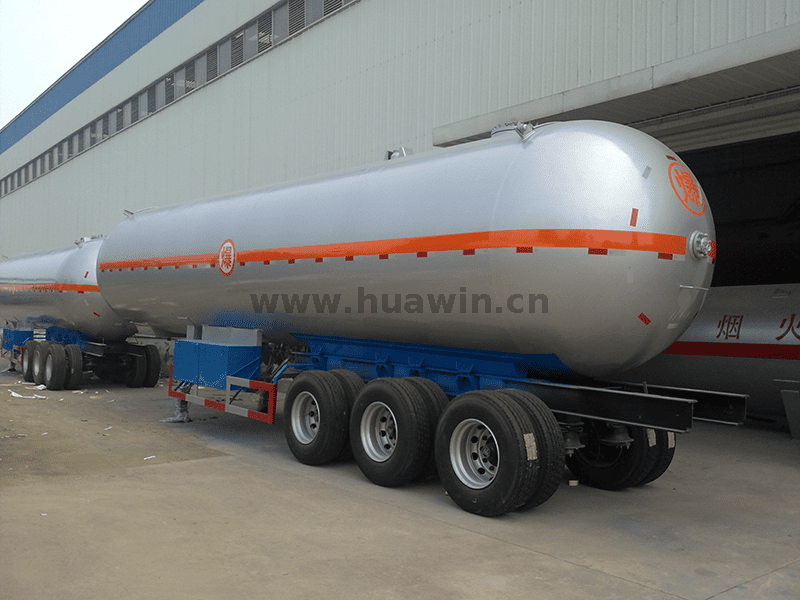

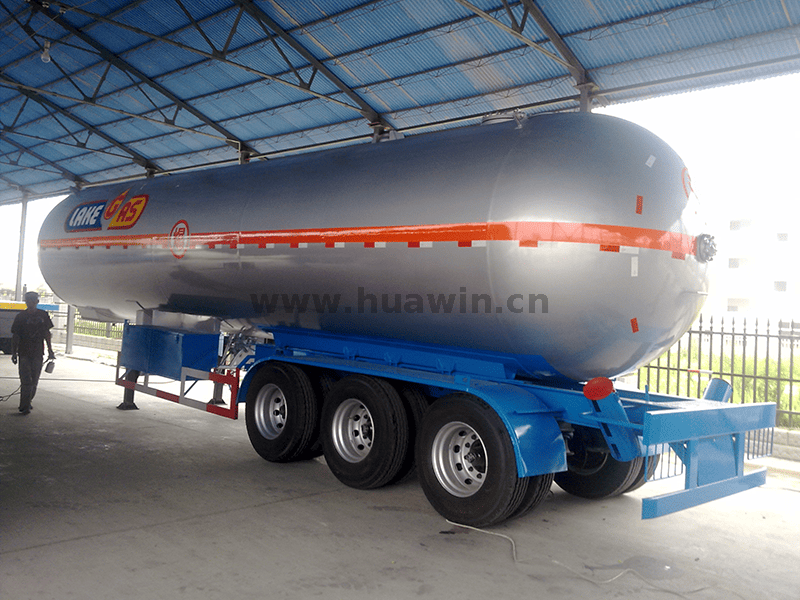

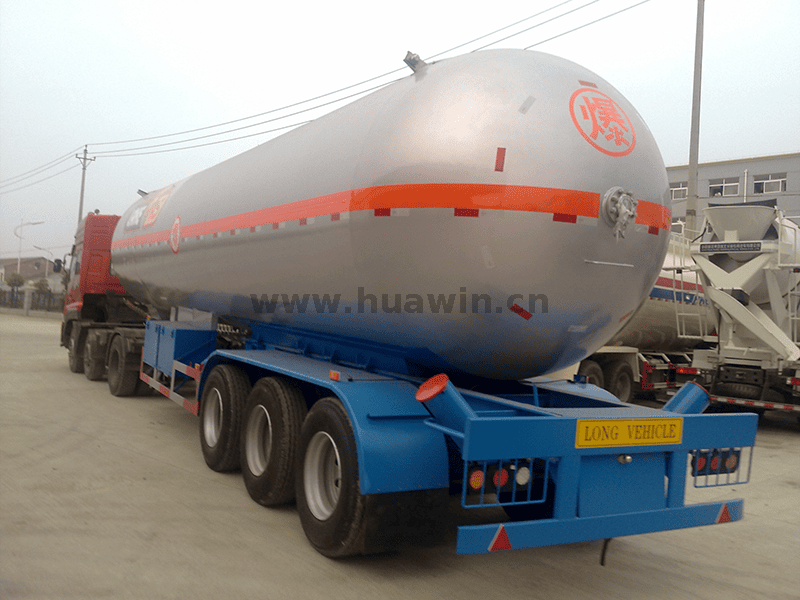

3 Axles LPG 50cbm Tanker Semi Trailer

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

3-Axle LPG 50CBM Tanker Semi-Trailer features a large tank capacity, capable of carrying significant volumes of liquefied petroleum gas (LPG), such as propane, butane, or their mixtures. It is ideal for medium to long-distance bulk transportation, significantly enhancing logistics efficiency. The tank is constructed using high-quality pressure vessel steel such as Q345R or 16MnDR, ensuring exceptional structural strength.

3-Axle LPG 50CBM Tanker Semi-Trailer equipped with high-load-bearing axles from FUWA or BPW brands, offering strong load-bearing capacity. Optional air suspension or leaf spring suspension is available to adapt to complex road conditions and ensure smoother operation. Safety features include emergency shut-off valves, safety relief valves, pressure gauges, liquid level indicators, and anti-static drag chains.

Applications:

3-Axle LPG 50CBM Tanker Semi-Trailer is commonly used for long-distance transportation of liquefied petroleum gas (LPG), primarily for bulk road transportation of propane, butane, or their mixed gases. It is suitable for transportation tasks between energy distribution companies, refueling stations, and industrial users. It can transport gas from refineries and gas source plants to gas stations or LPG distributors across various regions.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles, Semi-Trailer. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

3-Axle LPG 50CBM Tanker Semi-Trailer
Design Pressure	1.61 MPa
Design Temperature	-20/50℃
Environmental Temperature	-20~50℃
Working Temperature	-20~50℃
MAWP	≤1.61 MPa
Hydrotest Pressure	2.1 MPa
Air Leakage Test Pressure	1.61MPa
Shell Material	Q370R
Head Material	Q370R
Corrosion Allowance	1 mm
Joint Efficiency	1
Head Type	Double Spherical Heads
Heat Treatment	Treated as a Whole in a Furnace(PWHT)

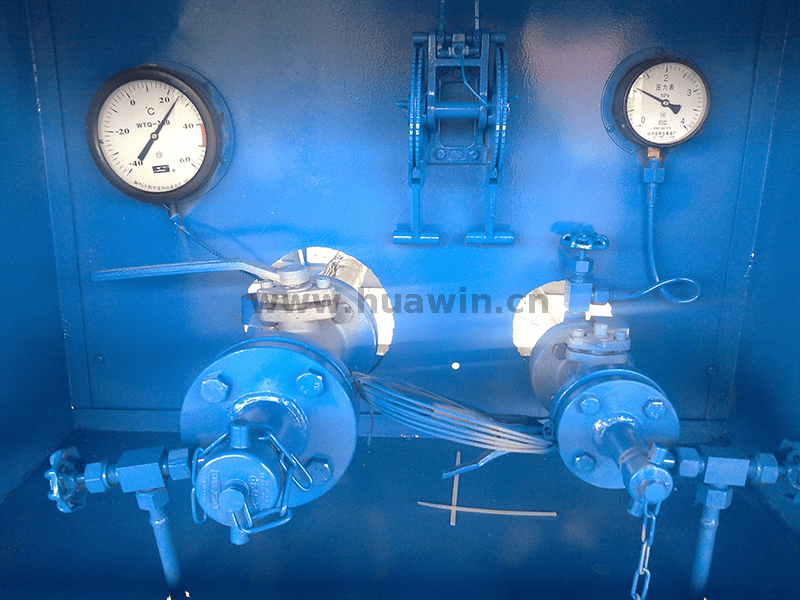

Valve box	Stainless steel
Tool box	Stainless steel
Mudguard	Aluminum alloy mudguard with mudflap.
Fire extinguisher	8kg
King pin	JOST Brand, 2” or 3.5” are optional
Landing gears	JOST brand separate winding, model A400C
Suspension	Chinese Spring suspension
ABS	Wabco brand ABS
Rim	Steel rim
Axle	13ton FUWA brand Axles
Tire	Thirteen(13) "Double Coin" brand 12R22.5 tubeless tires(one spare tire)
Brake	Drum type
Light	LED lamps; 12V voltage or 24V voltage are optional.

Advantages of the tank：

High-strength structure, safe and reliable:

The tank body is made of Q345R, 16MnDR, or equivalent pressure vessel-grade steel, which has high tensile strength and good ductility.

The welding process uses automatic circumferential welding + X-ray non-destructive testing to ensure welding strength and sealing.

Excellent corrosion resistance:

The interior can be treated with an anti-corrosion coating according to the characteristics of the medium, and is resistant to corrosion from impurities or trace amounts of sulfur in liquefied gas.

The exterior is sprayed with high-performance anti-rust primer + anti-UV topcoat, suitable for use in coastal, high-humidity, or high-temperature areas.
